Pick and place robotic system for product handling

Enhance your production line with high-speed, flexible pick and place robots that seamlessly handle diverse products from fragile pastries to sensitive pharmaceuticals, ensuring precise sorting and quality control while optimizing operational efficiency.

Handles, Sorts, and Packs Diverse Products

Schubert’s F4, T4, and T5 Pick and Place Robots deliver unmatched flexibility and precision in handling diverse products across multiple industries. Designed for seamless high-speed operations, these robots integrate effortlessly into your existing production line to enhance efficiency and adaptability.

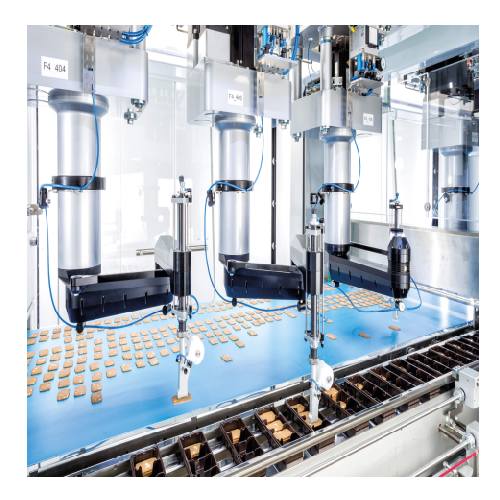

The F4-Roboter utilizes a Scara principle, adept at rapid sorting and packing motions, achieving accelerations of up to 10 G and speeds up to 4.7 meters per second. Its interchangeable tools provide versatility for handling everything from delicate pastries to robust technical components.

The T4 and T5 variants, based on the Delta robot configuration, offer compact, high-density performance, with the T5’s additional fifth axis allowing precise manipulation for vertical placements. All models support up to six robots in one frame, maximizing throughput and minimizing floor space. The advanced vision system ensures only quality products are processed, reducing waste and ensuring reliability.

Ideal for food, pharmaceuticals, cosmetics, and more, Schubert’s robots are customizable, scalable, and comply with industry standards, offering solutions tailored to your specific requirements. Their OptiFlex toolset, facilitated by quick-change capabilities, ensures minimal downtime and continuous operation across various applications.

Benefits

  • Enhances productivity with high-speed operation and precise positioning.
  • Adapts to varying product sizes and types, ensuring line flexibility.
  • Minimizes space requirements with compact multi-robot setups.
  • Integrates seamlessly into existing lines for quick start-up and reduced implementation costs.
  • Ensures product integrity through customizable handling tools and advanced vision systems.

General


Applications
Lebensmittel,Technische artikel,Snacks,Backwaren,Kosmetik,Pharma,Getränke,Süßwaren,Molkereiprodukte,Tiernahrung
End products
Tablettenblister,Pralinen,Technische dichtungen,Getränkedosen,Tiefkühl-pasta,Gesichtspflegecremes,Katzenfutter,Feines gebäck,Kekse
Steps before
Product preparation,Material staging,Quality inspection,Sorting,Loading onto conveyor
Steps after
Product packaging,Quality control,Palletizing,Distribution,Storage
Input ingredients
Kekse,Feines Gebäck,Pralinen,Backwaren,Tiefkühl-Pasta,Pharma,Kosmetik,verschiedene Produkte,hochempfindliche Produkte
Output ingredients
Karton-Trays,Einzelband,Kette,Tray
Market info
Schubert Group is renowned for its innovative packaging technology solutions, specializing in modular, highly flexible packaging machines for various industries, ensuring efficiency and precision in production lines.

Technical Specifications


Speed
Up to 4.7 m/s
Acceleration
10 G
Robotic Axes
4 (F4,T4) / 5 (T5)
Working Area
Large (for F4) / Compact (for T4,T5)
Product Handling Capability
Flexible with interchangeable tools
Tool Change Process
Plug-and-Play
Vision System
3D Product Quality Monitoring
Material Compatibility
Plastic and Cardboard Trays

Operating Characteristics


Working mechanism
Scara and Delta kinematic principles
Flexibility in product handling
High,with interchangeable tools
Automation level
PLC / Scalable
Changeover time
Quick tool swapping
Energy efficiency
Optimized through variable robot types
Product inspection
3D vision system
Batch vs. continuous operation
Continuous with scalable configurations

Product type Characteristics


Product type
Kosmetik,Pharma,Lebensmittel
Product state
Unpackaged,pre-packaged

Physical Characteristics


Discharge method
Tray / Kette / Einzelband

Custom Options


Tool Changeover System
Plug-and-Play
Robotic Arm Types
F4 / T4 / T5 Robotic Arms
Integration with Vision System
3D Vision Monitoring
Product Tray Compatibility
Plastic / Carton Trays
Modular Layout
Variable Machine Layout
Robot Configuration
Scalable Robot Teams
3D Printing Capability
3D Customizable Tools
Material Handling Options
Grippers / Suction Cups
Controlled via Software
Automated Tool Configuration
Operation Flexibility
Laydown into trays / bands
