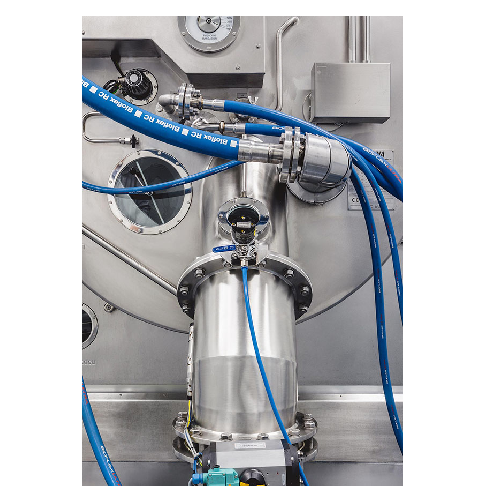

Pharmaceutical horizontal batch centrifuge
Ensure unparalleled product purity and operational efficiency with a centrifuge designed to optimize solid-liquid separation for high-value processing.
Filters and Separates Slurries with Precision
The RINA 700 Pharma from Riera Nadeu is a horizontal batch peeler centrifuge designed for demanding solid-liquid separation in the pharmaceutical, biotech, and chemical industries. It features a high-speed rotating system that efficiently separates slurries, ensuring high-purity end-products such as active pharmaceutical ingredients and vaccine components. With a robust design offering loading capacities from 4 to 550 dm³, this centrifuge adapts to various production needs. Ideal for GMP-compliant environments, it integrates seamlessly through-the-wall in clean rooms, preserving product and operator safety. Its versatile programming allows for different processing recipes, and its construction offers a range of materials, from basic steel to high-grade alloys. The machine also supports operations in explosive environments with appropriate certifications and features easy maintenance with CIP systems to minimize downtime and maintain hygiene standards.
Benefits
- Enhances product purity by ensuring precise and efficient solid-liquid separation.
- Increases operational flexibility with customizable processing recipes and configurations.
- Supports regulatory compliance with GMP standards and safe clean room integration.
- Minimizes manual intervention with automatic discharge and programmable controls.
- Adapts to harsh environments with material options suited for corrosion resistance.
- Applications
- Chemicals, Food, Upcycling, Gas, Oil, Biotech, Mining, Pharmaceuticals
- End products
- Gold concentrates, Active pharmaceutical ingredients, Biodiesel feedstock, Crude oil additives, Herbal extracts, Chemical catalysts, Vaccine components, Whey protein isolates
- Steps before
- Purification, Emulsification, Grinding
- Steps after
- Sterilization, Packing, Drying
- Input ingredients
- slurries, solid-liquid mixtures
- Output ingredients
- separated solids, filtered liquids
- Market info
- Riera Nadeu is known for its expertise in manufacturing centrifuges and drying equipment, particularly for industrial applications. They are reputed for high-quality, customized, engineered-to-order solutions in separation technologies for various industries.
- Speed
- 1600-2000 rpm
- Capacity
- 4 to 550 dm3
- Filtering Area
- 0.083-3.08 m²
- Automation
- Automatic discharge
- G Factor
- 1000 to 2000 G
- Basket Size
- 350 mm to 1400 mm diameter
- Basket Height
- 250 mm to 700 mm
- Cake Thickness
- 52 mm to 210 mm
- Cake Volume Capacity
- 45 to 690 Liters
- Cake Weight Capacity
- 450 to 3900 kg
- Operation Mode
- Batch process
- Technical Area Separation
- Yes (clean room integration)
- Material
- Steel to high-grade alloy
- Batch vs. continuous operation
- Batch
- Automation level
- PLC controlled
- Cleaning method
- Through-the-wall integration for clean room
- Versatility
- Multiple configurations and optional items
- Safety
- Explosive hazardous area certification/adaptation
- Abrasion resistance
- Suitable for high G forces
- Biological compatibility
- Pharmaceutical grade materials
- Cleanability
- Designed for easy cleaning and CIP
- Corrosive resistance (e.g. acids)
- Various materials, including high-grade alloys
- Machine footprint
- 800x1300x1100 mm to 2450x3640x2980 mm
- Basket diameter
- 350 mm to 1400 mm
- Basket height
- 250 mm to 700 mm
- Max cake volume capacity
- 450 L
- Max cake weight capacity
- 490 kg
- Filtering area
- 0.83 m² to 3.08 m²
- Discharge method
- Automatic discharge (peeler centrifuge)
- Discharge method
- Automatic discharge (peeler centrifuge)
- Optional items proposed
- Multiple configurations
