Pharmaceutical direct compression with linear blending

Streamline your pharmaceutical production with a continuous direct compression line that ensures precise blending and compression, enhancing product quality and consistency for high-value, low-dose medications.

Blends and Compresses Pharmaceutical Powders Continuously

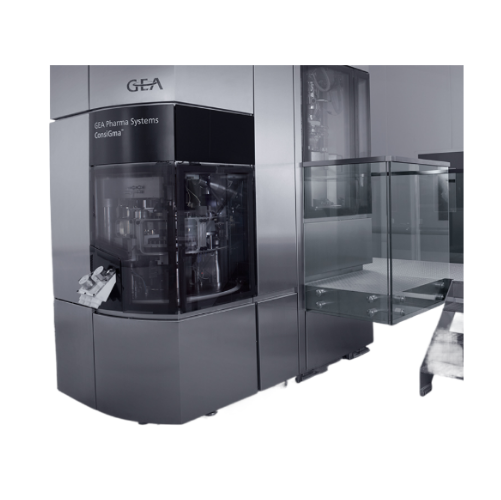

The ConsiGma® Direct Compression with Linear Blending (DC-LB) Lines from GEA offer a highly integrated solution for pharmaceutical manufacturers aiming for precision in blending and compression. This system combines continuous dry blending and tablet compression into a single, efficient process, using linear blenders for seamless production. It supports high-value applications such as low-dose aspirin tablets and specialty oncology drugs, producing up to 150,000 tablets per hour. The Conductor 4.0 software provides full process control and traceability, adapting automatically to changes in bulk density for optimal material yield. With a focus on high blend homogeneity, the system virtually eliminates material hold-ups, enhancing in-line uniformity control. Designed for rigorous pharmaceutical standards, it features cleaning and containment options for handling potent formulations and complies with GMP requirements, offering customizable configurations to meet specific operational needs.

Benefits

  • Ensures consistent product quality with real-time blend uniformity control.
  • Minimizes material wastage, increasing yield and reducing costs.
  • Adapts to variable production scales without compromising precision.
  • Streamlines operations with a compact footprint, freeing up factory space.
  • Handles potent drugs safely with integrated cleaning and containment features.

General


Applications
New chemical entities,Orphan drugs,Pharmaceutical tablets,High-value products
End products
Specialty oncology drugs,Low-dose aspirin tablets,Innovative antiviral compounds,High-potency antihypertensive medication
Steps before
Purification,Weighing,Dispensing
Steps after
Coating,Packing,Tablet Inspection
Input ingredients
powder particles,low dose API,raw materials,excipient blends
Output ingredients
tablets,compressed tablets,pharmaceutical dosage forms
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Production throughput
1 to 100 kg/h
Tablet throughput
20,000 to 150,000 tablets/h
Number of feeders
Up to 6 loss-in-weight feeders
Blender type
Linear blenders
Software
Conductor 4.0 software
Automation
Seamless control with full reporting
Batch size flexibility
Very low to very high API content
Cleaning method
Equip with cleaning and containment features
Compression system
GEA compression system
Containment upgrade options
Available
Material yield
High material yield
Blend uniformity control
In process control,second-by-second
Footprint
Small footprint
Customizable options
Number of options to suit customer needs

Operating Characteristics


Working mechanism
Continuous Direct Compression
Integrated steps
Continuous Dry Blending,Tablet Compression
CIP/SIP
Equipped with Cleaning Features
Batch vs. continuous operation
Continuous
Automation level
Conductor 4.0 Software Control
Material handling system
Includes Containment Features
Changeover time
Hot Swap Parts for Fast Changeover

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Small
Compact footprint
Yes
Control panel type
Integrated with Conductor 4.0
Discharge method
Integrated Continuous System

Custom Options


System Size
1 to 100 kg/h or 20,000 to 150,000 tablets/h
Feeder Options
Up to 6 loss-in-weight feeders
Software Integration
Conductor 4.0 software
Cleaning Features
CIP / Containment upgrade
Customization Configuration
Options for two-stage blending or dispersive blending
Material Handling System
Including containment features
PAT Tools
Available
Hot Swap Parts
For fast changeover
