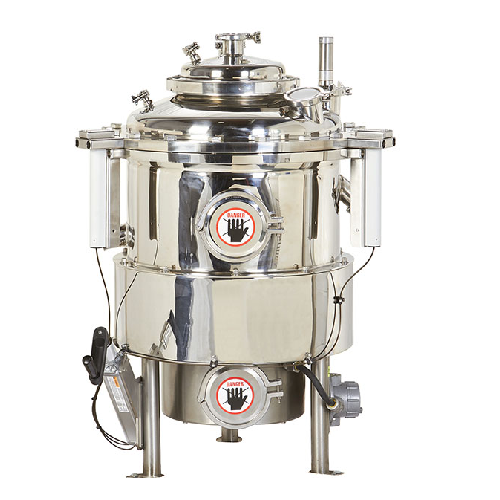

Pilot pharmaceutical aseptic separator and dryer

Achieve high-yield recovery of potent compounds with a separator that combines vacuum drying and gentle tumbling, ideal for maintaining product integrity in both wet and dry processes.

Filters, Dries, and Separates Pharmaceutical Products

The SWECO PH22 PharmASep, a 600mm filter/dryer, is designed for pharmaceutical manufacturers and is engineered to tackle complex filtration, drying, and separation tasks. Featuring SWECO’s patented Vibro-Dry technology, it enables vacuum drying while gently tumbling the product, minimizing agglomerate formation and accelerating drying time. Ideal for processing biopharmaceuticals, APIs, and nutraceuticals, the PH22 offers batch and continuous operations in pilot and production environments. It handles up to 5 kg of solids, maintaining high yield recoveries with its sealed pressure vessel and crevice-free interior. Made from high-quality materials for optimal corrosion resistance, it complies with GMP and FDA standards, ensuring safety and quality in pharmaceutical applications. The system also supports seamless integration into existing production lines with advanced control options, enhancing operational efficiency.

Benefits

  • Ensures high yield recovery, minimizing product loss and maximizing production efficiency.
  • Accelerates drying processes, reducing cycle times and increasing throughput.
  • Enhances safety with a sealed pressure vessel, containing potent pharmaceuticals securely.
  • Complies with GMP and FDA standards, ensuring regulatory adherence in pharmaceutical manufacturing.
  • Integrates seamlessly into existing operations, optimizing automation and reducing manual intervention.

General


Applications
Pharmaceutical tablets,Fine chemicals,Nutraceuticals,Pharmaceutical powder,Biopharmaceuticals
End products
Insulin,Active pharmaceutical ingredients (apis),Monoclonal antibodies,Vitamin supplements,Effervescent tablets
Steps before
Purification,Drying,Grinding
Steps after
Sterilization,Packing
Input ingredients
wet process materials,dry process materials
Output ingredients
up to 5 kg of solids,dry product,wet product,high yield product recovery
Market info
Sweco is known for engineering consulting services, providing expertise in sustainable infrastructure, architecture, and engineering projects, with a strong reputation for delivering comprehensive solutions in urban planning, environmental services, and industrial ETO equipment design and consultancy.

Technical Specifications


Batch size
up to 5 kg
Process type
Batch / Continuous
Drying method
Vibro-Dry technology
Sealed pressure vessel
Yes
Interior finish
Highly polished crevice-free
Operation environment
Pilot plants / Full production

Operating Characteristics


Working Mechanism
Filter/Dryer
Integrated Steps
Vacuum Drying
Batch vs. Continuous Operation
Batch / Continuous
Automation Level
Not specified
CIP/SIP
Sealed Pressure Vessel Design
Cleaning Method
Not specified
Air Incorporation Control
Not specified
Tumbling Motion
Gently Tumbled on Screen Surface
Agglomeration Control
Reduces Formation of Agglomerates

Product type Characteristics


Agglomeration risk
Reduced due to Vibro-Dry technology

Physical Characteristics


Machine Footprint
Compact Design
Bowl size
600 mm
Bowl shape
Round
Batch size
Up to 5 kg
Feed/Discharge method
Sealed Pressure Vessel
Tumble Screen
Vibro-Dry Technology

Custom Options


Control panel type
PLC / Touchscreen
Integration possibilities
Automation systems
Tumbling mechanism
Vibro-Dry technology
