Pet bottle stretch blow molding with coating and filling
Extend the shelf life of your beverages and liquid products with a compact unit that combines blow molding, coating, and filling, ensuring resource efficiency and space savings without compromising on capacity or operational efficiency.
Integrates Blow Molding, Coating, and Filling

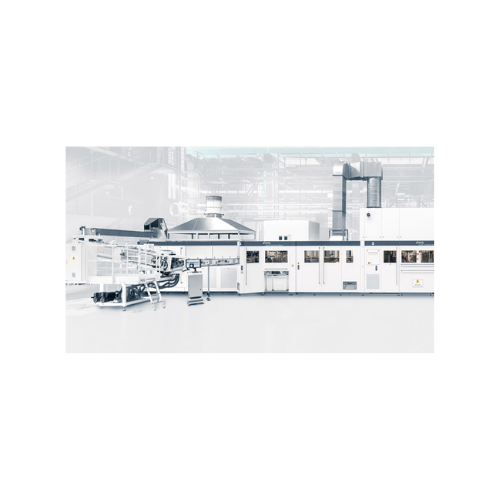

The InnoPET FreshSafe TriBlock from KHS Group is an engineered-to-order solution that seamlessly combines stretch blow molding, coating, and filling technologies into one compact unit. This innovative machine is specifically designed for beverage, food, and non-food industries, addressing the challenge of maximizing product shelf life while ensuring resource efficiency. The TriBlock employs an ultra-thin glass coating on the interior of PET bottles, significantly enhancing product protection and extending shelf life by 2 to 5 times, which in turn boosts distribution range.
Designed to handle a range of bottle volumes from 0.1 to 1.5 liters, it offers a throughput capacity of up to 46,000 bottles per hour, adjusting to various production demands. The system’s automation is PLC-controlled, reducing the need for extensive manual intervention and improving overall operational efficiency. By eliminating over 100 meters of air conveyors and often negating the need for an air rinser, the TriBlock minimizes floor space usage and operating costs.
The machine’s energy efficiency is noteworthy, utilizing energy-saving components throughout the block unit. Additionally, its capability for 100% bottle-to-bottle recycling supports sustainable production practices. The InnoPET FreshSafe TriBlock is versatile in its application, suitable for a wide range of end-products including beverages like pilsner beer, cola, and chardonnay wine as well as liquid food and homecare products such as tomato sauce and liquid detergent. Configurable options allow for future expansion to accommodate different beverage types and container sizes, making it a dynamic choice for producers looking to future-proof their production lines.
Benefits
- Extends product shelf life, enabling wider distribution range and reduced spoilage.
- Streamlines production by integrating multiple processes, reducing operating costs and space requirements.
- Enhances sustainability with 100% recyclable PET bottles.
- Increases efficiency with a high throughput capacity of up to 46,000 bottles per hour.
- Cuts energy costs through the use of energy-saving components across the unit.
- Applications
- Liquid food,Wine,Milk,Iced tea,Spirits,Still water,Homecare products,Juice,Soft drinks,Beer,Sparkling wine
- End products
- Mineral water,Champagne,Chardonnay wine,Orange juice,Almond milk,Lemon iced tea,Cola,Pilsner beer,Tomato sauce,Liquid detergent,Vodka
- Steps before
- Syrup preparation,Container design,Purification,Sugar dissolving,System planning
- Steps after
- Coating,Filling,Capping,Packaging,Labeling
- Input ingredients
- PET bottles,bottle volumes 0.1 to 1.5 liters
- Output ingredients
- filled PET bottles,coated PET bottles,up to 46,000 bottles per hour,100% recyclable bottles
- Market info
- KHS is known for manufacturing innovative filling and packaging systems for the beverage, food, and non-food industries, renowned for their engineering expertise, high-quality standards, and sustainable solutions in ensuring efficient production processes.
- Capacity
- Up to 46,000 bottles/h
- Bottle Volume Range
- 0.1 to 1.5 liters
- Coating Method
- Ultra-thin glass coating
- Automation
- Integrated stretch blow molder/coater/filler
- Recycling Capability
- 100% bottle-to-bottle recycling
- Energy Efficiency
- Energy-saving components
- Machine Design
- Extremely compact unit
- Working mechanism
- Stretch blow molding,coating,and filling
- Integrated steps
- Blow molding,coating,filling
- Automation level
- High machine availability
- Energy efficiency
- Consistent use of energy-saving components
- Batch vs. continuous operation
- Inline Continuous
- Changeover time
- Minimal due to compact design
- CIP/SIP
- CIP Compatible
- Cleaning method
- Automatic CIP
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container size
- 0.1 to 1.5 liters
- Container type
- PET bottles
- Coating type
- Ultra-thin glass coating
- Machine footprint
- Compact design
- Discharge method
- Integrated block unit
- Container type
- PET bottles
- Control panel type
- Central control unit
- Compact footprint
- Yes
- Control panel type
- Central control
- Integration possibilities
- Module add-ons for flexible processing
