Pellet mills for feed, plastics, and industrial products

Optimize pelleting output across diverse materials with precision, transforming raw ingredients into consistently high-quality end-products, from biofuel pellets to animal feed.

Processes Raw Materials into Durable Pellets

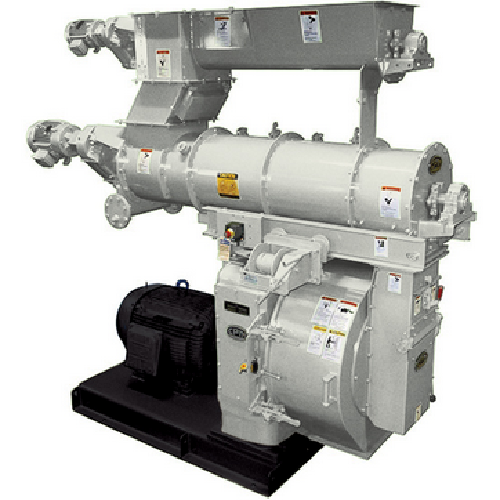

The 3000 Series Pellet Mill from CPM is a robust and efficient solution for transforming a variety of raw materials into high-quality pellets. This equipment is essential for industries such as animal feed production, biomass, plastics, and aquaculture. It excels with a positive direct gear drive that ensures a 98% energy transfer and features rounded cast gear cases for quieter operations. Applications include producing pellets for poultry feed, plastic granules, and biofuel briquettes.

With a segmented die clamp, it allows for quick die changes, increasing production flexibility. The modular gearbox design accommodates varying production needs, and an optional automatic grease system further enhances operational efficiency. The 3000 Series supports continuous and automated production at high speeds, making it suitable for large-scale operations. Optional features like roll speed measurement and enforcer die feeders enable precise control and customization to meet specific production requirements. Available with stainless steel pellet chambers, these mills ensure durability and resistance to corrosive materials. Customizable options and direct engineering support from CPM provide a tailored solution to meet diverse manufacturing needs.

Benefits

  • Ensures high energy efficiency with 98% energy transfer, reducing operational costs.
  • Minimizes downtime with quick die changes through segmented die clamps.
  • Increases production flexibility with modular gearbox design.
  • Supports large-scale operations with continuous, high-speed processing capabilities.
  • Customizable features optimize pellet quality for various applications, enhancing product versatility.

General


Applications
Aquaculture,Animal feed,Pet food,Hemp,Shrimp feeds,Industrial products,Hops,Plastics,Rendering,Biomass,Biofuel
End products
Hemp pellets,Dog kibble,Wood pellets,Meat and bone meal,Plastic granules,Biofuel pellets,Poultry feed pellets,Hop pellets,Fish feed pellets,Biomass briquettes,Shrimp feed pellets
Steps before
Grinding,Oilseed Preparation,Particle Size Reduction
Steps after
Cooling,Pellet Crumbling
Input ingredients
feed ingredients,plastics,industrial raw materials,shrimp feed components
Output ingredients
pellets,processed feed,plastic pellets,shrimp feed
Market info
CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.

Technical Specifications


Drive type
Positive direct gear drive
Energy transfer
98%
Die RPM
254/210 (60Hz/50Hz)
Motor RPM
1,800/1,500 (60Hz/50Hz)
Die Working Area
165–2,792 cm²
Model
Various (e.g.,3016-3150,3020-6200)
Horsepower
Quoted for specific application
Modular gearbox design
Yes
Pellet chamber material
Stainless steel
Optional features
Enforcer die feeder,Roll speed measurement,Automatic grease system
Single motor efficiency
Greater efficiency
Segmented die clamps
For quicker die changes
Metal-to-metal seals
Between components
Replaceable quill flange
Yes

Operating Characteristics


Gear drive efficiency
98% energy transfer
Noise level
Quieter operation
Production flexibility
Modular gearbox design
Die change time
Quicker die changes
Operation mode
Single motor
Die feeder type
Optional Enforcer die feeder
Roll speed measurement
Available on some models
Greasing system
Automatic grease system

Material Compatibility


Abrasion resistance
High
Cleanability
Yes
Corrosive resistance
Yes
Biological compatibility
Yes
Density/particle size
Varies with material type

Physical Characteristics


Footprint
Varies based on model
Die Working Area
1,055 cm² - 2,792 cm²
Die RPM
254/210 RPM
Construction Material
Stainless Steel Pellet Chamber
Modular Gearbox Design
For Production Flexibility
Control Panel
Optional MCP Pellet Mill Controller

Custom Options


Modular gearbox design
Yes
Metal-to-metal seals
Yes
Replaceable quill flange
Yes
Enforcer die feeder
Available
Roll speed measurement (RSM)
Optional on some models
Automatic grease system
Optional
Single motor efficiency
Yes
Die changes
Quicker with segmented die clamps
Positive direct gear drive
98% energy transfer
