Pellet mill for high efficiency animal feed production

Achieve stable, vibration-free pellet production with enhanced energy efficiency and reduced noise, perfect for those optimizing feed production lines without compromising on pellet quality.

Pellets Feed and Pet Food Efficiently

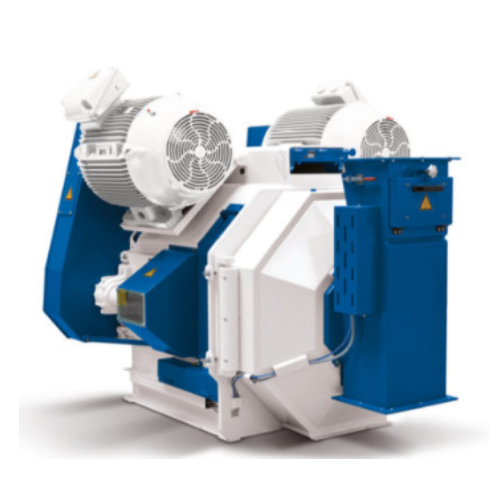

The Progress MonoRolls HE from Ottevanger Milling Engineers is a robust pellet mill designed for high-efficiency feed production. It features a unique technological concept that distributes mechanical forces evenly across its heavy-duty bearings, ensuring vibration-free and stable operation. With a two-stage transmission system and variability in die speed, this equipment is tailored for animal feed, pet food, and aquafeed producers seeking quality and efficiency. It supports a large die surface and roller diameter to enhance capacity, achieving up to 30% more throughput with the same energy input. The integrated pneumatic-quick dump chute and central greasing system promote reduced maintenance time and extended component lifespan. Available in durable material selections, it is engineered for seamless integration into continuous production lines, enhancing automation capabilities with minimal energy expenditure.

Benefits

  • Enhances production efficiency, allowing up to 30% more throughput without increased energy use.
  • Minimizes maintenance demands with a central greasing system and durable component design.
  • Promotes consistent pellet quality at lower die speeds, ensuring stable output.
  • Lowers operational noise levels, creating a quieter work environment.
  • Facilitates easy integration into existing production lines, supporting continuous operations.

General


Applications
Pet food,Soybean processing,Aqua feed,Concentrates,Premix,Compound feed
End products
Dog kibble,Mineral premix,Cattle feed pellets,Poultry feed pellets,Protein concentrate,Fish feed pellets,Cat kibble,Soybean meal,Vitamin premix
Steps before
Grinding,Mixing,Conditioning
Steps after
Cooling,Crumbling,Packing,Sieving,Coating
Input ingredients
Output ingredients
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Die size
850 x 210 mm / 1000 x 300 mm
Number of rollers
2
Roller diameter
132 mm / 160 mm
Internal width
1700 mm / 1800 mm
Die surface area
6056 cm² / 9420 cm²
Main Motor (max. kW)
854 kW / 1000 kW
Weight incl. motors
12,000 kg / 17,000 kg
Variable die speed
By frequency converter
Noise level
Reduced
Energy efficiency
Lower energy consumption
Capacity increase
Average 30% more capacity with same energy level
Conical die fitting
Yes
Central greasing system
Yes
Two-stage transmission
V-belts and timing belts
Pneumatic-quick dump chute
Integrated
Main shaft bearing lifetime
Extended
Product quality
Excellent pellet quality at low die speeds

Operating Characteristics


Working mechanism
Two-stage transmission via V-belts and timing belts
Integrated steps
Central greasing system
Batch vs. continuous operation
Continuous
Energy efficiency
On average 30% more capacity with the same energy level
Changeover time
Less downtime due to stable operation

Material Compatibility


Abrasion resistance
Yes
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
High resistance

Product type Characteristics


Pellet quality
Excellent at low die speeds

Physical Characteristics


Machine footprint
850 x 210 mm / 1000 x 300 mm
Roller diameter
132 mm / 160 mm
Weight incl. motors
12,000 kg / 17,000 kg
Width
1700 mm / 1800 mm
Surface area
5,650 cm² / 9,420 cm²
Discharge method
Integrated pneumatic-quick dump chute
Conical die fitting
Yes
Control panel type
Not specified in the text

Custom Options


Die speed control
Variable by frequency converter
Die fitting
Conical
Greasing system
Central greasing system
Dump chute
Integrated pneumatic-quick dump chute
Shaft bearings lifespan
Longer lifetime for main shaft bearings
