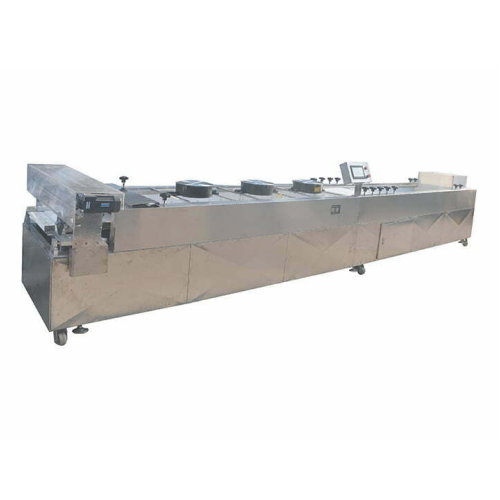

Peanut brittle forming and cutting system

Efficiently transform sticky ingredients into uniform treats with our cutting-edge machine, precisely forming, cutting, and cooling to ensure consistent size and shape for high-quality confections.

Cuts, Presses, and Forms Confectionery Products

The caramel cutter and peanut brittle forming machine from Taizy Machinery is engineered to enhance efficiency in confectionery and snack production. Featuring a multi-step process, this machine presses, cuts, and forms a variety of sweets from peanut brittle to caramel-coated rice crisps. Utilizing dual frequency conversion and PLC control, it ensures precise automation and high-speed operation, handling up to 400 kg/h. Constructed from 201 stainless steel, it offers durability and hygiene, supported by in-machine cooling fans to prevent sticking issues. The machine’s versatility allows adjustments to candy thickness and shape, catering to various end-products like crunchy sesame squares and granola seed clusters. Its design allows seamless integration into existing production lines, delivering consistent output while minimizing energy consumption. Equipped with a customizable display screen and easy maintenance features, it meets rigorous production demands while offering engineering support for tailored configurations.

Benefits

  • Enhances production efficiency by automating pressing, cutting, and forming processes.
  • Reduces operational costs with energy-efficient variable motor control and minimal labor requirement.
  • Ensures consistent product quality with adjustable candy thickness and shape for diverse product lines.
  • Minimizes product waste and sticking issues with integrated cooling fans.
  • Facilitates seamless integration into existing systems, optimizing the overall production workflow.

General


Applications
Rice crispy candy,Peanut candy,Snacks,Sesame candy,Sweets,Puffed rice candy,Caramel treats,Seed candy
End products
Caramel-coated rice crisps,Crunchy sesame squares,Granola seed clusters,Honey sesame bars,Puffed rice and nut clusters,Sticky caramel treats,Peanut brittle bars
Steps before
Preparation of raw peanuts,Mixing with caramel,Heating the mixture
Steps after
Cooling the peanut candy,Packing,Distribution
Input ingredients
sticky peanut candy,raw peanut material,puffed rice material,sesame seeds,seed candy material
Output ingredients
peanut candy,rectangle-shaped peanut candy,puffed rice candy,rice crispy candy,seed candy,sesame candy,caramel treats
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Material
201 stainless steel
Capacity
300-400 kg/h
Conveyor belt length
5 m
Pressing roller number
4
Cooling fan number
3 (80 w each)
Total length
11800 mm
Pressing roller width
560 mm
Motor number
5 (0.75 kw each)
Main cutting device power
0.75 kw
Secondary cutting device power
220 v 250 w
Automation
Automatic,PLC-controlled
Adjustable width of peanut candy
Yes,adjustable by handle

Operating Characteristics


Automation level
PLC
Cutting mechanism
Horizontal and vertical blades
Cooling method
Fans
Integrated steps
Pressing,cooling,cutting
Batch vs. continuous operation
Continuous
Material handling
Conveyor belt

Material Compatibility


Corrosive resistance (e.g. acids)
Medium
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Abrasion resistance
High
Biological compatibility
Food-grade

Physical Characteristics


Machine Footprint
11800mm total length
Pressing Roller Width
560mm
Conveyor Belt Length
5m
Material
201 Stainless Steel
Feed/Discharge Method
Conveyor belt feed and discharge
Control Panel Type
PLC-controlled
Cooling Fans
3 Fans (80W each)

Custom Options


Control panel type
PLC-controlled
Language of display screen
Changeable
Adjustable candy width
Yes,using handle
