Peach, plum, and apricot juice processing line

Optimize your fruit processing capabilities with a multifunctional solution designed to extract, refine, and concentrate juices while preserving aromatic integrity and maximizing yield.

Extracts and Processes Stone Fruit Products

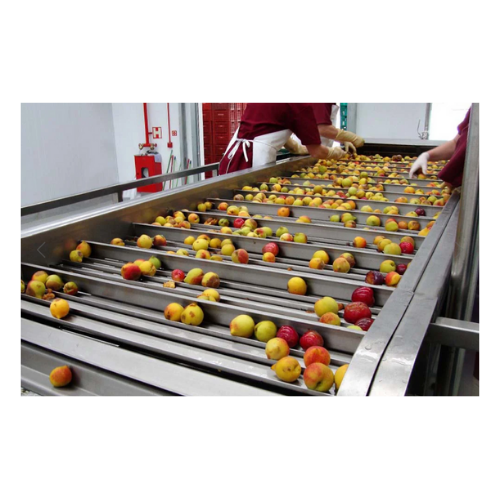

The Temperate Climate Multifruit Extraction Line from Tropical Food Machinery is designed to efficiently transform stone fruits like peaches, plums, and apricots into a variety of high-quality products such as juices, purées, and jams. Its comprehensive process includes washing, destoning, preheating, and refining, all performed in a cold inert atmosphere to preserve fruit aromas and qualities. The line can handle between 2,000 Kg/h to 15,000 Kg/h of fresh fruit, integrating seamlessly into existing production lines with continuous, high-speed operations. Equipped with the Evaporator ZEUS for concentration, the line also features the Turbo Refiner HERA for fine pulping and a Sterilization Plant TCMA for product safety, followed by aseptic filling using TFM Aseptic Fillers. This equipment is built with robust stainless steel for durability and hygiene, and supports compliance with international food safety standards. The line is PLC-controlled for automated operation, allowing for customizable processing sequences and integration with remote monitoring systems to optimize efficiency and minimize energy consumption.

Benefits

  • Increases yield by minimizing fruit oxidation during processing.
  • Lowers operational costs with efficient energy usage across the production line.
  • Ensures product safety and quality with advanced sterilization and aseptic filling.
  • Adapts to varying production demands with flexible processing capacity.
  • Facilitates regulatory compliance with international food standards.

General


Applications
Fruit in pieces or chunks,Fruit beverages,Concentrated juices,Fruit juices,Tomato sauce,Fruit jams,Fruit purées
End products
Concentrated apricot juice,Tomato puree,Peach nectar,Plum sauce,Fruit cocktail blend,Clarified peach juice,Apricot jam
Steps before
Washing,Brushing,Sorting
Steps after
Concentration,Sterilization,Aseptic Filling
Input ingredients
peaches,plums,apricots,fresh fruit
Output ingredients
pulp,refined juice,clarified juice,concentrated juice,top-quality juice
Market info
Tropical Food Machinery is known for manufacturing engineered-to-order (ETO) industrial equipment, specializing in fruit and vegetable processing machinery. They are reputed for innovation, quality, and global service in the food processing industry.

Technical Specifications


Capacity
2,000–15,000 kg/h of fresh fruit
Automation
Automatic
Juice Extraction
Cold extraction in an inert atmosphere
Pre-treatment
Washing,brushing,sorting
Separation Method
Complete separation of skins and stones
Final Processing
Aseptic filling
Concentration
Evaporator ZEUS
Sterilization Method
Sterilization and filling plant

Operating Characteristics


Working mechanism
Cold extraction in inert atmosphere
Automation level
Integrated Automated Lines
Integrated steps
Pre-treatment,Extraction,Concentration,Sterilization
Batch vs. continuous operation
Continuous Inline
CIP/SIP
CIP Compatible
Air incorporation control
Prevention through complete separation and deaeration

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Custom Options


Control panel type
Touchscreen / PLC
Integration possibilities
SCADA / ERP System integration
Custom machine dimensions
Adjustable to production needs
Capacity range
2,000 to 15,000 kg/h
Aroma recovery feature
Available
