Outdoor central chiller for process cooling
For facilities needing reliable process cooling without sacrificing indoor space, air-cooled outdoor central chillers deliver efficient heat exchange and temperature control, supporting continuous and precise operations.
Delivers Efficient Process Cooling Solutions

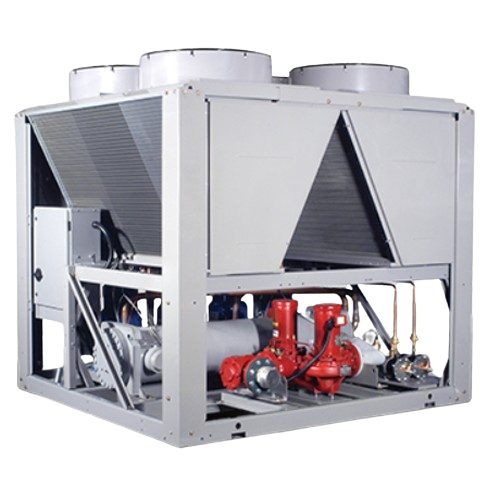

The 30RB Series Outdoor Air-Cooled Central Chillers by AEC are engineered to provide optimal cooling solutions for industries such as plastics, food and beverage, and chemical processing. These chillers are designed to efficiently manage ambient temperatures from -20°F to 125°F, supporting applications from plastic pellet cooling to beverage bottle refrigeration.
The system employs a direct expansion shell and tube cooler integrated with rotary scroll compressors, ensuring precise temperature control for reliable process operations. Models range in capacity from 60 to 300 tons, with standard ambient operational capabilities suitable for continuous and manual operations.
With pre-wired and pre-piped installation-ready units, the chillers integrate seamlessly into your production line, minimizing setup time and space requirements. The use of R-410A refrigerant and energy-efficient components provides significant reductions in energy consumption. Multiple safety features, such as high and low refrigerant protection and flow switches, guarantee safe and stable operation.
Customization options include varied setpoint ranges and supplemental cooling solutions such as the AWK Winter Kooler. The system is built with durable materials, offering weatherproofing for outdoor use, making it an ideal fit for manufacturing plants and space-constrained facilities requiring robust, reliable cooling.
Benefits
- Optimizes facility space by enabling outdoor installations, freeing up valuable indoor production areas.
- Enhances energy efficiency with advanced rotary scroll compressors and R-410A refrigerant, reducing operational costs.
- Provides reliable performance in varying environmental conditions with robust weatherproof construction.
- Supports diverse cooling needs with customizable temperature setpoints and optional supplemental cooling solutions.
- Ensures safety and operational stability with comprehensive safety features and system protections.
- Applications
- Chemical processing,Industrial refrigeration,Plastic processing,Climate control,Manufacturing,Food processing,Medical device manufacturing,Process cooling,Hvac solutions,Beverage industry,Industrial processing
- End products
- Medical devices,Processed foods,Refrigerated goods,Beverage bottles,Chemical solutions,Hvac system components,Injection-molded parts,Climate-controlled environments,Plastic pellets,Plastic films
- Steps before
- Material Handling,Blending,Conveying,Drying
- Steps after
- Cooling,Size Reduction,Temperature Control
- Input ingredients
- water,R-410A refrigerant,ambient air
- Output ingredients
- chilled water,waste heat
- Market info
- AEC (ACS Group) is known for manufacturing industrial equipment such as cooling, heating, and conveying solutions, serving various industries with a reputation for high-quality engineered-to-order systems and reliable customer support.
- Cooling Capacity
- 60-300 tons
- Compressor Type
- Rotary scroll
- Refrigerant Type
- R-410A
- Operating Temperature Range
- -20°F to 125°F (-29°C to 52°C)
- Leaving Water Temperature Setpoints
- 40°F to 60°F (4.4°C to 18.6°C)
- Number of Independent Circuits
- Two or three
- Expansion Valve Type
- Electronic
- Warranty
- One year parts and labor,with a four-year extended compressor parts warranty
- Startup Requirement
- Factory start-up required
- Display Panel
- Remote
- Cooling system type
- Air-cooled
- Location suitability
- Outdoor
- Temperature range operation
- -20°F to 125°F (-29°C to 52°C)
- Setpoint temperature range
- 40°F to 60°F (4.4°C to 18.6°C)
- Weatherproof features
- Fully weatherproofed
- Cooling capacity range
- 60 to 300 tons
- Compressor type
- Rotary scroll compressors
- Load capacity control
- Minimum load capacity control
- Number of circuits
- Two or three independent circuits
- Refrigerant type
- R-410A
- Factory startup requirement
- Yes,factory startup required
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Independent Circuits
- Two or three circuits
- Weatherproofing
- Completely weatherproofed
- Control Panel
- Remote display panel
- Optional Features
- Wind baffle / hail guard
- Control panel type
- Remote display panel
- Cooling capacity
- 60-300 tons
- Refrigerant type
- R-410A
- Ambient operation range
- -20°F to 125°F (-29°C to 52°C)
- Leaving water temperature setpoints
- 40°F to 60°F (4.4°C to 18.6°C)
- Additional setpoint ranges
- Available upon request
- Compressor type
- Rotary scroll compressors
- Supplemental cooling option
- AWK Winter Kooler
