On-line particle size and shape analyzer for industrial processes

Optimize your production line with precise, real-time particle size and shape analysis, enhancing quality control and reducing waste across continuous operations.

Analyzes and Measures Particle Size and Shape

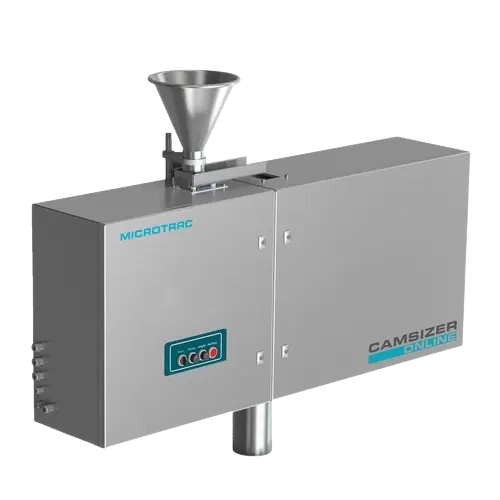

The CAMSIZER ONLINE from Microtrac Retsch GmbH is a robust 3D particle size and shape analyzer designed for continuous, precise monitoring of dry particles in various industrial processes. This dynamic image analyzer accurately characterizes up to 32 morphological parameters per particle, making it indispensable for quality control in industries like aggregates, fertilizers, and mining. With a processing capability of analyzing 100 images per second using a high-speed, high-resolution camera, it efficiently handles particles ranging from 30 µm to 35 mm in size. The system’s rugged, compact design includes a self-cleaning mechanism, minimizing downtime and maintenance needs. Its explosion-proof feature ensures safe operation in volatile environments. Seamless integration with existing process control systems and third-party sample delivery devices makes it an essential tool for optimizing production lines. Customizable configurations, combined with Microtrac Retsch’s engineering support, ensure that the CAMSIZER ONLINE meets specific production requirements, enhancing operational efficiency and product consistency.

Benefits

  • Enhances product quality by providing real-time particle analysis without manual intervention.
  • Minimizes downtime with a self-cleaning mechanism that ensures continuous operation.
  • Ensures safety in explosive environments with its explosion-proof design.
  • Integrates seamlessly with existing process control systems for streamlined production.
  • Customizable configurations meet specific industrial needs, ensuring operational flexibility.

General


Applications
Glass beads,Wood chips,Building materials,Aggregates,Geology/mining products,Food industry products,Fertilizers,Cement
End products
Glass microspheres,Powdered sugar,Crushed stone,Portland cement,Quartz sand,Potassium nitrate,Pine wood chips,Gravel,Urea prills
Steps before
Purification,Drying,Grinding,Emulsification
Steps after
Quality Control,Packing,Coating
Input ingredients
granules,fertilizer,sand,sugar,stone,food industry products,aggregates,building materials,glass beads,cement,fertilizers,wood chips
Output ingredients
3D particle size,shape analysis,morphological parameters,surface roughness,density measurement,transparency,32 morphological parameters
Market info
Microtrac is known for its expertise in particle size and shape analysis, providing innovative measurement solutions used in various industries to ensure product quality and consistency. Their equipment is recognized for precision and reliability in laboratory and industrial settings.

Technical Specifications


Particle Size Range
30 µm to 35 mm
Morphological Parameters
32 parameters
Image Analysis Speed
100 images per second
Camera Resolution
High-speed,high-resolution
Measurement Type
3D Particle Size and Shape
Measurement Method
Non-contact
Cleaning Mechanism
Self-cleaning
Explosion Proof
Yes
Integration Capability
With 3rd party devices
Optimization
Control room use
Sample Condition Customization
Available

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Inline Continuous
Changeover time
Minimal
Cleaning method
Self-cleaning
Energy efficiency
High

Material Compatibility


Density/particle size
30 µm to 35 mm


ATEX certification
Explosion proof

Physical Characteristics


Machine footprint
Compact
Discharge method
Non-contact measurement
Control panel type
Optimized for control room use
Feed size range
30 µm to 35 mm
Camera specifications
High-speed,high-resolution
Self-cleaning mechanism
Yes
Explosion proof
Yes

Custom Options


Control panel type
User-friendly interface
Integration possibilities
Clean integration with 3rd party sample delivery devices
Compact footprint
Yes
Explosion proof
Yes
