Omnidirectional inspection system for bottles and vials

Ensure precise serialization and aggregation with a 360° inspection system designed to enhance the accuracy and reliability of bottle and vial processing in your production line.

Aggregates and Inspects Bottles with 360° Precision

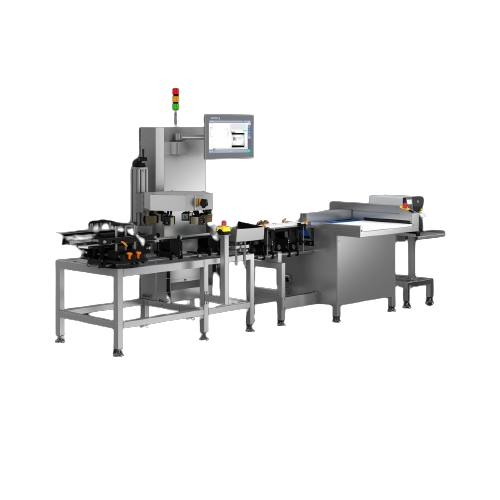

The TQS-CP-Bottle from Wipotec is a sophisticated semi-automatic inspection and aggregation system tailored to streamline your production line. It features a 360° camera module for all-around inspection, ensuring accurate verification of serialized labels on cylindrical containers. Ideal for pharmaceutical, food, and cosmetic applications, it efficiently aggregates liquid paracetamol bottles, essential oil vials, and more into shipment-ready cartons.

Noteworthy for its tool-free format change and ConfigureFast setup, the TQS-CP-Bottle maximizes throughput while enhancing efficiency and traceability. This unit promises seamless integration with existing labeling machines, maintains superior inspection results through secure infeed screw separation, and supports compliance with strict industry standards. Engineered for flexibility and reliability, it’s your robust solution for high-speed, semi-automatic aggregation operations.

Benefits

  • Enhances efficiency and accuracy in serialization and aggregation, reducing costly errors.
  • Facilitates quick adaptability with tool-free format adjustments, minimizing setup time.
  • Integrated 360° inspection ensures thorough verification of products, enhancing quality control.
  • Compact modularity allows seamless integration into varied production lines, maximizing space utilization.
  • Boosts productivity with high-speed processing, maintaining consistent operational flow.

General


Applications
Food,Medical vials,Hdpe-bottles,Chemical products,Cosmetics,Pharmaceuticals
End products
Vitamin supplement bottles,Essential oil vials,Hdpe water bottles,Liquid detergent refill bottles,Chemical reagent bottles,Cough syrup bottles,Shampoo bottles,Vaccine vials,Liquid paracetamol bottles
Steps before
Labeling,Serialisation
Steps after
Packing,Label verification
Input ingredients
bottle-shaped products,cylindrical containers,serialised labels,HDPE-bottles
Output ingredients
shipment cartons,validated bottles,packed cartons with labels
Market info
Wipotec is renowned for its precision weighing technology and high-speed checkweighers used in various industries, including pharmaceuticals and food. They are recognized for their innovation and high-quality engineered-to-order solutions in weight measurement and inspection systems.

Technical Specifications


Inspection Type
360° Omnidirectional
Camera Module
Integrated 360°
Adjustment Type
Tool-Free Central Adjustment
Product Handling
Infeed Screw
Automation Level
Semi-Automatic
Format Change
Tool-Free

Operating Characteristics


Inspection Mechanism
360° omnidirectional inspection
Automation Level
Semi-automatic
Product Handling
Infeed screw
Integration
Directly at the outlet of labeling machine
Format Change
Tool-free adjustments
Aggregation Process
Semi-automatic aggregation into shipment cartons
Validation and Documentation
IQ/OQ,FDS,RA,TM

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product type
Bottles / Vials

Physical Characteristics


Machine footprint
Compact
Shape
Bottle/vial compatible
Feed/discharge method
Infeed screw

Custom Options


Control panel type
ConfigureFast
Integration possibilities
Tool-free format change
Compact footprint
Yes
Modular design
Yes
