Oil absorption testing instrument for carbon black and silica
Accurately measure oil absorption in powders to enhance formulation precision and ensure consistent product quality, streamlining your testing process with automated precision and comprehensive data analysis capabilities.

Measures Oil Absorption in Powders

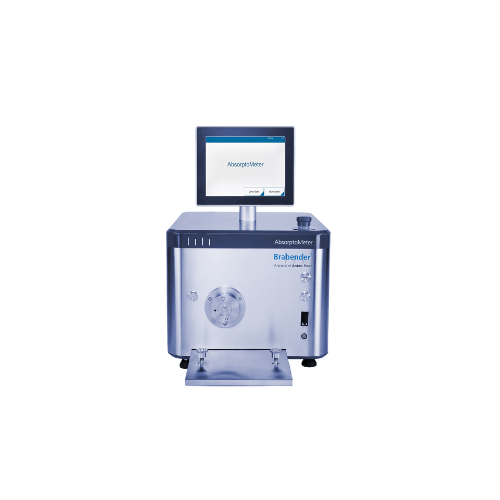

The Brabender AbsorptoMeter from Anton Paar is an automated oil absorption measuring device designed for unparalleled precision in laboratories. It effortlessly replaces manual methods by integrating an advanced software-supported system, which minimizes human error and enhances both accuracy and reproducibility. Specially crafted for applications involving carbon black, silica, and other chemical powders, it ensures compliance with ASTM D2414, D3493, and D6854 standards. The durable stainless steel housing optimizes longevity and facilitates easy cleaning, accommodating high-pressure testing environments. The machine’s titration system dexterously manages various dosing rates and viscosities up to 1,000,000 mPas, extending its versatility to diverse scenarios, including challenging solvents like NMP. The integrated software enhances workflow with real-time data comparisons, export options, and prescheduling capabilities. Whether you’re in chemical manufacturing or laboratory testing, the AbsorptoMeter provides the reliability and precision necessary for modern industrial applications.
Benefits
- Enhances measurement precision and repeatability by eliminating manual testing errors.
- Extends instrument lifespan with robust stainless steel construction, simplifying maintenance.
- Increases operational efficiency through real-time data analysis and streamlined lab workflows.
- Offers versatile titration options that adapt to various viscosities and solvents for tailored experiments.
- Ensures global compliance with major ASTM standards, aiding consistent quality monitoring.
- Applications
- Chemicals,Cosmetic powders,Silica,Pigments,Carbon black
- End products
- Printer toner,Lipstick colorants,Tire rubber,Plastic additives,Silicone sealants,Eyeshadows
- Steps before
- Purification,Mixing,Dispersion
- Steps after
- Quality Control,Data Export,Analysis
- Input ingredients
- carbon black,silica,other chemicals,oil
- Output ingredients
- oil absorption results
- Market info
- Brabender is renowned for producing high-quality, engineered-to-order lab equipment for material testing, particularly in food and plastics industries, specializing in precision instruments for measuring, preparation, and processing.
- Power
- 0.6 kW
- Speed
- Default
- Torque measurement
- Load cell 0 Nm to15 Nm
- Titration rate
- Preset
- Interfaces
- USB,Dosing unit (Buret),HDMI
- Mains connection
- 230 V (184…264 V) +N+PE / 50/60 Hz (45…66 Hz) / 4.3 A
- 1 kW
- Mains connection
- 115 V (88…126 V) + PE / 50/60 Hz (45…66 Hz) / 8.7 A
- 1 kW
- Dimensions (H x W x D)
- 630 x 430 x 740 mm without buret
- Weight
- Approx. 66 kg
- Automation level
- Software-supported automated system
- Batch vs. continuous operation
- Batch operation
- Cleaning method
- Stainless steel easy cleaning
- Precision
- Enhanced precision and repeatability
- Energy efficiency
- 0.6 kW power consumption
- Stainless steel housing
- Durable,easy cleaning
- Corrosion resistance
- High resistance to strong solvents like NMP
- Density/particle size
- Compatible with carbon black,silica particles
- Mixing bowl type
- Specific for carbon black and silica
- Machine footprint
- 630 x 430 x 740 mm
- Integration possibilities
- USB,Dosing unit (Buret),HDMI
