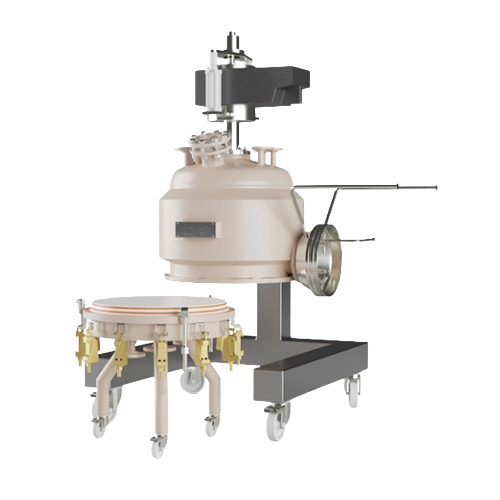

Nutsche filter dryer system for small scale batches

Efficiently tackle filtration and drying challenges with a compact, mobile solution designed for precise control in small-scale and pilot batch production environments.

Filters, Dries, and Processes Slurry for Pharmaceuticals

The SimpleFilter™ from Powder Systems Limited is an engineered solution for small scale and pilot batch processing in pharmaceutical, chemical, and biotech industries. This Nutsche filter dryer stands out with its compact, mobile design allowing for efficient filtration, drying, and washing of slurries, cakes, and solids. Its single plate pressure and vacuum vessel integrates a glove-bag containment system, ensuring safe discharge and sampling under a nitrogen purge. Available in 316L stainless steel or PFA-coated options, it offers significant corrosion resistance. The system is designed for GMP compliance, supporting applications such as API purification, specialty chemicals, and biopharmaceuticals. With vessel volumes ranging from 50 to 130 liters and configurable with agitation and CIP systems, SimpleFilter™ enhances adaptability and production agility, ensuring high product recovery and maintaining crucial process parameters consistent from R&D to commercial production stages.

Benefits

  • Enhances production efficiency by integrating multiple processing steps in a single system.
  • Ensures product safety and quality with contained discharge and nitrogen purge.
  • Adapts quickly to varying production requirements with modular, mobile design.
  • Increases product recovery, minimizing material loss through effective discharge methods.
  • Maintains batch consistency and quality during scale-up processes across diverse applications.

General


Applications
Chemicals,Fine chemicals,Nutraceuticals,Active pharmaceutical ingredients (apis),Biopharmaceuticals,Pharmaceuticals
End products
Active pharmaceutical ingredients,Specialty chemicals,Antiviral medications,Nutraceutical capsules,Antibiotics,Chemotherapy drugs,Enzyme formulations,Biochemical reagents,High-potency vitamin supplements,Fine chemical intermediates
Steps before
Slurry Preparation,Re-slurry,Chemical Synthesis,Crystallization
Steps after
Sampling,Product Discharge,Packaging,Sterilization
Input ingredients
slurry,product cake,product batch
Output ingredients
dried product,product discharge,product sampling
Market info
PSL (Powder Systems Limited) is known for designing and manufacturing advanced containment and process solutions for the pharmaceutical, biopharmaceutical, and chemical industries. They specialize in high-quality filtration, drying, and high containment systems.

Technical Specifications


Vessel Size
0.125 Model / 0.3 Model
Filtration Area
0.125m² / 0.3m²
Vessel Volume
50L / 130L
Typical Product Cake Volume
3L – 12.5L / 7L – 30L
Equipment Dimensions (H x W x D)
1,495 x 1,220 x 1,455mm / 1,510 x 1,170 x 1,490mm
Vessel Material of Construction
316L Stainless Steel / PFA Coated 316LSS
Filtration Mesh
Polypropylene cloth mesh / 316LSS or Alloy 22 mesh
Agitated Vessel
Available
Agitator Raise,Lower (R,L)
Manual or Automated
Glove-bag for Product Discharge
Available
Continuous Liner Discharge Chute
Available
Vessel Wash,Clean-in-Place (WIP/CIP)
CIP spray-ring available

Operating Characteristics


Working mechanism
Pressure,vacuum filter-dryer
Integrated steps
Filtration,Washing,Drying,Product Discharge
CIP/SIP
WIP spray-ball,CIP spray-ring available
Batch vs. continuous operation
Batch
Automation level
Manual or Automated (with agitator upgrade)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Slurry Filtration
Yes

Physical Characteristics


Machine Footprint
1,495 x 1,220 x 1,455 mm
Vessel Size
0.125 m² / 0.3 m²
Vessel Volume
50 L / 130 L
Typical Product Cake Volume
3 L – 12.5 L / 7 L – 30 L
Discharge Method
Glove-bag System with Side-Discharge
Glove-bag Arrangement
2-Glove System

Custom Options


Vessel Material of Construction
316L Stainless Steel (316LSS) / PFA Coated 316LSS
Filtration Mesh
Polypropylene cloth mesh / 316LSS or Alloy 22 mesh
Agitated Vessel
No agitator / Available
Agitator Raise,Lower (R,L)
No agitator / Manual or Automated
Glove-bag for Product Discharge
Not included / Available
Continuous Liner Discharge Chute
Not included / Available
Vessel Wash,Clean-in-Place (WIP/CIP)
WIP spray-ball / CIP spray-ring available
