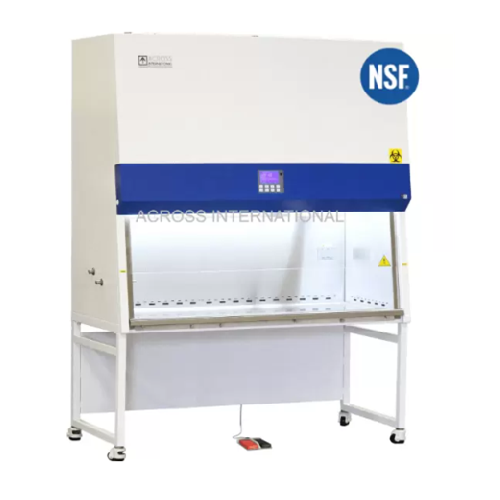

Nsf certified class Ii a2 biosafety cabinet

Ensure laboratory safety and specimen integrity with a biosafety cabinet designed for precise environmental control and pathogen containment, critical for handling COVID-19 samples and various microbiological applications.

Contains and Filters Pathogens in Laboratory Settings

The NSF Certified 6 Ft Class II A2 Biosafety Cabinet from Across International offers a robust solution for life sciences and microbial containment. Equipped with dual HEPA filters, this cabinet ensures 99.999% pathogen filtration, crucial for handling COVID-19 specimens, recombinant proteins, and viral cultures. It features a motorized front glass viewing window and easy-to-clean stainless steel chamber for practical daily operations. The unit supports critical laboratory environments with functionalities like sterilization, decontamination, and ventilation. Designed to minimize contamination, it incorporates UV light with automatic control, making it suitable for manual and semi-automatic setups. The cabinet complies with NSF/ANSI 49 standards, ensuring it meets rigorous safety and performance benchmarks. With remote monitoring supported, it integrates seamlessly into research and development settings, prioritizing both personnel safety and environmental integrity.

Benefits

  • Ensures operator safety with 99.999% efficient HEPA filtration.
  • Minimizes contamination with automatic UV sterilization and airflow controls.
  • Facilitates easy maintenance with large LCD display and pneumatic front panel supports.
  • Enhances lab efficiency by supporting pathogen handling and sterilization processes.
  • Provides adaptability with dual operation modes and customizable features.

General


Applications
Clinical laboratories,Biotechnology,Covid-19 specimen handling,Microbiology,Pathogen handling,Biopharmaceuticals,Laboratory research,Pharmaceuticals
End products
Viral cultures,Microbial cultures,Vaccines,Sars-cov-2 samples,Dna/rna samples,Monoclonal antibodies,Clinical reagents,Recombinant proteins,Cell culture samples
Steps before
Disinfection,UV sterilization,Airflow setup
Steps after
Decontamination,UV sterilization
Input ingredients
potentially contaminated materials,pathogens,aerosols,samples requiring biosafety level,gaseous,vaporized or aerosolized chemicals,COVID-19 specimens
Output ingredients
HEPA-filtered exhaust air,contaminated pathogens,sterile materials,decontaminated samples,safe working environment
Market info
Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.

Technical Specifications


Model
BC-6F
Electrical requirements
110V 60Hz 1-Phase 500 watts
Chamber Dimensions
67 x 23.5 x 26" (WxDxH)
Material (Chamber)
304 stainless steel
Power outlet with cover
four,< 500 watts
Lights (LED)
22W x 2,> 1000 Lux
Lights (UV)
30W (Germicidal UV lamp,emission 253.7 nanometers)
Inflow Volume
825 CFM
Downflow Volume
710 CFM
Exhaust Volume
485 CFM
Inflow Speed
100-110 FPM
Downflow Speed
60-70 FPM
Top clearance
12" (recommended)
HEPA filter
Two,with 99.999% efficiency at 0.3 μm diameter
Noise
< 65 dB(A)
Unit/shipping dimensions
73.5 x 30.5 x 90.5" (fully assembled)
Shipping weight
820 Lbs

Operating Characteristics


Automation level
Automatic start/stop,flow speed adjustment
Batch vs. continuous operation
Batch operation
Cleaning method
UV Light Decontamination
Energy efficiency
Primary and secondary HEPA filtration
Airflow control
Automatic
Safety features
Abnormal airflow alarm,Filter replacement alarm

Material Compatibility


Cleanability
Easy-to-clean stainless steel chamber


NSF International Standard 49
Compliance with NSF/ANSI 49 (C0559576)
HEPA Filter Efficiency
99.999% at 0.3 μm

Physical Characteristics


Machine Footprint
73.5 x 30.5 x 90.5" (WxDxH,fully assembled)
Control Panel Type
LCD screen with soft touch buttons and remote control
Material
304 stainless steel
Front Safety Panel Material
Tempered safety glass,dual-layer,laminated,UV blocking
Caster Type
Four,with stationable feet
Stand Type
Fixed or Adjustable

Custom Options


Stand Type
Fixed / Adjustable
Vent Duct Connector
Top vent duct connector 6F
Controller type
LCD screen with soft touch buttons and remote control
