Non-contact accumulator for packaging lines

Experience seamless integration and reduced product interference with this innovative accumulator system, designed to maintain the integrity of delicate packs and high-speed packaging processes.

Accumulates and Transports Diverse Product Ranges

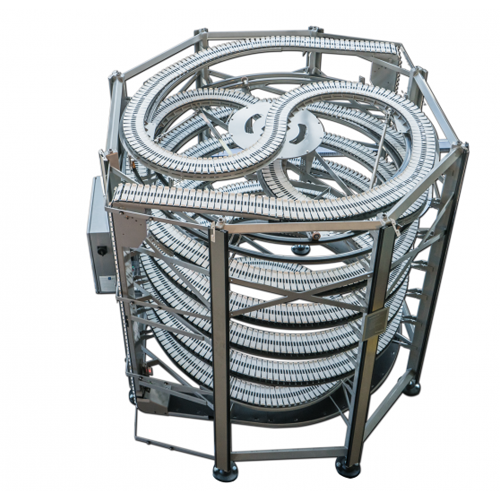

The AccuVeyor AVh-Series from AmbaFlex revolutionizes product handling with its patented non-touching accumulation system, ideal for packaging and logistics sectors. Unlike traditional conveyors, the AVh-Series maintains product integrity by keeping items on a single conveyor belt while adapting belt direction. It efficiently accumulates and transports products across a range of industries, accommodating items from snack boxes to liquid containers.

Engineered for complex production lines, it offers continuous, high-speed operation with a handling capacity of up to 15 kg/m and speeds reaching 40 meters per minute. With a wide accumulation length of up to 115 meters, it integrates seamlessly into existing setups, reducing bottlenecks and enhancing flow. The system is available for dry and washdown use, ensuring compliance with hygiene standards across food and personal care applications. AmbaFlex provides predefined configurations tailored to specific needs, supported by thorough engineering assistance for optimal integration.

Benefits

  • Enhances operational efficiency by minimizing product handling and damage with a patented non-touching system.
  • Increases line flexibility with scalable accumulation capacity up to 115 meters.
  • Optimizes space usage with a compact footprint of 2.2 sqm.
  • Supports diverse product types, including delicate and multi-pack items, ensuring versatility across industries.
  • Reduces maintenance time and costs with a reliable, continuous belt system requiring minimal intervention.

General


Applications
Personal care,Biscuits packs,Cartons,Delicate packs,Candy bars,Doypacks,Pouches,Filled liquid containers,Bottles,Multiple products transported parallel,Primary packing,Cans,Pharmaceuticals
End products
Cosmetic creams,Assorted confectionery packs,Digestive biscuits,Soda cans,Energy drink bottles,Juice pouches,Fragile gift sets,Snack boxes,Prescription drugs,Chocolate bars,Detergent doypacks
Steps before
Primary packaging,Filling liquid containers,Parallel product transportation
Steps after
Packing,Secondary packaging,Distribution
Input ingredients
cartons,candy bars,biscuits packs,personal care products,pharmaceuticals,filled liquid containers,pouches,doypacks,bottles,cans,delicate packs,multiple products
Output ingredients
no product contact,non-touching accumulation,FIFO output
Market info
AmbaFlex is renowned for its expertise in manufacturing innovative spiral conveyor solutions, specializing in dynamic material handling systems across various industries, enhancing efficiency and operational flow with customizable, space-saving designs.

Technical Specifications


Belt width range
140-200 mm | 5.5-8"
Load range
up to 15 kg/m | 10.2 lb/ft
Speed range
up to 40 m/min | 130 fpm
Accumulation length
up to 115 m | 377 ft
Footprint
2.2 sqm / 7 sqft
Nominal clear product height
< 140 mm / 5.5" or <260 mm / 10.2"

Operating Characteristics


Working mechanism
Non-touch,spiral accumulation
Batch vs. continuous operation
Continuous Inline
Load capacity
up to 15 kg/m
Speed range
up to 40 m/min
Accumulation length
up to 115 m
Automation level
No compromise
Changeover time
Minimal
Footprint
2.2 sqm

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
2.2 sqm / 7 sqft
Belt Width Range
140-200 mm | 5.5-8"
Nominal Clear Product Height
< 140 mm / 5.5" and < 260 mm / 10.2"

Custom Options


Accumulation Style
Non-touching system
Belt Width Range
140-200 mm
Load Range
up to 15 kg/m
Speed Range
up to 40 m/min
Accumulation Length
up to 115 m
Material Compatibility
Dry use,Wipe down,Wash down
Footprint
2.2 sqm
