Multilane vertical packaging for stick sachets

Optimize your packaging line with high-speed, multilane machines designed for efficient stick sachet production of ground coffee and soluble products.

Packages Ground Coffee and Soluble Products Efficiently

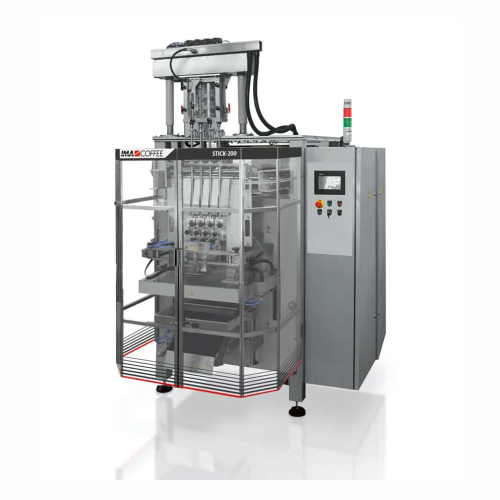

The STICK Series from IMA Group offers innovative multilane vertical machines designed to efficiently pack ground coffee and soluble products into stick sachets. Featuring an Open Frame architecture for easy cleaning and maintenance, these machines operate continuously at high speeds. With a fully servo-driven mechanism, they are capable of producing up to 1120 sachets per minute, accommodating sachet sizes from 0.5 cc to 50 cc. Controlled by a PLC with an intuitive HMI, the STICK-200 and STICK-400 models integrate seamlessly into any production line, optimizing material usage and increasing throughput significantly. These machines are ideal for coffee producers, soluble beverage manufacturers, and packaging companies needing reliable, high-speed packaging solutions.

Benefits

  • Enhances production efficiency with high-speed filling of up to 1120 sachets per minute.
  • Minimizes maintenance time with Open Frame architecture for easy access and cleaning.
  • Improves precision and reliability through fully servo-driven movement, ensuring consistent portioning.
  • Optimizes material usage, reducing packaging waste and costs.
  • Seamlessly integrates into existing lines with user-friendly PLC and HMI controls.

General


Applications
Soluble products,Ground coffee
End products
Soluble beverage sachets,Instant coffee sticks,Ground coffee sachets
Steps before
Grinding
Steps after
Packing
Input ingredients
ground coffee,soluble products,packaging material
Output ingredients
stick type packages,sachets
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Speed
Up to 1120 sachets per minute
Sachets Volume
0.5 cc to 50 cc
Sachets Width
15 – 60 mm
Sachets Length
Up to 240 mm
Number of Lines
Up to 16
Reel Diameter
450 mm
Core Size
3”
Speed Strokes/Min
Up to 70
Automation
Fully servo-driven,PLC-controlled with user-friendly HMI

Operating Characteristics


Automation level
PLC
Cleaning method
Manual / Open Frame design for easy cleaning
Batch vs. continuous operation
Continuous
Product versatility
Ground coffee and soluble products
Production speed
Up to 1120 sachets per minute
Machine accessibility
Open Frame architecture
Servo-driven movement
Fully servo-driven
User Interface
User friendly HMI

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Open Frame architecture
Compact footprint
Designed for easy cleaning and maintenance

Custom Options


Control Panel Type
PLC and HMI
Integration Possibilities
Fully servo-driven
Frame Design
Open Frame Architecture
Cleaning Accessibility
Easy Access
