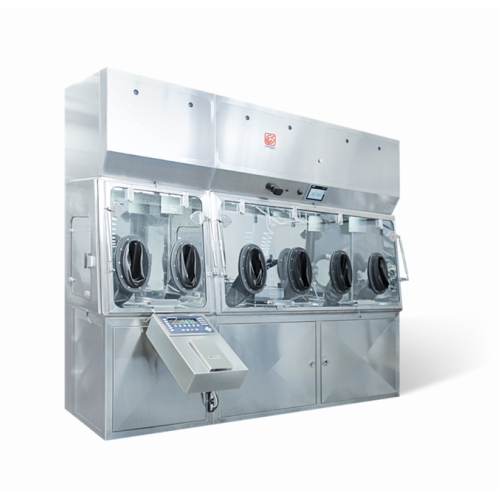

Modular dispensing and weighing isolator for pharmaceuticals

Achieve precise dispensing and weighing of high-potency pharmaceutical ingredients while ensuring maximum operator safety and product integrity.

Ensures Safe Dispensing and Weighing of Hazardous Compounds

The MDWI Modular Dispensing and Weighing Isolator from Comecer is engineered for pharmaceutical and biotech companies needing high containment during handling of hazardous compounds. This isolator offers a disciplined approach to dispensing and weighing with its fully PLC-controlled operation, ensuring precise and safe processing of active pharmaceutical ingredients (APIs). It employs a glove box system with OEB5-level containment, ideal for tasks like sampling and manual operations without contamination. Designed to handle cytotoxic drugs, monoclonal antibodies, and vaccines, this isolator ensures compliance with stringent industry standards. Its construction features high-grade stainless steel and optional rapid transfer ports for seamless integration with existing lab systems. Maintenance is simplified with internal washing systems and paperless recording, keeping operations efficient and compliant with GAMP 5 and CFR21 part 11. Customizable configurations and additional upgrades, such as continuous liners and glove leak tests, cater to specific process requirements, making it adaptable to diverse pharmaceutical settings.

Benefits

  • Enhances operator safety with OEB5-level containment.
  • Reduces human error and labor costs through full PLC automation.
  • Ensures product integrity with precise weighing and dispensing under controlled conditions.
  • Facilitates compliance with GMP and CFR21 standards.
  • Allows flexible process integration with customizable modules and upgrades.

General


Applications
Industrial pharmaceuticals,High active pharmaceutical ingredients (hapis),Biopharmaceuticals,Pharmaceutical compounding,Pharmaceuticals
End products
Enzyme replacement therapies,Cytotoxic drugs,Chemotherapy compounds,Vaccines,Monoclonal antibodies,Antibiotics,Hormones
Steps before
Material Handling,Formulation Preparation,Raw Material Inspection
Steps after
Sterilization,Quality Control,Packaging
Input ingredients
High Active Pharmaceutical Ingredients (HAPIs),potentially dangerous products,materials for manual sampling,materials for weighing,materials for dispensing
Output ingredients
dispensed pharmaceuticals,weighed pharmaceuticals,handled dangerous products,sample collected products
Market info
Comecer is known for manufacturing advanced containment and isolation systems, particularly in the pharmaceutical and nuclear medicine sectors, with expertise in custom-engineered equipment, ensuring high safety and compliance standards.

Technical Specifications


Automation
Fully PLC controlled
Human Machine Interface (HMI)
5.7” 256 color touch screen
Software Compliance
GAMP 5 compliant
Internal Material
Stainless steel 316L
External Material
Stainless steel 304
Containment Level
OEB5
Glove Ports
10” oval-shaped
Glove Material
Polypropylene,Neoprene
Cleaning Functionality
Internal spraygun
Filter Type
HEPA filter
Sampling and Dispensing
Manual
Rapid Transfer Ports (RTP)
Alpha and Beta parts available
High Containment Valves
DN100
Sensor Type
rH%+T sensor
Graphic Recorder
Paperless,CFR21 part 11 compliant
Glove Leak Test
Automatic on-board
Scale and Panel
Washable

Operating Characteristics


Automation level
Fully PLC controlled
Touchscreen interface
5.7” Human Machine Interface (HMI)
Software compliance
GAMP 5 compliant
Containment level
OEB5
Manual sampling capability
Yes
Weighing and dispensing operations
High Active Pharmaceutical Ingredients (HAPIs)
Glove port size
10” oval-shaped
Configuration options
Multiple glove chamber options
Internal washing capability
Spraygun
RH%+T sensor(s)
Available
Paperless graphic recorder
CFR21 part 11 compliant
Rapid Transfer Ports (RTP)
Alpha and beta parts
High Containment Valves
DN100

Material Compatibility


Cleanability
Internal washing with spraygun
Corrosive resistance
High-grade stainless steel 316L internally


CFR21 part 11 compliant
Paperless graphic recorder
ISO 9001
Certified Quality System
ISO 13485
Certified Quality System
ISO 45001
Health and Safety Management System
ISO 14001
Environmental Management System
ISO 50001
Energetic Management System

Physical Characteristics


Chamber Configuration
1 (4) gloves Chamber and 1 (2) gloves Pre-chamber
Optional Chamber
3 gloves chamber
Glove Ports
10” oval-shaped glove ports
Material
Stainless steel 316L internally,304 externally
Control Panel Type
5.7” Human Machine Interface (HMI) 256 color touch screen
Spraygun
For internal washing

Custom Options


Control panel type
5.7” HMI 256 color touch screen
Material of construction
Stainless steel 316L (internal),304 (external)
Glove port material
Polypropylene and Neoprene
Upgrades available
Rapid transfer port(s),liner(s),exhaust systems
Customization potential
Integration with other equipment case by case
Chamber configuration
1 (4) glove chamber,1 (2) glove pre-chamber,optional (3) gloves chamber
Glove test system
Automatic on-board glove leak test
Containment valves
High Containment Valves DN100 active/passive
RTP Types
Alpha and beta parts with container options
Platform material
Tubular sections in stainless steel AISI304
