Mobile mixing system for beverages in breweries

Optimize blending and carbonation processes with a mobile solution that streamlines dosing and mixing, ensuring consistent flavor and quality across your beverage lines.

Mixes, Doses, and Carbonates Beverages Efficiently

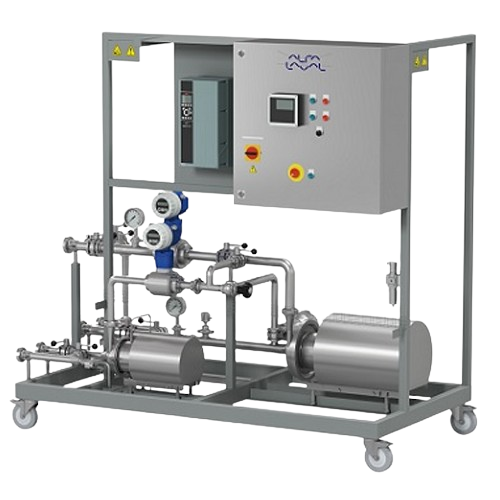

The Iso-Mix Mini from Alfa Laval is a versatile rotary jet mixing system engineered for breweries and beverage manufacturers needing efficient ingredient integration. Utilizing patented Rotary Jet Mixer technology, it provides fast and uniform mixing in a single tank, encompassing processes like mixing, dosing, carbonation, and gas addition in a compact, mobile unit. Equipped with two LKH centrifugal pumps, it circulates contents, ensuring precise ingredient dosing and continuous suspension of yeast culture for optimal contact with extract. Applicable for products such as carbonated soft drinks, ales, and ready-to-drink cocktails, it caters to diverse fermentation and blending needs. The Iso-Mix Mini integrates seamlessly into production lines with automation features such as batch dosing control, and supports efficient cleaning through a Rotary Jet Mixer-enabled CIP system, ensuring minimal downtime. Designed for flexibility, it connects via hard piping or flexible hoses and is easily movable to serve multiple tanks as required, offering breweries a cost-effective way to expand capacity while maintaining product consistency.

Benefits

  • Enhances production flexibility with mobile, multi-tank usability.
  • Improves product consistency through precise automated ingredient dosing.
  • Reduces process time by integrating mixing, dosing, and carbonation in a single operation.
  • Facilitates easy cleaning and maintenance with a built-in CIP system.
  • Optimizes yeast management, ensuring effective fermentation and quality control.

General


Applications
Beverages,Yeast management,Deaerated water,Flavours,Blended beverages,Fermented beverages,Syrups,Soft drinks
End products
Ginger ale syrup,Lager,Ready-to-drink cocktails,Deaerated mineral water,Yeast culture suspension,Cola syrup,Fruit-flavored sodas,Fruit essence concentrates,Carbonated soft drinks,Ale
Steps before
Fermentation,Yeast Management,Deaeration,Blending
Steps after
Carbonation,CIP (Cleaning in Place),Batch Preparation
Input ingredients
soft drinks,deaerated water,syrups,flavours,yeast,liquid ingredients,gas
Output ingredients
blended beverages,fermented products,deaerated products
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Mixing Technology
Rotary Jet Mixer
Mobility
Mobile,Wheel-mounted
Pumps
Two LKH Centrifugal Pumps
Dosing System
Automated Batch Control
Dosing Type
Liquid and Gas Dosing
Cleaning Method
CIP (Cleaning In Place)
Module Type
Prefabricated
Application Range
Tanks of Various Sizes
Control
Manual/Automated Gas Addition
Use Case
Fermentation,Blending,Mixing

Operating Characteristics


Working mechanism
Rotary Jet Mixer technology
Automation level
Automated batch control
CIP/SIP
Effective CIP with Rotary Jet Mixer
Batch vs. continuous operation
Batch operation
Changeover time
Mobile and portable setup

Material Compatibility


Abrasion resistance
High
Biological compatibility
Yes
Cleanability
Excellent (CIP capability)
Corrosive resistance (e.g. acids)
Yes

Physical Characteristics


Compact footprint
Wheel-mounted
Mobility
Mobile,prefabricated module
Tank compatibility
Range of tank sizes
Discharge method
Manual / Inline Continuous
Control panel type
Automated batch control

Custom Options


Control panel type
Automated batch control
Integration possibilities
Mobile,prefabricated module with pumps,valves,instruments
Mobility
Wheel-mounted module
Pump types
Main pump and dosing pump
Gas addition method
Manually controlled gas-addition point with gas flow meter
Connection type
Hard piping and flexible hoses
CIP method
Rotary Jet Mixer
Batch dosing system
Controls dosing pump and valve
