Mid-size belt-chamber vacuum packaging for smallgoods and seafoods

Optimize your packaging line with efficient mid-speed vacuum sealing, ideal for fresh meats and seafood, ensuring product integrity and extended shelf life.

Vacuum Packages and Seals Food Products

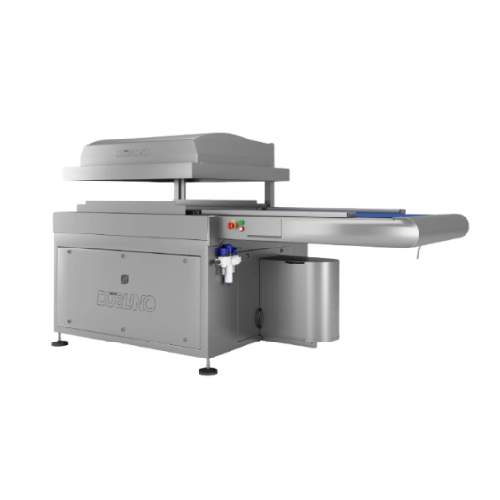

The Dublino 860 from Saccardo’s Starvac Systems is a mid-size belt-chamber vacuum packaging machine tailored for efficient food product packaging. This machine is ideal for small-to-mid-size processors of meats, cheeses, seafood, and pet foods. It features a robust vacuum system driven by a Busch R5 300m³/hr oil-lubricated rotary vane pump and uses dual 1000mm parallel seal bars to provide reliable sealing. Its adaptable design allows seamless integration into automated lines alongside shrink tunnels and driers, enhancing overall packaging efficiency. The Dublino 860 supports continuous, mid-speed operations for solid products, accommodating dimensions up to L800 x W450 x H260 mm.

Equipped with a multilingual panel touch screen, the machine’s PLC control offers various programs and remote diagnostics via Wi-Fi, ensuring easy operation and connectivity. It incorporates an FDA-certified conveyor belt with adjustable speed and a photocell for product detection, ensuring precision handling. The machine adheres to stringent food safety standards and offers easy cleaning and maintenance due to its straightforward construction. With its customizable options and engineering support, the Dublino 860 can be tailored to meet your specific production needs, while reducing energy consumption and enhancing product shelf-life.

Benefits

  • Enhances packaging efficiency with seamless integration into automated lines.
  • Reduces operational costs through continuous, mid-speed packing, minimizing downtime.
  • Ensure precise packaging with adjustable conveyor belt speeds and a product detection photocell.
  • Simplifies maintenance and cleaning with its straightforward, solid construction.
  • Extends product shelf-life with reliable vacuum sealing, preserving freshness.

General


Applications
Seafood,Smallgoods,Pet foods,Cheese,Fresh meats,Processed meats,Fish
End products
Salmon fillets,Prawns,Dry dog food,Beef steaks,Prosciutto,Sausages,Cheddar cheese
Steps before
Boning,Cutting,Preparation,Sorting
Steps after
Shrink Tunnel Processing,Drying,Box Packaging,Distribution
Input ingredients
fresh meats,processed meats,cheese,smallgoods,seafoods,petfoods,fish,heat-sealing bags,shrink bags
Output ingredients
vacuum packaged meats,vacuum packaged cheese,vacuum packaged smallgoods,vacuum packaged seafoods,vacuum packaged petfoods,vacuum packaged fish,shrunk wrapped products
Market info
Starvac Systems is known for manufacturing high-quality vacuum systems and engineered solutions tailored to various industrial applications. They are reputed for their innovation, reliability, and technical expertise in delivering custom-engineered vacuum equipment.

Technical Specifications


Packaging Speed
Up to 1.5 cycles/min
Packed Product Dimensions
Up to L800 x W450 x H260 mm
Infeed Conveyor Belt Width
800mm
Lid height clearance for product
160/260mm
Vacuum System
Busch R5 300m3/hr oil lubricated rotary vane vacuum pump
Sealing System
Dual x 1000mm parallel seal bars
Useful distance between seal bars
860 mm
Overall Dimensions
L 2705 x W 1350 x H 1630mm
Weight
Approx 600 kg
Automation
PLC control with various programs
Bags
All shrink bag types
Remote Control
Wi-Fi Internet connection for remote control and diagnostics

Operating Characteristics


Working Mechanism
Belt-chamber
Automation level
PLC-controlled
Batch vs. continuous operation
Batch
Cleaning Method
Manual
Changeover time
Adjustable
Integrated Steps
Vacuum packaging,sealing
CIP/SIP
N/A
Vacuum System
Busch R5 300m³/hr oil lubricated rotary vane pump
Production Speed
Up to 1.5 cycles/min

Material Compatibility


Cleanability
Simple and solid construction for easier cleaning
Biological compatibility
FDA-certified conveyor belt
Material types compatible
All shrink bag types
Heat sealable materials
Any type of heat-sealing bag

Physical Characteristics


Machine footprint
L 2705 x W 1350 x H 1630 mm
Weight
Approx 600 kg
Sealing system
Dual x 1000mm parallel seal bars
Useful distance between seal bars
860 mm
Lid height clearance for product
160/260 mm
Infeed conveyor belt width
800 mm
Control panel type
Multilingual touch screen panel
