Metal detector conveyor system for food safety

Ensure product integrity across high-speed production lines with robust metal detection technology designed for seamless integration and enhanced operational flexibility.

Detects and Inspects for Metal Contaminants

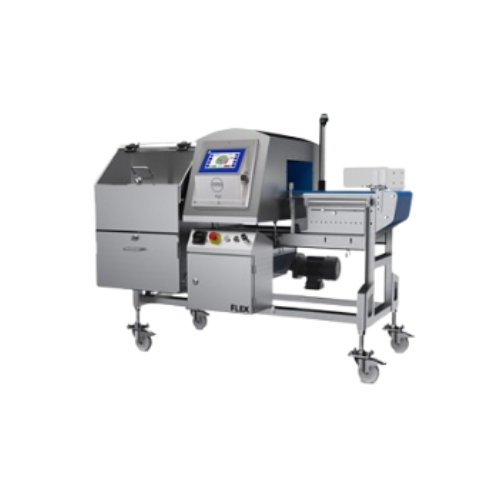

The FLEX Conveyor from Loma Systems is a versatile metal detector conveyor system designed to quickly address contamination challenges in food and pharmaceutical industries. Featuring the IQ4 range, it utilizes variable-frequency detection from 31 to 882 KHz, which optimizes detection accuracy across a variety of solid product types including bakery items, confectionery, snack foods, dairy products, and more.

Equipped with a robust IP69K-rated search head, the system ensures durability and reliability under harsh conditions, making it ideal for high-speed, continuous processing environments. Its fully adjustable conveyor settings allow for effortless integration into existing production lines and the ability to modify operational parameters, such as flow direction, with ease.

The 7-inch touchscreen offers an intuitive interface, reducing operator error and enhancing user interaction. The FLEX Conveyor system complies with stringent international standards, including IFS, BRC, and FSMA, and it can be customized with higher-level compliance options to meet the most demanding retail codes of practice.

For manufacturers requiring flexible operation and high levels of inspection performance, the FLEX Conveyor stands out by offering quick inspection solutions without the extended lead times of custom-built systems, all while maintaining efficiency and adherence to compliance standards.

Benefits

  • Ensures product safety and compliance with variable-frequency metal detection across diverse food and pharmaceutical applications.
  • Enhances operational efficiency with quick adjustments to belt speed and flow direction, minimizing production interruptions.
  • Reduces user errors and training time with an intuitive 7-inch touchscreen interface.
  • Maintains high hygiene standards with IP69K-rated components suitable for rigorous washdown procedures.
  • Meets stringent global safety standards, enabling easy adherence to regulatory requirements.

General


Applications
Snacks,Bakery,Dried foods,Dairy and egg products,Fish,Grains,Nutraceutical,Fruit,Convenience food,Other food,Nuts,Beverages,Confectionery,Meat,Cereals,Vegetables,Poultry,Food-to-go,Pharmaceutical
End products
Packaged chicken breasts,Soda cans,Rice cakes,Vitamin supplements,Potato chips,Protein powder,Frozen peas,Dried lentils,Egg cartons,Ground turkey,Cornflakes,Roasted almonds,Canned peaches,Yogurt cups,Bottled beverages,Filleted fish,Bread loaves,Chocolate bars,Ready-to-eat sandwiches
Steps before
Sorting,Pre-packaging,Weighing,Inspection
Steps after
Packaging,Labelling,Distribution,Quality control
Input ingredients
bakery products,confectionery,snack foods,convenience food,food-to-go,dairy products,egg products,meat,poultry,fish
Output ingredients
inspected bakery products,inspected confectionery,inspected snack foods,inspected convenience food,inspected food-to-go,inspected dairy products,inspected egg products,inspected meat,inspected poultry,inspected fish
Market info
Loma is known for manufacturing industrial inspection equipment, specializing in metal detection, checkweighing, and X-ray inspection systems, widely used in the food, pharmaceutical, and packaging industries for quality control and ensuring product safety and compliance.

Technical Specifications


Aperture size
350 x 100 mm,150 mm,200 mm | 450 x 100 mm,150 mm,200 mm,250 mm | 550 x 100 mm,150 mm,200 mm,250 mm
Belt speed
Adjustable
Belt type
Modular (Flush Grid)
Line height
800 to 950 mm variable
Power Requirements
230v or 115 1ph / N+E 50 or 60Hz
System Length
1500 to 2100 mm
Standard Belt Width
300 mm,400 mm,500 mm
Touchscreen size
7” color touchscreen
Detection range
31 to 882 KHz
IP Rating
IP66,suitable for low-pressure washdown
Automation
User interface with minimalizing user errors

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Inline Continuous
Cleaning method
Manual and Washdown upgrade available
Changeover flexibility
Flow direction change with flip of a switch
Touchscreen usability
Improved 7” color touchscreen

Material Compatibility


Cleanability
Suitable for low-pressure washdown


Retail Codes of Practice compliance
Higher Level Compliance

Physical Characteristics


System Length
1500 to 2100 mm
Line Height Option
800 to 950 mm variable
Standard Belt Width
300 | 400 | 500 mm
Apertures Available (W x H mm)
350 x 100,150,200 | 450 x 100 x 150,200,250 | 550 x 100,150,200,250
Material of Construction
304 Brushed stainless steel

Custom Options


Control panel type
7" color touchscreen
Integration possibilities
Conforms to IFS,BRC,and FSMA standards
Belt Speed
Adjustable
Belt Length
Variety of lengths available
Flow direction change
Switch operated
Washdown upgrade
Available
