Membrane pressure relief valve for silo protection

Ensure immediate pressure stabilization in your bulk storage silos with a responsive solution designed to mitigate risks and enhance safety during fluctuating conditions.

Regulates and Balances Silo Pressure

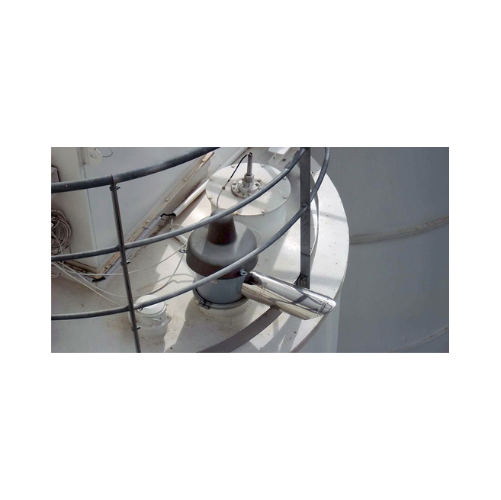

The VHS-C Membrane Pressure Relief Valve from WAMGROUP is a crucial engineered-to-order solution designed to maintain optimal pressure levels within silos, preventing structural damage from unexpected pressure fluctuations. This valve enhances safety by instantaneously re-establishing pressure balance through its innovative membrane technology, making it ideal for industries ranging from construction to pharmaceuticals.

The lightweight, corrosion-free design features a SINT engineering polymer casing with a vertical carbon or stainless steel spigot for durability in harsh environments. Its real-time response to pressure changes ensures that air can seamlessly flow in or out, maintaining stability without the delays of spring-loaded mechanisms.

The VHS-C valve is adaptable for diverse applications, including concrete block manufacturing, detergent production, and fertilizer processing. Its seamless integration into existing systems is facilitated by its mechanical setup compatible with inductive signaling sensors, allowing for efficient automation and remote monitoring.

Designed for low maintenance, the self-cleaning elbow and limited component count minimize operational downtime and costs. Configurable options, such as EN 1935/2004-compliance and bird nets, provide further customization to meet specific industry standards and operational conditions. This valve not only ensures silo safety but also reduces environmental impact by minimizing emissions during use.

Benefits

  • Ensures silo integrity by instantaneously balancing pressure to prevent structural damage.
  • Minimizes environmental impact through reduced emissions.
  • Lowers operational costs with a self-cleaning design requiring minimal maintenance.
  • Enhances plant safety and regulatory compliance with dust-conveying capabilities.
  • Offers resilience in corrosive environments due to polymer casing and stainless steel options.

General


Applications
Chemicals,Animal feed,Waste water treatment,Lime dosing,Detergents,Pharmaceuticals,Building materials,Food processing,Plastics,Varnishes,Minerals,Refractory products,Paints,Rubber,Fertilizers,Concrete
End products
Laundry detergent,Processed limestone,Plaster of paris,Concrete blocks,Acrylic paint,Firebricks,Npk fertilizers,Treated wastewater,Rubber sheets,Hydrated lime,Pvc pipes,Gloss varnish,Paracetamol tablets
Steps before
Bulk Solids Handling,Silo Filling,Dust Collection
Steps after
Dust Recovery,Emissions Handling,Ventilation
Input ingredients
air from atmosphere,abnormal pressure inside silo,excess pressure
Output ingredients
air flow to atmosphere,re-established pressure balance,conveyed emissions
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Casing diameter
273 mm (10 in)
Material
Polymer body,Carbon steel or 304 stainless steel spigot
Membrane type
Elastic membrane
Connection type
Flanged connection spigot
Pressure balance mechanism
Counterweight kit
Exhaust outlet
For duct connection
Automation level
Inductive signaling sensor
Special properties
Clogging and formation of material crusts prevention

Operating Characteristics


Working mechanism
Pressure relief via membrane
Pressure rebalancing speed
Real-time
Automation level
Manual / Inductive signaling sensor
Changeover time
Instantaneous
Batch vs. continuous operation
Continuous
Self-cleaning capability
Yes
Clogging prevention features
Membrane and elbow geometry
Environmental impact reduction
Reduced emissions

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Cleanability
Yes
Abrasion resistance
Yes

Product type Characteristics


Emission control
Reduced emissions

Physical Characteristics


Casing diameter
273 mm (10 in)
Body shape
Cylindrical
Material
SINT engineering polymer
Weather protection cover
Yes
Exhaust outlet spout
For connection to centralised suction system

Custom Options


Weather protection cover material
SINT engineering polymer
Membrane material
Special geometry,innovative materials
Spigot material
Carbon steel or 304 stainless steel
Exhaust outlet spout connection
Centralised suction system
