Melting mixer for bean to bar chocolate production

Achieve seamless chocolate texture and remarkable flavor enhancement with this advanced melting mixer, designed for efficient conching and homogenization in artisan chocolate production.

Conches and Mixes Chocolate for Quality Production

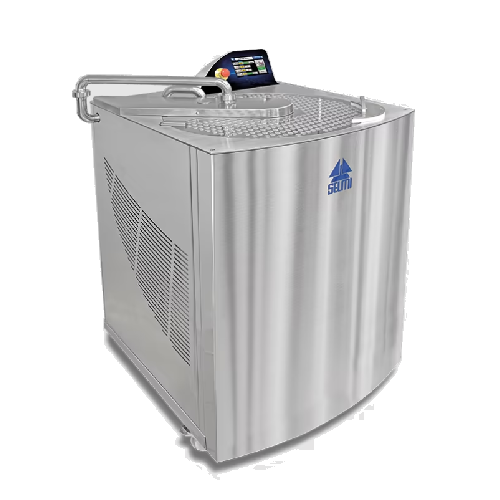

The Conca 200-400 from Selmi is a robust solution for chocolate manufacturers, artisanal chocolatiers, and bean-to-bar producers seeking to enhance their chocolate production process. This equipment stands out due to its innovative inertial rotary system, which, alongside a central mixer, provides superior conching by precisely mixing and oxygenating chocolate. This results in an even, defect-free product with enriched aromatic profiles, suitable for a variety of high-end chocolate products like dark and milk chocolate bars, ganache-filled chocolates, and flavored bars. With a capacity of handling up to 350 kg and operating in cycles of 8 to 12 hours, it is ideal for medium to large-scale chocolate workshops. The touch screen control panel allows operators to customize parameters such as duration, temperature, and emulsion intensity, ensuring the equipment integrates seamlessly into existing production lines. The Conca 200-400 is energy-efficient, offering precise control over the process while minimizing resource consumption. Built for durability, it facilitates easy maintenance, making it a reliable choice for intensive chocolate production environments.

Benefits

  • Enhances product consistency and flavor profile through efficient homogenization and oxygenation.
  • Customizable parameters enable precise control, optimizing production for varied chocolate products.
  • Increases batch capacity with a robust design suitable for medium to large-scale operations.
  • Minimizes energy usage with an innovative design that ensures efficient resource utilization.
  • Streamlines integration into existing production lines with user-friendly PLC touch screen controls.

General


Applications
Chocolate confectionery,Bean to bar chocolate,Chocolate spreads,Specialty chocolates,Chocolate
End products
Bean to bar chocolate chunks,Artisan chocolate truffles,Dark chocolate bars,Gourmet specialty chocolates,Chocolate pralines,Ganache-filled chocolates,Flavored chocolate bars,Milk chocolate bars,Specialty chocolate squares,Spreadable chocolate creams
Steps before
Roasting,Crushing (Winnowing),Grinding
Steps after
Moulding,Tempering,Enrobing,Panning,Packing
Input ingredients
cocoa beans,nibs
Output ingredients
chocolate,cocoa mass
Market info
Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.

Technical Specifications


Tank Capacity
200 kg / 350 kg
Power Requirement
4 Kw / 5 Kw
Conching Time
8–12 hours
Dimensions (Conca 200)
620x710x1460 mm
Dimensions (Conca 400)
950x960x1370 mm
Electrical Specification
400 V three phase - 50 Hz
Automation
Touch screen control panel
Mixing System
Inertial rotary system with orbital rotation
Oxygenation
Variable air flow

Operating Characteristics


Working mechanism
Inertial rotary system with stirrer and orbital rotation
Integrated steps
Conching,oxygenation,and homogenization
Control system
Touch screen control panel
Automation level
Customizable operation settings
Batch vs. continuous operation
Batch
Cleaning method
Manual
Energy efficiency
High

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product compatibility
Chocolate

Physical Characteristics


Tank capacity
200 kg (Conca 200) / 350 kg (Conca 400)
Dimensions
Conca 200
Machine footprint
Compact
Discharge method
Dispensing spout on the right side
Control panel type
Touch screen control panel
Mixing system
Inertial rotary system with orbital rotation

Custom Options


Control panel type
Touch screen
Operating parameters customization
Duration,temperature,emulsion intensity,oxygenation
Mixing system
Inertial rotary system with orbital rotation
