Medical drying cabinet for surgical instruments and glassware
Achieve optimal drying for precision instruments and glassware with enhanced temperature control and customizable programs, ensuring reliable performance and faster turnaround in sterile processing and laboratory environments.
Dries and Monitors Surgical Instruments and Glassware

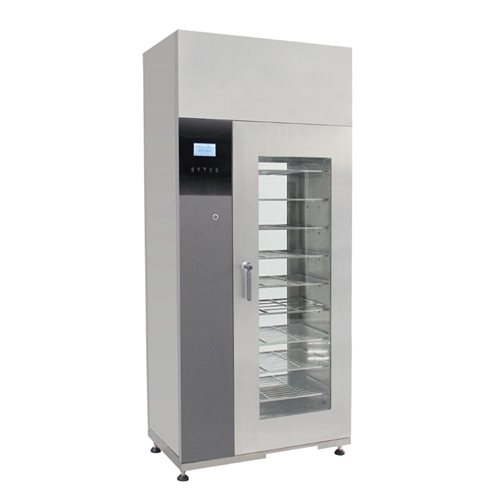

The YGZ series medical drying cabinets, including models YGZ-1600D, YGZ-1600S, YGZ-1000, and YGZ-500 from Shinva, are designed for efficient drying of surgical instruments, glassware, and other medical equipment. Engineered for healthcare and research facilities, these cabinets solve the challenge of moisture removal with precise temperature control and monitoring. Operating on a principle of controlled hot air circulation, they maintain uniform drying conditions across all items. The cabinets are suitable for various end-products like scalpels, anesthesia tubes, and glass test tubes, ensuring they are sterilized and ready for use.
Capacities range widely, with larger models able to handle up to 36 anesthesia tubes or 16 DIN standard trays per cycle. Advanced features include independent drying programs, an intuitive LCD interface, and a reliable American Rabbit 2000 chip control system. Constructed from high-quality 304 stainless steel, the cabinets offer thermal insulation and a glass viewing door for both heat retention and operational oversight.
Compliant with stringent healthcare standards, these drying cabinets are easy to clean and maintain. Their modular design allows customization to fit specific operational needs, while mobile castors and fixed footings offer versatile installation options. Whether in a sterile processing department or a scientific laboratory, the YGZ series delivers reliable performance, ensuring your critical equipment is dried efficiently and effectively.
Benefits
- Ensures optimal instrument readiness with precise drying for sterility assurance.
- Increases operational efficiency with large capacity and configurable drying programs.
- Enhances user convenience with intuitive LCD controls and simple maintenance features.
- Minimizes heat loss with superior insulation and high-quality stainless steel construction.
- Adapts easily to diverse facility needs with customizable configurations and mobility features.
- Applications
- Medical research institutions,Scientific laboratories,Hospital sterile processing department,Respiratory therapeutic items,Operating room,Healthcare facilities,Surgical instruments,Glassware,Plastic items,Stainless steel ware
- End products
- Surgical scissors,Forceps,Surgical trays,Stainless steel bowl,Breathing tube,Thermometers,Anesthesia tube,Humidification bottle,Glass test tubes,Petri dishes,Respiratory masks,Catheter,Scalpel,Plastic beakers,Pipettes,Iv tubing,Glass bottles
- Steps before
- Washing,Disinfection
- Steps after
- Sterilization,Packing
- Input ingredients
- surgical instruments,glassware,respiratory therapeutic items,catheter,anesthesia tubes,DIN standard trays,stainless steel dishes,stainless steel bowls,breathing tubes,humidification bottles,plastic items
- Output ingredients
- dried surgical instruments,dried glassware,dried respiratory therapeutic items,dried catheter,dried anesthesia tubes,dried DIN standard trays,dried stainless steel dishes,dried stainless steel bowls,dried breathing tubes,dried humidification bottles,dried plastic items
- Market info
- Shinva is known for manufacturing medical equipment, including sterilization and disinfection devices, radiotherapy products, and diagnostic imaging systems, demonstrating expertise in healthcare solutions and a strong reputation for quality in the medical industry.
- Capacity
- 36 anesthesia tubes or 9 DIN trays
- Drying Temperature Range
- 40–90°C
- Drying Time Range
- 0–500 min for YGZ-1600 series,0–99 min for YGZ-500 series
- Material
- 304 Stainless Steel
- Control System
- American Rabbit 2000 chip,PLC for YGZ-1000
- Program Options
- 10 sets for YGZ-1600 series,3 default and 2 custom for YGZ-1000
- Door Type
- Single-door and double-door
- Water Discharge
- Built-in water collector
- Automation level
- Manual / PLC
- Batch vs. continuous operation
- Batch
- Cleaning method
- Manual
- Integrated drying programs
- 10 sets with adjustable parameters
- Drying customization
- Temperature and Time adjustable
- Application variety
- Surgical instruments,glassware,plastic items
- Control interface
- LCD screen
- Abrasion resistance
- Suitable for surgical instruments and glassware
- Biological compatibility
- Medical grade materials
- Cleanability
- easy to clean due to stainless steel
- Corrosive resistance
- 304 stainless steel resistant to corrosion
- Thermal expansion
- Tolerant to drying range
- Temperature resistance
- Upto 90°C
- Chemical compatibility
- Compatible with detergents used in medical settings
- Chamber Material
- 304 Stainless Steel
- Door Type
- Single-door / Double-door
- Visual Window
- Glass Window
- Footprint
- Bench-top / Small-size
- Control System
- American Rabbit 2000 chip / PLC-controlled
- Door Type
- Single-door / Double-door
- Drying Programs
- Independent / 10 default programs / adjustable
- Temperature Range
- 40℃~90℃ for YGZ-1600,50~60℃ for YGZ-500
- Time Setting
- 0~500min,1~99min,0~9999s (based on model)
- Material
- 304 Stainless Steel / Plastic Spray
- Display
- LCD screen
- Program Customizability
- 2 custom programs (YGZ-1000 series)
