Mbr module for wastewater treatment

Optimize your wastewater management with efficient membrane bioreactors, designed to enhance effluent quality while reducing aeration energy consumption and operational footprints.

Filters and Purifies Industrial Wastewater

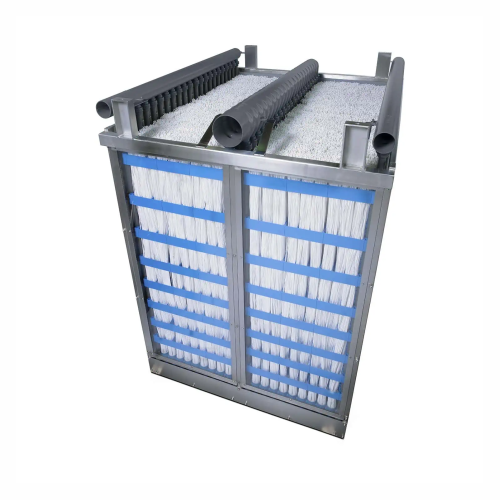

The PURON® MBR and PULSION® MBR Modules from Kovalus Separation Solutions are engineered to optimize wastewater management across diverse industrial applications. Featuring reinforced PVDF hollow fibers, the PURON® MBR minimizes clogging while effectively filtering solids and particulates. The PULSION® MBR uniquely employs a pulsating large bubble through its chambered fiber bundle, reducing aeration energy by up to 40% and providing improved recirculation. Suitable for industries such as dairy, food, beverage, and mining, these modules consistently deliver high-quality effluent, lowering BOD and nitrogen levels without the need for air cycle valves. Available as pre-engineered or custom solutions, they integrate seamlessly into existing operations with reduced energy consumption and economic benefits from a smaller equipment footprint. With optional configurations for ease of maintenance and enhanced system efficiency, these modules are a robust choice for both municipal and industrial wastewater challenges.

Benefits

  • Reduces operational energy costs by up to 40% with optimized aeration.
  • Minimizes equipment footprint, decreasing installation and infrastructure expenses.
  • Ensures high-quality effluent, lowering BOD and nitrogen levels efficiently.
  • Enhances system reliability with virtually unbreakable hollow fiber construction.
  • Integrates seamlessly into existing processes, reducing disruption and setup time.

General


Applications
Gas,Biogas,Paper,Life sciences,Wastewater treatment,Tertiary treatment,Dairy,Food,Automotive,Mining,Sludge thickening,Sour gas,Oil,Environmental,Textile,Beverage,General industrial,Pulp,Metals refining
End products
Refined metals,Cheese,Biotechnological products,Automotive coolant,Soft drinks,Beer,Textile fibers,Wine,Bleached paper,Purified sour gas,Biodiesel,Recycled paper,Yogurt,Juices,Biofuel,Milk,Engine degreaser,Pharmaceuticals,Treated wastewater
Steps before
Biological treatment,Sludge thickening,Anaerobic digestion,Pre-aeration
Steps after
Effluent discharge,Tertiary treatment,Nitrogen removal,Effluent polishing
Input ingredients
municipal wastewater,industrial wastewater,food waste streams,dairy waste streams,beverage waste streams,industrial waste streams
Output ingredients
effluent free of TSS,reduced BOD concentrations,reduced nitrogen concentrations,high-quality effluent
Market info
Kovalus Separation is known for manufacturing industrial engineered-to-order (ETO) separation equipment, specializing in tailored solutions for complex filtration and separation needs, with a strong reputation for innovation, quality, and reliability in various industries.

Technical Specifications


Aeration energy reduction
Up to 40%
Footprint reduction
25%
Fiber Material
Reinforced PVDF
Energy Usage
Minimized continuous air flow
Airflow size reduction
50%
BOD and nitrogen removal
Reduce to 5 and 10 mg/L
Air delivery equipment size reduction
50%
Fiber Arrangement
Fixed only at the bottom
Application
Municipal and industrial wastewater
Effluent Quality
Consistent high-quality effluent
Modules
Pre-engineered package or modular systems
Flow Requirement
Meets any flow requirement
Automation
Optimized design and layout

Operating Characteristics


Working mechanism
Hollow fiber membrane filtration
Integrated steps
Aeration,permeate drawn through membrane
Energy efficiency
Up to 40% aeration energy reduction
Automation level
PLC-controlled
CIP/SIP
Capable
Cleaning method
CIP
Batch vs. continuous operation
Inline Continuous
Aeration method
Centered nozzle,piston-like pumping
Footprint reduction
25% reduction
Pumping action
Piston-like pulse

Material Compatibility


Abrasion resistance
High
Biological compatibility
Yes
Corrosive resistance (e.g. acids)
Yes
Cleanability
High

Product type Characteristics


Application Area
Municipal and Industrial Wastewater

Physical Characteristics


Compact footprint
Small,suitable for reduced space
Control panel type
PLC interface
Discharge method
Bottom fixed hollow fiber design
Tank shape and size
Customizable based on application
Automation
Manual/Auto integration
Aeration design
Single central aeration nozzle

Custom Options


Control panel type
PLC / HMI
System configuration
Pre-engineered / Modular / Custom designed
Module material
Reinforced PVDF hollow fibers
Aeration system
PULSION® large bubble chamber
Air delivery equipment size
Reduced by 50%
Tank sizing
Optimized design,reduced size
