Manual Cip system for food processing hygiene

Designed for small-scale hygiene needs, this mobile clean-in-place system ensures effective cleaning and bacteria reduction, safeguarding your product quality during critical production processes.

Cleans, Sanitizes, and Reduces Bacteria in Production

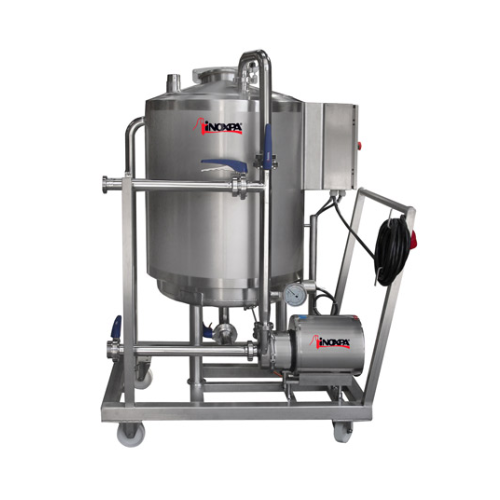

The CIP Manual Mobile System from INOXPA is designed for facilities in the food, beverage, dairy, bakery, cosmetic, and pharmaceutical industries seeking reliable cleaning and sanitization solutions. Its manually operated design ensures flexible deployment within smaller production environments, making it a versatile asset for routine cleaning tasks. The system is built with a 300L insulated AISI 316L tank for preparing cleaning solutions and features an electric resistance heating mechanism with precise temperature control. This mobile unit perfectly fits environments where automation isn’t feasible, yet maintaining hygiene standards is crucial.

Applications include cleaning yogurt, cream cheese, beer, and liquid soap production lines, effectively removing impurities and reducing bacteria levels. The system supports manual operation, offering scalable sanitation for smaller facilities. Energy efficiency is achieved through an electrically heated tank and a mineral wool insulation layer, minimizing heat loss. The system’s stainless steel construction ensures durability and resistance to corrosion, vital for chemical compatibility in sensitive environments.

Integration into your production line is seamless, with options for a detergent concentration dosing pump and monitoring via conductivity meters, tailored to your operational needs. The manual mobile CIP system is a dependable solution for maintaining product integrity and hygiene without compromising on customization or engineering support.

Benefits

  • Simplifies sanitation processes for small-scale operations, increasing overall efficiency.
  • Reduces contamination risks with precise temperature-controlled cleaning.
  • Mobile design enhances flexibility and reduces the need for multiple systems across a facility.
  • Robust stainless steel construction ensures longevity and chemical resistance.
  • Provides customizable options to meet specific hygiene and process needs.

General


Applications
Food industry,Cosmetic and pharmaceutical industry,Dairy industry,Bakery industry,Beverage industry
End products
Pastry cream,Cream cheese,Bread dough,Shampoo,Yogurt,Liquid soap,Soft drinks,Body lotion,Beer
Steps before
Product recovery,Mixing and Blending,Solids handling
Steps after
Sterilization,Packing,Quality Inspection
Input ingredients
cleaning solution,water,detergent
Output ingredients
eliminated impurities,reduced bacteria levels,cleaned industrial equipment
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Tank Capacity
300 L
Material of Tank
AISI 316L
Pump Type
Estampinox EFI
Pump Power
3 - 4 kW
Heating Power
18.5 kW
Control Panel
Stainless steel electric panel
Insulation
Mineral wool
Base Frame Material
AISI 304
Seal Material
Ceramic and Carbon

Operating Characteristics


Cleaning method
CIP / Manual
Automation level
Manual
Batch vs. continuous operation
Manual batch operation
Energy efficiency
18.5 kW electrical resistance
Temperature control
Electrical resistance heating with temperature regulation
Mobility
Portable system with wheels
Capacity
300L tank
Flow control
Manual flow rate control

Physical Characteristics


Tank Capacity
300 L
Tank Material
AISI 316L (1.4404)
Base Frame Material
AISI 304 (1.4301)
Base Frame
With wheels
Insulation Material
Mineral wool
Piping Material
AISI 316L (1.4404)
Control Panel Type
Stainless steel electric panel
Heating Method
Electrical resistance heating
Mobility
Portable
System Components
Insulated tank,manual butterfly valves,collectors

Custom Options


Tank Material
AISI 316L (1.4404)
Piping Material
AISI 316L (1.4404)
Base Frame Material
AISI 304 (1.4301)
Tank Insulation
Mineral wool
Control Panel
Stainless Steel Electric Panel
Pump Type
Estampinox EFI 3,4 kW
Electrical Resistance
18.5 kW
Manual Operation
Butterfly Valves
