Lyophilized pellet dosing technology

Eliminate mechanical strain and static charge in your lyophilized pellet dosing process with this air flow system, ensuring precise and gentle handling for sensitive applications.

Precisely Doses and Handles Lyophilized Pellets

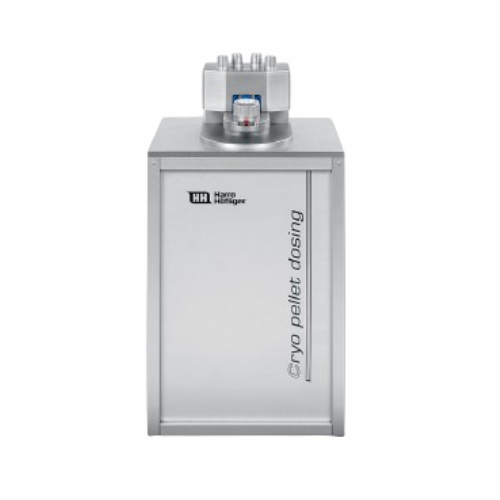

The Lyo Bead Dispenser from Harro Höfliger offers a breakthrough in handling and dosing delicate lyophilized pellets, a crucial step for pharmaceutical and diagnostic tool manufacturers. Utilizing an air flow dosing system, it operates without mechanical action or static, preserving pellet integrity. Ideal for small batch production and development, its semi-automatic design ensures precise counting and placement. This dispenser’s flexibility allows integration into existing lines and scalability with multiple dosing stations. It supports inert gas atmospheres, enhancing the preservation of sensitive materials. Maintenance and cleaning are straightforward, aided by its modular setup. Ideal for producing lyophilized vaccine doses, diagnostic reagent pellets, and more, it adheres to the rigorous standards expected in pharmaceutical environments.

Benefits

  • Ensures pellet integrity with non-contact air flow dosing, eliminating mechanical stress and static.
  • Efficiently scales from development to production with customizable dosing stations.
  • Reduces contamination risk through easy integration of inert gas atmospheres.
  • Streamlines setup and maintenance processes, reducing operational downtime.
  • Supports diverse applications, from vaccines to diagnostic tools, enhancing production versatility.

General


Applications
Titer plates,Vaccines,Vials,Diagnostic tools,Lab-on-a-chip systems,Cartridges,Discs
End products
Lyophilized vaccine doses,Diagnostic reagent pellets,Microfluidic assay kits,Lyophilized biopharmaceutical vials,Injectable medication cartridges,Elisa assay titer plates,Dry reagent discs
Steps before
Lyophilization,Bulk Feeding,Pellet Formation
Steps after
Container Sealing,Labeling,Packaging
Input ingredients
lyophilized pellets,cryo pellets,freeze-dried pellets
Output ingredients
vaccines,diagnostic tools,lab-on-a-chip systems,vials,discs,cartridges,titer plates
Market info
Harro Hoefliger is known for its expertise in manufacturing custom, engineered-to-order packaging and production equipment, particularly for the pharmaceutical, healthcare, consumer goods, and chemical industries, with a reputation for precision, innovation, and quality engineering solutions.

Technical Specifications


Output
20-30 pellets/min
Dosing methods
Variable depending on the process stations
Anti-static Handling
No mechanical strain or static charge
Automation
Semi-automatic
Compatibility
Scalable (single or multiple dosing stations)
Container Compatibility
Wide range of containers
Processing Atmosphere
Inert gas atmosphere possible

Operating Characteristics


Working mechanism
Air flow dosing
Integration capability
Easily integrated into lines
Scalability
Single or multiple dosing stations
Automation level
Semi-automatic
Air incorporation control
No electrostatic charging
Cleaning method
Easy setup,operation,cleaning and maintenance
Batch vs. continuous operation
Batch operation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container Variety
Vials/Cartridges/Discs

Physical Characteristics


Discharge method
Air flow dosing
Customized options
Interchangeable format parts

Custom Options


Control panel type
Touchscreen / HMI
Integration possibilities
Line integration
Interchangeable format parts
Various cartridges/containers
