Liquid nitrogen freezer for sensitive food and fermentation ingredients

Achieve rapid, uniform freezing of sensitive food and fermentation-derived products, maintaining their quality and bioactivity, while reducing process time and ensuring ease of handling and storage.

Freezes and Pelletizes Sensitive Liquid Products

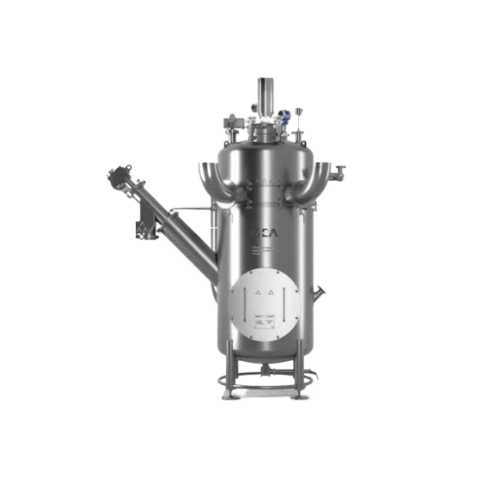

The Liquid Nitrogen Freezer range from GEA, including models LNF-6, LNF-100, LNF-220, and LNF-500, is designed to efficiently freeze and pelletize sensitive liquid products across various industries. Utilizing liquid nitrogen at -196 °C, it rapidly freezes products into uniformly sized pellets, crucial for the preservation of sensitive products like microbial cells and enzymes.

Commonly integrated into food, beverage, and pharmaceutical production lines, the freezer supports applications ranging from instant coffee granules to active bacterial starters. Its compact design features a motorized agitator to prevent agglomeration and a CIP-compatible system to ensure hygienic operation.

With throughput capacities ranging from 100 to 500 kg/h, the GEA Liquid Nitrogen Freezer is available in several industrial sizes and a pilot unit for batch trials, making it suitable for both small-scale testing and large-scale production. The system effectively reduces processing time and enhances product quality, while its modular design allows for easy installation and maintenance.

Additionally, the system offers substantial operational savings through minimal product loss and simple maintenance, supporting sustainable production practices.

Benefits

  • Ensures rapid freezing, preserving the integrity and viability of sensitive products.
  • Minimizes product loss with a dust-free, free-flowing pellet production process.
  • Facilitates easy cleaning and maintenance with CIP compatibility and simple disassembly.
  • Supports efficient production with high throughput capabilities and reduced freeze-drying times.
  • Offers flexible integration for both pilot and industrial-scale operations.

General


Applications
Food,Fermentation-derived ingredients,Seafood,Lactoferrin,Microbial cells,Bioactive products,Pet food,Prepared meals,Beverage,Meat,Lactic acid bacteria,Enzymes,Vegetables,Bacterial cultures,Instant coffee,Fruit
End products
Smoothies,Fermented probiotics,Soups,Nutraceutical compounds,Yogurt cultures,Lactoferrin supplements,Active bacterial culture starters,Vegetable chips,Enzyme supplements,Dry pet kibble,Frozen prepared pasta dishes,Instant coffee granules,Preserved microbial strains,Freeze-dried fruit slices,Frozen meat dumplings,Seafood medleys
Steps before
Fermentation,Liquid Preparation,Harvesting,Feed Arrangement
Steps after
Freeze Drying,Storage,Packing,Distribution
Input ingredients
sensitive food ingredients,beverage ingredients,fermentation-derived ingredients,liquid products,microbial cells,bacterial cultures
Output ingredients
frozen pellets,stable pellets,uniformly frozen pellets,dust-free pellets,free-flowing pellets,frozen bacterial cultures
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Freezing temperature
-196°C
Pellet size
2–4 mm
Throughput capacity
100–500 L/h
Nitrogen consumption
3-4 kg of nitrogen per kg of product
Model
LNF-6,LNF-100,LNF-220,LNF-500
Freezing process
Immersion in liquid nitrogen
Processing speed
Extremely fast processing
Ventilation system
Prevents nitrogen gas escaping

Operating Characteristics


Working Mechanism
Liquid Nitrogen Immersion
Integrated Steps
Freezing and Pelletizing
CIP Principles
CIP-compatible
Batch vs. Continuous Operation
Batch
Automation Level
Simple Operation
Cleaning Method
CIP / Disassembled Sanitization
Energy Efficiency
Consideration of nitrogen consumption
Product Handling
Free-flowing,Dust-free Pellets

Material Compatibility


Cleanability
Easy to clean
CIP compatible
Corrosive resistance (e.g. acids)
Compatible with liquid nitrogen environment
Biological compatibility
Suitable for food and sensitive biotech product processing
Density/particle size
Typically 2–4 mm pellet size

Product type Characteristics


Suitable for sensitive products
Yes
Suitable for microbial cells
Yes

Physical Characteristics


Machine footprint
Compact
Pellet size
2–4 mm
Tank shape
Conical outlet
Feed method
Liquid feed arrangement
Discharge method
Screw conveyor
Control panel type
PLC

Custom Options


Control panel type
Touchscreen HMI
Integration possibilities
SCADA/PLC integration
Modular design
Yes
Pilot unit availability
Yes
Size options
100–500 L/h capacity
