Large batch gyraton® mixer for homogenizing moist and poorly flowing materials

Optimize your production line with this mixer, designed to efficiently homogenize large batches of challenging materials, including moist and poorly flowing substances, while requiring minimal energy and installation space.

Mixes and Homogenizes Large Batches Efficiently

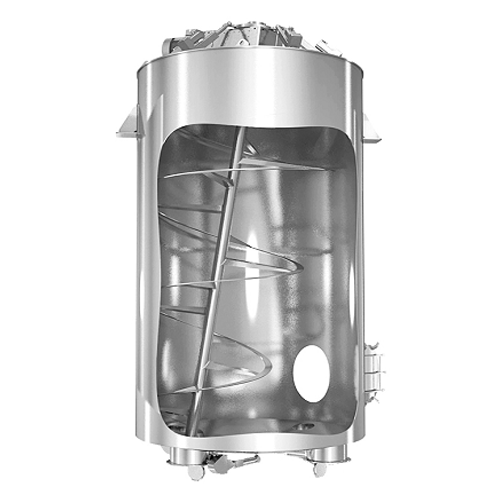

The Gyraton® GM from amixon® revolutionizes industrial mixing for large batches by combining compact design with low energy requirements. Its unique operation utilizes a slow-rotating spiral that lifts materials upwards, ensuring precise, gentle homogenization without compromising the integrity of sensitive mixes. The unit maximizes operational efficiency with a geometric design that eliminates dead spaces, facilitating thorough mixing even with challenging or cohesive materials. Ideal for diverse applications ranging from food production to pharmaceutical and chemical processing, this mixer effortlessly handles powders, slurries, and solids in up to 70 m³ capacities. Emphasizing minimal installation space, it suits manufacturers with spatial constraints while maintaining stringent hygienic conditions with gas-tight, permanently sealed shafts. Constructed to integrate seamlessly into existing production lines, it’s perfect for batch operations with high demands, ensuring consistent output across numerous industries.

Benefits

  • Optimizes space efficiency with compact design, allowing for installations in restricted areas.
  • Minimizes energy usage through low-speed, high-precision mixing, reducing operational costs.
  • Ensures product integrity with gentle homogenization suitable for delicate and cohesive materials.
  • Maintains hygienic standards with gas-tight, permanently sealed components, supporting clean operations.
  • Enhances production adaptability with capabilities to mix diverse materials and batch sizes seamlessly.

General


Applications
Food,Powder metallurgy,Nutritional supplements,Fine ceramics,Plant-based food,Chemical industry,Hygiene and cosmetics,3d printing,Herbs,Household detergents,Spices,Plastics,Pharmaceuticals
End products
Face creams,Polyethylene powder,Liquid detergents,Tungsten carbide powder,Cough syrup,Ceramic glaze,Plant-based protein powder,Adhesive compounds,Bread dough,Ground cinnamon,Pla filament,Vitamin capsules,Dried basil
Steps before
Grinding,Drying,Purification
Steps after
Packing,Pelletizing,Sterilization
Input ingredients
moist materials,poorly flowing materials,time-solidifying materials
Output ingredients
homogenized mix
Market info
Amixon is renowned for designing and manufacturing high-quality mixing equipment, including powder mixers and vacuum dryers, for various industries such as food, pharmaceuticals, and chemicals, with a focus on precision, hygiene, and innovative mixing solutions.

Technical Specifications


Mixer volume capacity
70 m³
Mixing speed
1–2 RPM
Energy usage
Low electrical load
Space requirement
Compact installation space
Mixing efficiency
Very high
Materials compatibility
Dry,moist,weakly flowing
Hygienic sealing
Gas-tight,hygienic shaft seal
Mix homogeneity
No dead spaces
Support and drive system
Top-driven and supported shaft

Operating Characteristics


Working mechanism
Spiral rotating and conveying upwards
Batch vs. continuous operation
Batch
Energy efficiency
Low electrical connected loads
Space efficiency
Very little installation space required
Hygiene level
Permanently hygienic gas-tight shaft sealing
Mixing accuracy
High
Mixing method
Gentle rotation
Homogenization capability
Effective even with moist or poorly flowing materials

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Compact
Tank shape
Calotte-shaped base
Mixing chamber size
70 m³
Discharge method
End or side discharge

Custom Options


Footprint
Compact,requires very little installation space
Control panel type
Customizable,based on user requirements
Discharge method
Custom options available based on application
