Laboratory mixer for homogenizing and mixing samples

Achieve precise sample preparation and efficient mixing with this versatile laboratory mixer, designed for handling both liquid and dry samples through high-speed homogenization and dispersing.

Mixes, Disperses, Emulsifies, and Homogenizes Samples

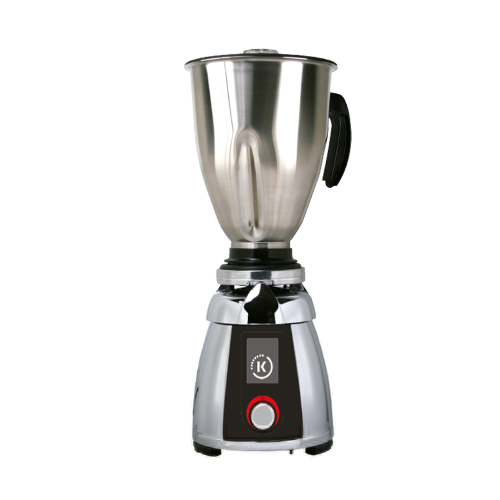

The MICROTRON® MB 950 S from Kinematica AG is a versatile laboratory mixer designed for precise sample preparation in pharmaceuticals, chemicals, cosmetics, and food industries. Featuring a gearless direct drive collector motor with a speed range from 1,000 to 14,000 rpm, this mixer accommodates various liquid and solid samples. Its tool-free operation and security system ensure easy handling and user safety. Capable of producing fine particle sizes and homogeneous samples, it’s ideal for emulsifying, dispersing, and mincing applications. The durable Swiss-engineered design includes integrated load, heat, and blockage protection, ensuring longevity. The mixer supports varying volumes with customizable attachments, offering flexibility for specific lab requirements.

Benefits

  • Enhances sample uniformity, ensuring reliable analytical results.
  • Simplifies operations with tool-free attachment changes, reducing setup time.
  • Provides flexibility for diverse sample sizes, accommodating varied research needs.
  • Protects users with a secure safety cover system during operation.
  • Extends equipment lifespan through integrated load and heat protection mechanisms.

General


Applications
Chemicals,Food,Liquid samples,Cuttable materials,Cosmetics,Dry samples,Life science,Pharmaceuticals
End products
Cosmetic creams,Pharmaceutical suspensions,Food emulsions,Laboratory samples,Emulsified chemical compounds,Chopped herbs,Powdered chemicals
Steps before
Drying,Cutting,Sample Collection
Steps after
Emulsification,Quality Control,Packaging,Particle Size Analysis
Input ingredients
cuttable materials,dry samples,liquid samples
Output ingredients
homogeneous samples,very fine particle sizes,emulsified materials,homogenized materials,minced materials,dispersed materials
Market info

Technical Specifications


Min. Volume
2000 ml
Max. Volume
4000 ml
Power
950 W
Motor Type
Collector motor (Class H) / Gearless direct drive
Speed Range
1000 – 14,000 rpm
Sound Level
ca. 79 dB(A) at 14,000 rpm
Supply Voltage
120 V ± 10%,60Hz
Relative Humidity (max.)
80% in storage / 80% during operation
Operating Temperature
0 – 40 °C
Protection Class
IP 20ø / H (mm) ø 190mm / 245 mm
Weight
5.3 kg
EMC Standards
EN 60335-1
Safety Standard
Protection Class 1 according to EN 60335-1

Operating Characteristics


Working mechanism
Gearless direct drive
Integrated steps
Homogenizing,mixing,dispersing,emulsifying,mincing
Batch vs. continuous operation
Batch
Vibration dampening
Quick coupling
Rotational speed adjustment
Load compensated
Automation level
Manual with security features
Noise level
Very quiet motor
Safety features
Security cover and lid in place
Temperature range
0 – 40 °C
Humidity tolerance
Max 80% during operation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


EMC standards
EN 60335-1
Safety standard
Protection Class 1 according to EN 60335-1

Physical Characteristics


Compact footprint
190mm / 245mm
Control panel type
Integrated switch
