Laboratory homogenizer for nanoemulsions and dispersions

Elevate your laboratory capabilities with a bench-top homogenizer designed for precise nanoemulsions, particle size reduction, and effective cell lysis, ensuring high efficiency and consistent results across complex formulations.

Processes Nanoemulsions and Reduces Particle Size

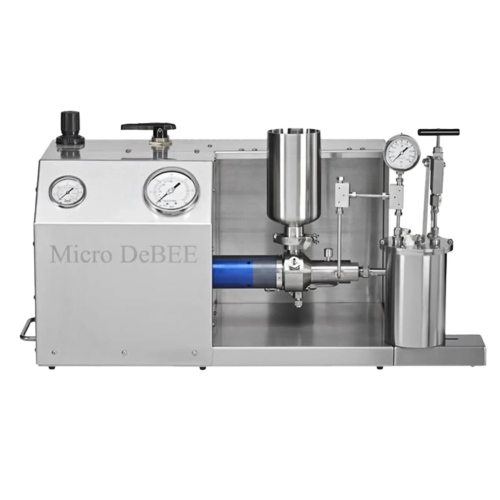

The Micro DeBEE Laboratory High-Pressure Homogenizer from Pion is a versatile bench-top solution tailored for precise laboratory operations. This air-powered unit excels in processes such as cell lysis, nanoemulsions, particle size reduction, and dispersion, achieving industry-leading results with operating pressures up to 30,000 PSI. Designed for pharmaceuticals, biotech, and cosmetics, it aids in producing high-yield formulations like liposomal vaccines, protein therapeutics, and polymeric nanoparticles. With a flow rate of 15 LPH and requiring only clean, dry air for operation, it integrates seamlessly into your lab, offering no-assembly-required maintenance. Engineered for bioavailability enhancement and tighter particle distribution, it complies with laboratory standards while its small footprint and easy cleaning optimize workflow efficiency.

Benefits

  • Achieves superior cell lysis results, enhancing product yield and purity.
  • Streamlines lab operations with minimal sample handling and easy cleaning processes.
  • Enhances bioavailability and product stability through precise particle size reduction.
  • Accommodates a wide range of formulation needs, from liposomes to polymer dispersions.
  • Integrates seamlessly into existing lab setups, optimizing research and development efficiency.

General


Applications
Polymers,Dispersions,Nanoemulsions,Microemulsions,Injectable formulations,Biopharmaceuticals,Transdermal drug delivery,Liposomes,Oral formulations,Pharmaceuticals
End products
Polymeric nanoparticles,Topical creams,Liposomal amphotericin b,Cyclosporine nanoemulsion,Transdermal patches,Liposomal vaccines,Oral nano-suspensions,Dermatological lotions,Protein therapeutics,Cannabis nanoemulsions,Injectable parenteral solutions
Steps before
Purification,Drying,Emulsification
Steps after
Sterilization,Packing
Input ingredients
cells,nanoemulsions,dispersions,particles,polymers,liposomes
Output ingredients
cell lysis,nanoemulsions,dispersions,reduced particle size,stabilized products,improved bioavailability,tighter particle size distribution
Market info

Technical Specifications


Operating Pressure
2,000–30,000 PSI (150—2,000 bar)
Flow Rate
15 LPH (4 GPH)
Minimum Sample Size
12 ml
Air Requirement
0-35F dew point - 50 SCFM @ 100 psi for 30,000 psi (2,000 bar) max

Operating Characteristics


Air-powered operation
Requires clean,dry air
Operating pressure range
2,000–30,000 PSI
Flow rate
15 LPH
Sample size
Minimum 12ml
Energy efficiency
High processing energy
Cleaning method
No disassembly required
Changeover time
Easy and quick

Material Compatibility


Cleanability
Easy cleaning with no disassembly required
Biological compatibility
Applicable for cell lysis and nano emulsions
Corrosive resistance (e.g. acids)
High-pressure tolerance
Density/particle size
Suitable for particle size reduction

Product type Characteristics


Cell lysis
Industry leading results

Physical Characteristics


Minimum Sample Size
12 ml

Custom Options


Operating Power
Air-powered
Cleaning Requirement
Easy cleaning without disassembly
