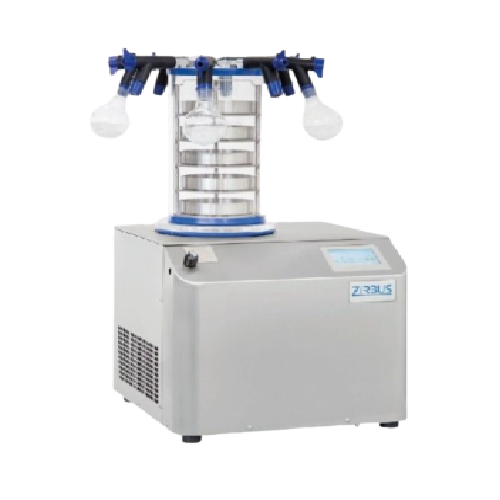

Laboratory freeze dryer for small batch processing

Ensure precise moisture control and stability in sensitive samples with our modular freeze dryer, essential for preserving the integrity of biopharmaceuticals, nutraceuticals, and archaeological artifacts through efficient lyophilization processes.

Precisely Freeze Dries and Vacuum Seals Samples

ZIRBUS technology’s VaCo Series offers a modular freeze dryer solution, adapted for precision in laboratory and pilot-scale applications. The series employs a robust freeze drying and lyophilization process, utilizing environmentally friendly natural refrigerants in compliance with EU F-Gas regulations. Available with condenser temperatures of either -50°C or -80°C, the VaCo 2, 5, and 10 models vary in condenser and ice capacities, tailoring to diverse operational needs. Ideal for biopharmaceuticals, nutraceuticals, and food products, the equipment integrates seamlessly into research and production lines, optimizing moisture removal from sensitive samples. Constructed with stainless steel, the series offers optional acrylic or stainless steel chambers for enhanced chemical compatibility, alongside customization options like heated shelves and vacuum controls, crucial for processing liquid and solid forms. Designed to meet the stringent requirements of the pharmaceutical, biotech, and food industries, the VaCo Series ensures consistent product quality, energy efficiency, and minimal environmental impact.

Benefits

  • Enhances sample integrity by precisely controlling moisture removal.
  • Adapts to varying research needs with modular design flexibility.
  • Conserves energy with compliance to EU F-Gas regulations.
  • Supports diverse applications with customizable chamber materials.
  • Minimizes environmental impact through eco-friendly refrigerants.

General


Applications
Laboratory samples,Nutraceuticals,Lyophilized products,Vial sealing,Biopharmaceuticals,Enzymes,Ampoules,Food products,Organic solvents,Pharmaceutical powders,Archaeological artifacts
End products
Freeze-dried fruits,Protein drugs,Botanical extracts,Freeze-dried vaccines,Archaeological fabric samples,Chemical reagents,Sealed vaccine vials,Enzyme formulations,Powdered antibiotics,Dietary supplements
Steps before
Sample preparation,Solution formulation,Pre-freezing,Dispensing,Container loading
Steps after
Sealing in vacuum,Storage,Packaging,Quality control,Rehydration
Input ingredients
liquid samples,biological specimens,organic solvents,glass flasks,ampoules
Output ingredients
lyophilizates,dry samples,vacuum-sealed vials
Market info
Zirbus is known for manufacturing high-quality autoclaves, freeze dryers, and customized sterilization equipment, with a strong reputation for reliability and precision in industrial and laboratory applications.

Technical Specifications


Condensor temperature
-50°C or -80°C
Condensor capacity
2kg / 24h – 15kg / 24h
Max. ice capacity
3kg – 20kg
Dimensions basic unit
490 x 440 x 470 mm – 750 x 900 x 750 mm
Weight base unit
45kg – 90kg
Electrical connection
230 V,50/60 Hz – 400 V,50/60 Hz
Volume
5,7 Liters – 50 Liters
Cooling system
One-stage or two-stage,Refrigerant according to F-Gas regulation
Ice capacity
2kg / 24h – 15kg / 24h
Cooling medium
Environmentally friendly natural refrigerants
Assembly
Modular system with various modules
Outer dimensions
490 x 450 x 470 mm – 900 x 700 mm

Operating Characteristics


Condenser temperature
-50°C or -80°C
Cooling system
One-stage / Two-stage
Condensor capacity
2 kg / 24h to 15 kg / 24h
Max ice capacity
3 kg to 20 kg
Ice capacity per 24h
2 kg / 24h to 15 kg / 24h
Vacuum control
Set different vacuum values

Material Compatibility


Stainless steel compatibility
Yes
Acrylic glass compatibility
Yes
Corrosive resistance (e.g.,organic solvents)
Stainless steel recommended

Product type Characteristics


Freeze drying applications
Laboratory,Pilot,Production
Vacuum control capability
Set different vacuum values


EU F-Gases Regulation
EU No. 517/2014

Physical Characteristics


Machine footprint
VaCo 2
Material of construction
Stainless steel
Condensor diameter
VaCo 2
Ice capacity
VaCo 2
Acrylic glass chamber
Available in different dimensions
Weight
VaCo 2
VaCo 5
60 kg at -50°C,75 kg at -80°C
VaCo 10
75 kg at -50°C,90 kg at -80°C

Custom Options


Condenser temperature options
-50°C or -80°C
Condenser capacity
2kg / 24h,5kg / 24h,15kg / 24h
Material Options
Acrylic glass chamber / Stainless steel chamber
Insert rack options
Heated / Unheated shelves
Drying tray options
Stainless steel drying trays available
Sealing device
Available from VaCo 5
Vacuum control options
Different vacuum values can be set
Vacuum pump options
Oil-sealed rotary vane pump / Chemistry hybrid vacuum pump
