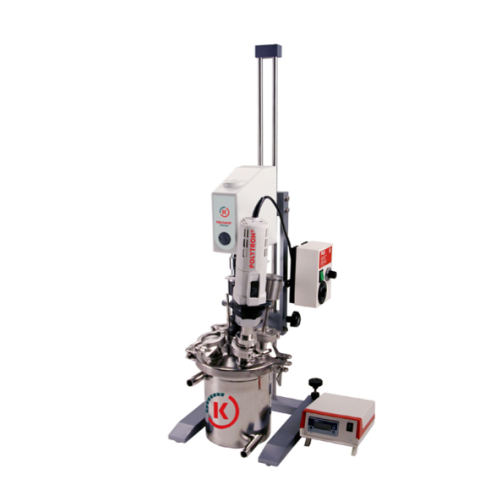

Laboratory dispersion reactor for 2l mixing and reaction processes

Streamline your laboratory processes with a versatile reactor designed for precise mixing and homogenization, ensuring high-quality outputs from microemulsions to nutrient-rich formulations.

Facilitates Laboratory Mixing and Homogenization

The REACTRON RT 2E from Kinematica AG is a versatile laboratory dispersion reactor designed for precision in the mixing and homogenization of pharmaceuticals, fine chemicals, cosmetics, and food products. This equipment features a modular design that integrates a unique range of mixing vessels and dispersing systems, optimizing processes like micro-mixing and crushing for laboratory and pilot operations. With a capacity of up to 2 liters, it supports operations under vacuum conditions, making it suitable for sensitive reactions involving active pharmaceutical ingredients and other delicate compounds.

The reactor’s telescopic stand and quick-change aggregate system ensure efficient cleaning and maintenance, while its stainless steel construction guarantees durability and chemical resistance. The REACTRON RT 2E is equipped with a high-torque POLYMIX® digital overhead stirrer and offers a comprehensive selection of upgrades and accessories, providing compatibility with diverse laboratory requirements. Its robust design complies with industry standards, ensuring reliable performance in the production of pain relief ointments, skin serums, protein beverages, and a range of laboratory test samples.

Benefits

  • Enhances laboratory efficiency with modular design adaptable to diverse process needs.
  • Ensures precise control of reaction conditions, essential for consistent product quality.
  • Facilitates quick cleaning and maintenance with easy-to-change components.
  • Provides versatility for vacuum operations, protecting sensitive compositions.
  • Offers robust construction for durability and chemical resistance, reducing long-term operational costs.

General


Applications
Food,Fine chemicals,Mixing systems,Cosmetics,Homogenization,Chemical mixing,Life science,Laboratory reactions,Pharmaceuticals
End products
Homogenized food sauces,Laboratory test samples,Laboratory samples,Enzymatic reagents,Nutrient-rich shakes,Active pharmaceutical ingredients (apis),Topical antiseptic solutions,Emulsified creams,Laboratory solutions,Microemulsions,Protein beverages,Chemical catalysts,Skin serums,Pain relief ointments
Steps before
Purification,Emulsification,Homogenization,Mixing,Grinding
Steps after
Packaging,Coating,Sterilization,Storage,Quality Control
Input ingredients
laboratory substances,chemical compounds,process vessels components,macro-mixing materials
Output ingredients
homogenized mixtures,micro-mixed products,crushed substances
Market info

Technical Specifications


Min. Volume
1000 ml
Max. Volume
2000 ml
Applicable aggregates diameter
ø 30 mm to ø 36 mm
Vacuum without homogenizer
Up to 25 mbar (a)
Vacuum with homogenizer
Up to 250 mbar (a)
Supply voltage
90 – 230 V ± 10 %,50Hz / 60Hz
Max. relative density
80 % storage / 80 % operation
Operating temperature
Standard max. 90 °C / On request >120 °C
Protection class
IP 20
EMC standards
IEC / EN 61000-6-2 / EN 61000-6-3
Safety standard
IEC / EN 61010-2-51

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
Cleaning method
CIP / Manual
Energy efficiency
High Torque
Jacketed vessel capability
Yes
Modular construction
Yes
Mixing process
Macro-mixing / Micro-mixing
Vacuum capability
Up to 25 mbar (a) / 250 mbar (a)
Temperature range
Standard max. 90°C / >120°C on request
Process control
Included
Vessel material
Stainless steel 316L / Borosilicate glass
Cooling method
Double wall for temperature optimization

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Vessel material
Stainless steel / Borosilicate glass
Mixing capability
Macro-mixing / Micro-mixing
Process control system
Available

Physical Characteristics


Machine footprint
Compact design
Tank shape
Cylindrical
Tank size
2-liter capacity
Construction material
Stainless steel 316L
Feed/discharge method
Tri-clamp connections

Custom Options


Control panel type
Digital
Integration possibilities
Compatible with POLYTRON® and MEGATRON® systems
Vessel configuration
Single and multiple wall options
Material options
Borosilicate glass or stainless steel
Stirrer type
Anchor stirrer with high torque
Stand type
Economic telescopic stand
System upgrade options
Accessory range available on request
Maintenance
Maintenance-free gearbox
