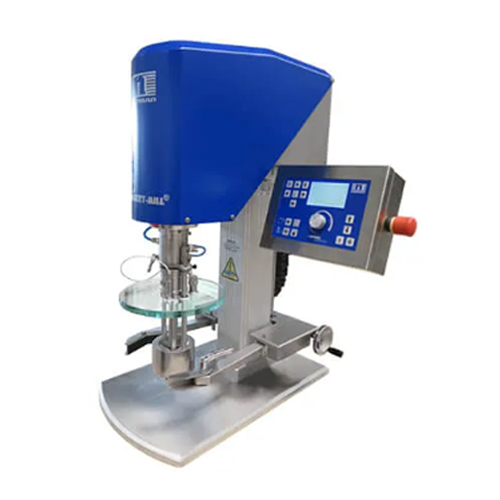

Laboratory basket mill for fine grinding in industrial applications
Optimize your laboratory’s efficiency with high-precision fine grinding technology, ideal for achieving consistent particle sizes in research and development environments.
Disperses and Grinds Low-Viscosity Products
The KREIS-BASKET-MILL® series from Wilhelm Niemann, featuring models KBM 31-3,0 and KBM 48-5,4 FU, specializes in dispersing and fine grinding for industries such as paint, varnish, and chemicals. This equipment utilizes a height-adjustable, demountable grinding basket with peripheral speeds and integrated cooling to enhance both efficiency and product quality. Ideal for applications ranging from industrial paints to fine inks, it accommodates batch sizes of 1 to 45 liters depending on viscosity. The system offers advanced automation with options for viscosity-dependent speed control and recipe-controlled PLC operations, enabling seamless integration into existing production lines. Constructed from wear-resistant materials, it also features continuous temperature monitoring and optional vacuum design to ensure consistency and safety. The units are compatible with KREISIT® milling beads for optimal wet grinding performance, making them a versatile choice for varied production needs.
Benefits
- Enhances product consistency and quality through precise dispersing and grinding.
- Improves operational efficiency with adjustable speed and cooling controls.
- Reduces labor intervention with semi and fully automatic PLC controls.
- Ensures safety and reliability with continuous temperature monitoring and wear-resistant materials.
- Customizable for specific production needs with options like vacuum design and mixing containers with double jackets.
- Applications
- Wax dispersion,Colorants,Automotive-repair paints,Industrial paints,Additives for printing inks,Ceramic slurry,Coil coating,Screen printing inks,Wood varnishes,Protective coatings,Pigments,Flexo printing inks,Marine paints,Leather paints,Plant protection products
- End products
- Micronized wax emulsions,Acrylic emulsion paints,Water-based flexographic inks,Herbicide formulations,Epoxy automotive touch-up paints,Alumina ceramic suspensions,Anticorrosion marine coatings,Dispersing agents for inkjet inks,Iron oxide pigments,Organic color dyes,Polyurethane wood finishes,Polyvinylidene fluoride coil coatings,Water-based leather dyes,Uv curable screen inks
- Steps before
- Material preparation,Weighing and batching,Pre-mixing
- Steps after
- Quality control,Packaging,Storage
- Input ingredients
- low-viscous products,medium-viscous products,industrial paints,automotive-repair paints,wood varnishes,protective coatings,marine paints,leather paints,coil coating,pigments,colorants,flexo printing inks,screen printing inks,additives for printing inks,ceramic slurry,plant protection products,wax dispersion
- Output ingredients
- dispersed products,fine-ground products,products under 5 μm
- Market info
- Wilhelm Niemann is renowned for manufacturing high-quality dispersing machines and mixers used in the paint and varnish industry, delivering engineered-to-order solutions with a strong reputation for innovation, reliability, and precision.
- Batch size
- 2.0 - 3.5 kg
- Batch size
- 30 - 60 kg
- Capacity of grinding chamber
- 1 - 3 L
- Capacity of grinding chamber
- 23 - 45 L
- Driving power
- 2.2 kW
- Driving power
- 4 kW
- Viscosity range
- Low to medium-viscous
- Grinding speed
- High peripheral speed
- Temperature control
- Continuous temperature measurement with limit value
- Cooling control
- Automatic cooling control
- Design features
- Height-adjustable grinding basket
- Design features
- Demountable grinding basket
- Material
- Wear-proof special materials
- Automation
- Recipe controlled semi and fully automatic PLC control
- Design variations
- Vacuum design
- Design variations
- Electropolished version
- Working mechanism
- Demountable grinding basket
- Cooling control
- Automatic
- Temperature measurement
- Continuous with limit value
- Peripheral speed
- High
- Batch vs. continuous operation
- Batch
- Automation level
- Recipe-controlled semi and fully automatic PLC control
- Height adjustment
- Height-adjustable grinding basket
- Gas-proofed cover system
- Yes
- Density/particle size
- 0.5–2.5 g/cm³
- Viscosity range
- Low to medium-viscous products
- Control panel type
- NIEMANN KD-TOUCH 16 touch panel
- Discharge method
- Batch
- Basket material
- Wear-proof special materials
- Cooling system
- Automatic cooling control
- Height-adjustable basket
- Yes
- Gas-proofed cover system
- Yes
- Operation temperature control
- Continuous temperature measurement with limit value
- Control panel type
- NIEMANN KD-TOUCH 16 touch panel
- Cooling option
- Automatic cooling control
- Viscosity-dependent speed control
- Yes
- Recipe controlled semi and fully automatic PLC control
- Yes
- Vacuum design
- Optional
- Electropolished version
- Optional
- Mixing container with double jacket for cooling
- Optional
