Intermittent motion end load cartoner for baked goods and home care products

Streamline your packaging line with high-speed, intermittent motion cartoning that fits tight spaces while offering versatility in handling diverse product sizes and types, perfect for efficiently packing and transporting baked goods and home care products.

Packs and Collates Solid Products in Cartons

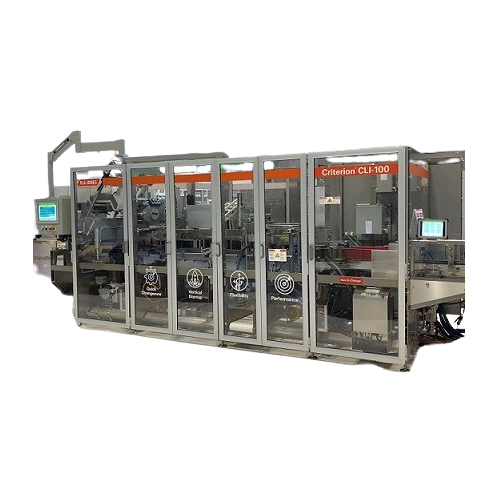

The CLI-100 from R.A Jones is an intermittent motion cartoner and box filling machine designed to meet the packaging needs of food and home care product manufacturers. This equipment features a versatile intermittent operation that efficiently processes products like bread rolls, cereal bars, and detergent pods. It expands the Criterion® product line by integrating an end-load cartoning system capable of handling various carton sizes with precision.

The CLI-100 excels in environments where space is limited, offering a compact footprint of 2300 mm in depth and 5600 mm in length while handling up to 100 cartons per minute. Its robust construction supports solid product types, ensuring smooth and reliable cartoning and box filling. Engineered for flexibility, it includes the IndeCart® 3 variable pitch bucket transport system for efficient product collation and transfer, adapting seamlessly to different production requirements.

Automation is enhanced with the latest technology for controlling critical machine functions, ensuring maximum performance and reliability. With a quick size changeover of 10-20 minutes, it minimizes downtime and maximizes productivity. The CLI-100 operates with horizontal carton orientation and supports glue-assisted packaging closing, accommodating carton boxes made from paperboard.

R.A Jones offers extensive support for customization and engineering modifications, along with comprehensive maintenance services and parts availability to ensure sustained operation and integration within existing packaging lines.

Benefits

  • Maximizes productivity with up to 100 cartons per minute capability.
  • Adapts to varying product lines with quick 10-20 minute changeovers.
  • Enhances space utilization with a compact design suitable for tight production floors.
  • Improves product handling with flexible IndeCart® 3 system for precise collation.
  • Integrates seamlessly into existing lines with advanced automation and control systems.

General


Applications
Home care products,Baked goods,Food products,Snacks
End products
Bread rolls,Biscuits,Granola snacks,Dishwashing tablets,Cleaning wipes,Cereal bars,Potato chips,Crackers,Microwave popcorn,Detergent pods
Steps before
Product Collation,Preparation for Cartoning
Steps after
Packing,Wrapping
Input ingredients
baked goods,snacks,home care products,paperboard,prefolded carton
Output ingredients
carton box
Market info
R.A Jones (Coesia Group) is known for its expertise in designing and manufacturing packaging equipment and automation solutions, specializing in cartoning, pouching, and high-speed filling, with a strong reputation for innovation and reliability in the industry.

Technical Specifications


Cartoning Type
End Load
Motion Type
Intermittent
Cartoning Speed
Up to 100 cpm
Footprint Dimensions
Depth 2300 mm
Height 2200 mm
Length 5600 mm
Machine Weight
6000 kg
Changeover Time
10-20 min
Max Pack Height
304 mm
Min Pack Height
108 mm
Max Pack Length
254 mm
Min Pack Length
127 mm
Max Pack Width
152 mm
Min Pack Width
25 mm
Packaging Closing
Glue
Packaging Material
Paperboard
Packaging Orientation
Horizontal
Packaging Type
Prefolded Carton,Carton Box

Operating Characteristics


Insertion mode
End Load
Operating mode
Intermittent
Product changeover
N/A
Size changeover
10-20 min
Flexibility for running different types of products
High
Footprint
Compact
Product control using IndeCart®
Flexible and efficient
Automation level
Latest technology for maximum flexibility,performance,reliability

Physical Characteristics


Machine depth
2300 mm
Machine height
2200 mm
Machine length
5600 mm
Machine weight
6000 kg
Insertion mode
End Load

Custom Options


Compact footprint
Yes
Control panel type
Latest technology for maximum flexibility
Integration possibilities
IndeCart® 3 variable pitch bucket transport
