Integrity tester for filtration system validation
Ensure precise validation of your filtration systems with highly accurate integrity testing, reducing operational risks and safeguarding product quality throughout your biopharmaceutical production processes.
Conducts Integrity and Leak Testing

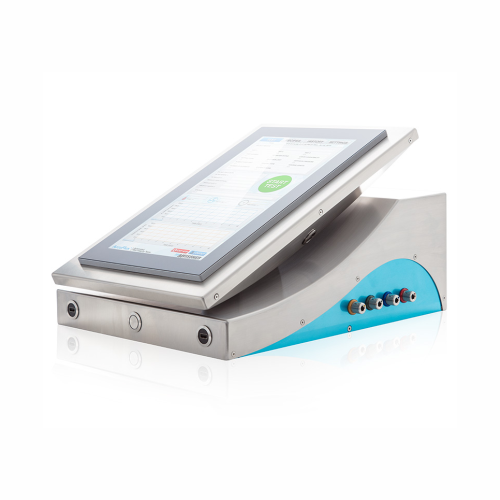

The AccuFlux® Integrity Tester from Meissner Corporation is a high-precision instrument engineered for the rigorous demands of biopharmaceutical and filtration applications. It performs integrity and leak tests efficiently through the integration of advanced sensor technology and a recipe-driven interface, ensuring reliability in quality control processes. With a user-friendly 15″ multi-touch interface, it facilitates quick setup and execution of tests on sterile filtration units and filtration systems. Ideal for testing in the pharmaceutical and biotechnology sectors, it supports various flow rates and pressure ranges, thus accommodating diverse testing requirements. Equipped with a Windows 10 industrial PC, it provides robust network integration, enabling data storage and retrieval in compliance with CFR 21 Part 11 regulations. Factory calibration services enhance its accuracy, while its stainless steel construction ensures durability and resistance to environmental factors, making it a vital tool for maintaining the stringent quality standards necessary in laboratories, processing departments, and quality assurance units.
Benefits
- Ensures precise quality control with highly accurate mass flow meters and pressure sensors.
- Enhances operational efficiency with a recipe-driven setup and rapid test execution.
- Provides comprehensive data management through multi-location storage and CFR 21 Part 11 compliance.
- Reduces maintenance downtime with built-in self-checks and calibration utilities.
- Offers robust environmental resistance with dust and splash-proof stainless steel construction.
- Applications
- Laboratory testing,Biopharmaceuticals,Filtration systems,Quality control,Pharmaceuticals
- End products
- Vaccines,Biological samples,Monoclonal antibodies,Sterile filtration units,Injectable drugs,Tablets,Protein formulations,Capsules
- Steps before
- Filter Setup,Gas Supply Preparation,System Calibration,Installation and Configuration
- Steps after
- Data Analysis,Test Report Generation,Result Verification,Filter Inspection
- Input ingredients
- filters,Meissner filters,non-Meissner filters,dry air,Pneumatic connections
- Output ingredients
- test data,test reports,PDF test certificate,CSV file,stored recipes,filter data
- Market info
- Meissner is known for manufacturing advanced filtration and single-use systems for biopharmaceutical, pharmaceutical, and other critical industries, renowned for its innovation and high-quality, reliable solutions supporting complex manufacturing processes.
- Accuracy
- ±0.5% Rd ±0.1% FS (Flow Meters),±0.15 PSI (Pressure Sensor)
- Flow Rate Range
- 0 – 250 mL/min
- Pressure Range
- 0 – 100 PSIG
- Automation
- Recipe driven test setup,Auto-generated detailed PDF test certificate
- Operating System
- Windows 10
- Processor
- 1.91 GHz,Quad Core
- Memory
- 8 GB RAM
- Storage
- 128 GB
- User Interface
- 15.6″ Color Multi-touch Display
- Connectivity
- USB 2.0 x3,USB 3.0 x1,Ethernet
- Pneumatic Requirement
- Minimum Gas Supply Pressure
- Power Requirements
- 100-240 VAC,50/60hz Input Power
- Physical Dimensions
- 14.19 W x 19 D x 11.06 H
- Environmental Conditions
- Operating Temperature Range
- Automation level
- Recipe driven test setup
- Batch vs. continuous operation
- Batch
- Cleaning method
- Built-in self checks
- CIP/SIP
- Self checks and tests for leaking
- Changeover time
- Quick setup with recipe storage
- Air incorporation control
- Flow and pressure testing capabilities
- Energy efficiency
- Efficient testing cycles
- Integration Compatibility
- Windows Network and Accessory Integration
- Data Management
- PDF and CSV test data storage
- Security Features
- CFR 21 Part 11 Compliant
- User Administration
- Multi-tiered,unique login accounts
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- CFR 21 Part 11
- Compliant
- FDA compliance
- Potential
- Windows OS Security Protocols
- Standard Network Security
- Machine footprint
- 14.19 W x 19 D x 11.06 H (inches)
- Display size
- 15.6″ Color Multi-touch Display
- Enclosure material
- 304 Stainless Steel
- Pneumatic connections
- Color Coded,Keyed Staubli Coupling
- Environmental Conditions
- Operating Temperature
- Environmental Conditions
- Storage Temperature
- Control panel type
- 15" Color Multi-touch Display
- User Interface Type
- Projected Capacitive
