Integrated preform production and bottling system for Pet bottles

Achieve seamless production of PET bottles, from preform to capping, with energy-efficient integration that minimizes handling, lowers costs, and maintains product integrity for various beverages and care products.

Combines Preform Injection, Blowing, and Filling

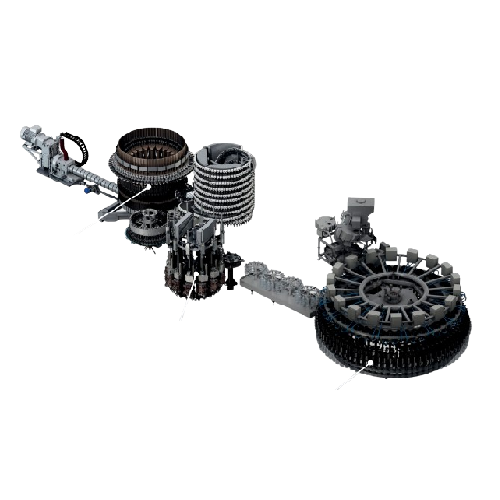

The XTREME SINCRO CUBE from SIPA revolutionizes production with its integrated approach, combining preform injection-compression, rotary blowing, and filling into one seamless process. This system is unique for its capability to accommodate still and carbonated beverages, hot-fill and cold-fill products, and sensitive items like dairy, juices, and personal care products. At its core, the XTREME SINCRO CUBE leverages SIPA’s XTREME preform molding system, enabling high lightweight ratios and reduced energy consumption through low-pressure operations. With throughput options reaching up to 54,000 bottles per hour, it is ideal for continuous and high-speed operations. Its compact design eliminates preform handling, cutting costs and maintaining product quality. Energy efficiency is enhanced by a single thermal cycle, and flexibility is furthered by multiple filler compatibility, including isobaric, gravity, and hot fillers. The system accommodates various material options, specifically PET and rPET, making it suitable for industries ranging from food and beverage to personal care. Maintenance is streamlined by design, boasting a 100% preform inspection capability and oil-free operation for optimal hygiene. Customization options are readily available to fit specific production needs, supported by engineering expertise from SIPA.

Benefits

  • Reduces operational costs by integrating preform production, blowing, and filling processes.
  • Minimizes energy consumption with a single thermal cycle and low-pressure operations.
  • Enhances product quality with oil-free preform production and comprehensive inspection capabilities.
  • Increases production flexibility with compatibility across various fillers and product types.
  • Streamlines operations with fewer operators needed and a compact system footprint.

General


Applications
Carbonated beverages,Personal care products,Hot-fill products,Edible oils,Alcoholic beverages,Cold-fill products,Home care products,Energy drinks,Milk and dairy derivatives,Still beverages,Premium clear juices
End products
Premium apple juice,Olive oil,Liquid detergent,Skimmed milk,Bottled water,Hot-fill teas,Sports drinks,Shampoo,Soft drinks,Cold-fill fruit juices,Beer
Steps before
Material selection,Preform design,Raw material preparation
Steps after
Packing,Labeling,Sterilization
Input ingredients
PET,rPET
Output ingredients
still beverages,carbonated beverages,cold-filled products,hot-filled products,sensitive products,products with pulp,CSD without preservatives,edible oil,milk and derivatives,premium clear juices,home care products,personal care products
Market info

Technical Specifications


Max Mechanical Output
54,000 P/Hour
Max Bottle Size
3L
Max Preform Weight
60g
Max Preform Length
150mm
Min Preform Base Thickness
0.95mm
Max Throughput
1300 kg/hour
Blowing Cavities
24
Filling Valves
60
Cavitation (Example)
XTREME 96/24

Operating Characteristics


Working mechanism
Integrated preform production,bottle blowing,filling,and capping
Integration Level
1-step system
Automation level
Easy operation with reduced manpower
Batch vs. continuous operation
Inline Continuous
Energy efficiency
Extremely low consumption
Cleaning method
Clean solution
Flexibility
Configuration for various products and fill types
Compact footprint
Yes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container size and shape
Up to 3L bottles
Heat sensitivity
Hot and cold-fill products
Foaming
Handled with isobaric fillers
Viscosity
High production rates with standard and complex custom containers
Material type
PET

Physical Characteristics


Machine footprint
Compact
Integration
Preform,blow molding,filling,and capping
Footprint
Compact layout for integration
Single thermal cycle
Yes,allows low energy consumption
Preform production type
Injection-compression molding
Operation control
Fewer operators required
Configuration flexibility
For various product types
Oil-free system
Yes,100% preform inspection and clean
Compact footprint
Enhanced integration with less space
Bottle size capacity
Up to 3L Bottles

Custom Options


Control panel type
Touchscreen / PLC
Integration possibilities
Rotary blow molding,filling and capping
System flexibility
Cold-fill / Hot-fill / Still / Carbonated
Material options
PET / rPET
Operation mode
Low energy consumption / Reduced operator requirement
Product type compatibility
Beverages,Edible oil,Milk,Premium juices
Footprint
Compact
