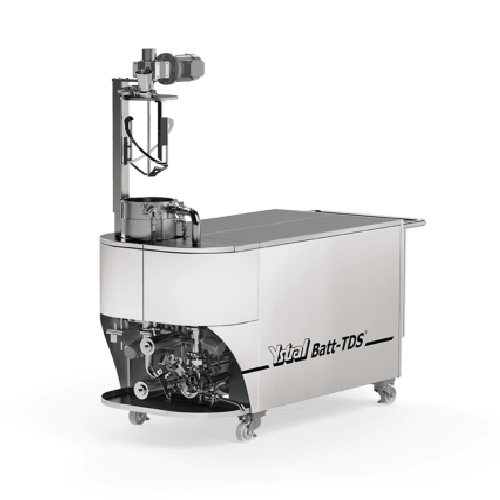

Inline disperser for lithium-ion electrode slurry mixing

Achieve highly efficient dispersion and homogeneity for battery slurries with this inline solution, ensuring precise mixing and wetting processes while minimizing metal contamination.

Inducts Powders and Disperses Slurries Efficiently

The Batt-TDS from Ystral is an innovative inline disperser specifically tailored for the lithium-ion battery industry, as well as chemical and pharmaceutical sectors. This equipment excels in its ability to induct powders under vacuum and disperse them within liquid streams to form homogeneous slurries. Its unique design allows for precise control over flow and shear rates, optimizing the dispersion process without the need for high-viscosity conditions typically required in conventional systems. Applications include the efficient preparation of lithium iron phosphate battery slurry, conductive carbon suspensions, and cosmetic creams, among others.

Capable of scaling from pilot to industrial production, the Batt-TDS performs powder induction and dissolution in a single cohesive process, reducing batch times significantly and ensuring consistent batch-to-batch quality. The integrated PLC control provides seamless automation, allowing for real-time adjustment and monitoring of processing parameters. This feature enhances production accuracy while minimizing operator intervention.

Engineered from durable materials, the Batt-TDS can withstand aggressive chemical environments, ensuring longevity and reduced maintenance costs. Its compact form facilitates easy integration into existing manufacturing lines, conserving valuable factory space. The Batt-TDS complies with rigorous industry standards and supports clean-in-place procedures, enabling efficient maintenance and uninterrupted operation.

Benefits

  • Boosts production efficiency by integrating powder induction and dispersion for rapid batch processing.
  • Minimizes material waste with precise powder dosing under vacuum conditions.
  • Reduces energy consumption by eliminating the need for high-viscosity mixing.
  • Ensures consistent product quality with low batch-to-batch variability.
  • Optimizes factory space usage with a compact design suited for seamless line integration.

General


Applications
Paints and coatings,Chemical,Lithium-ion battery slurry,Powder induction systems,Batteries,Pharmaceutical
End products
Cosmetic creams,Pharmaceutical suspensions,Chemical catalyst mixtures,Lithium-ion battery electrodes,Lithium iron phosphate battery slurry,Nickel-cobalt-aluminum oxide slurry,Polymer binder solutions,Pigment dispersions,Electrochemical cell slurries,Conductive carbon suspensions
Steps before
Purification,Filtering,Sizing,Material Pre-mixing
Steps after
Electrode Coating,Quality Control,Batch Homogenization,Electrode Finalization
Input ingredients
solvent,binder,carbon black,additives,active material,powders,pastes,liquids,aciniform structures,high viscosity materials,high solids content materials
Output ingredients
homogeneous slurry,high-solids slurries,dispersed active material,low batch-to-batch variability slurry,conductive performance slurry
Market info
Ystral is known for its expertise in mixing, dispersing, and powder wetting technologies, providing high-quality engineered-to-order equipment solutions for industries such as chemicals, pharmaceuticals, and food, renowned for innovation, reliability, and efficiency in process optimization.

Technical Specifications


Powder Induction
Dust-free under vacuum
Flow Control
Independent control
Shear Rate Control
Independent control
Viscosity Handling
High viscosity
Batch Homogenization
Low shear
Deaeration
Continuous
Process Time
Milliseconds for dispersion
Automation
Intuitive touchscreen HMI
Scalability
Easily scalable
Productivity
High productivity per sqm
Binder Dissolution
Room temperature within 3 min
Batch-to-batch Variability
Low variability

Operating Characteristics


Working mechanism
Powder induction under vacuum
Integrated steps
Powder induction,dispersion,deaeration
Batch vs. continuous operation
Continuous
Automation level
PLC-controlled
CIP/SIP
Not specified
Changeover time
Minimal due to seamless process flow
Cleaning method
Not specified
Energy efficiency
High productivity per square meter

Material Compatibility


Abrasion resistance
High
Biological compatibility
Not Applicable
Cleanability
Easy to Clean
Corrosive resistance (e.g. acids)
High
Density/particle size
0.5–1.5 g/cm³ / 50–1000 µm

Physical Characteristics


Control panel type
Touchscreen HMI
Tank size
Varies with configuration
Configuration options
Modular design
Discharge method
Inline continuous flow
System configuration
Nest configurations possible
Space efficiency
High productivity per square meter

Custom Options


Control panel type
Touchscreen HMI
Scalability
Easily scalable,R,D to gigafactory
Integration possibilities
Compatible with various battery chemistries
Modular design
Skid assemblies for easy factory reconfiguration
Compact footprint
High productivity per square meter
