Industrial water cooling system for food products

Efficiently cool and convey food products with a system designed for uniform temperature control, ensuring both the quality and safety of your pasta, snacks, and breakfast cereals in continuous production environments.

Immerses and Cools Products Continuously

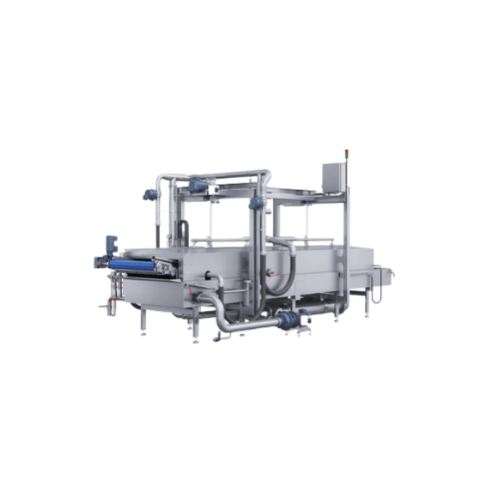

The RF – Industrial Water Cooler by GEA Group is engineered to efficiently manage cooling in food production lines, specifically for pasta, snacks, and breakfast cereals. Its specialized conveying system immerses products in glycolyzed, temperature-controlled water, ensuring consistent and uniform cooling. Ideal for fresh pasta and cereals, it supports products like ravioli, granola bars, and ready-to-eat flakes. Capable of handling solid and liquid forms, the cooler seamlessly integrates into continuous operations, with PLC controls for precise water temperature and cooling time management. Constructed in stainless steel, it includes an automated multilayer opening for easy access during cleaning and maintenance, preventing product stagnation and ensuring quick sanitization with a rinsing ramp. The cooling system is designed for energy efficiency with a recirculation pump and adjustable sprays, while the robust construction meets industrial standards, making it a reliable choice for food and beverage manufacturers.

Benefits

  • Enhances product quality with uniform cooling via immersion and recirculation technology.
  • Increases efficiency by integrating seamlessly into continuous operations.
  • Reduces cleaning time with an easy-access automated opening and rinsing ramp.
  • Lowers energy consumption through an efficient cooling cycle with a heat exchanger.
  • Ensures high hygiene standards with stainless steel construction and streamlined design.

General


Applications
Snacks,Pasta,Food processing,Fresh pasta,Breakfast cereals
End products
Spaghetti,Fettuccine,Lasagna sheets,Granola bars,Tortellini,Ready-to-eat cereal flakes,Snack mixes,Muesli,Ravioli
Steps before
Cooking,Processing,Forming
Steps after
Drying,Packaging
Input ingredients
product,glycolyzed water,cool water
Output ingredients
cooled product
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Belt usable width
1000-1200 mm
Cooling length
3-6 m
Cooling temperature
Fixed,controlled via PLC
Cooling time
Adjustable
Automation
PLC-controlled
Material
Stainless steel and plastic

Operating Characteristics


Working mechanism
Conveying belt with water immersion
Cooling method
External heat exchanger with glycolyzed water
Automation level
PLC-controlled
Batch vs. continuous operation
Continuous
Cleaning method
Automatic multilayer system for easy access
Cooling control
Adjustable cooling time and water temperature
Water circulation
Recycled with adjustable sprays
Accessibility
Automatic multilayer system for distancing belt and panel

Material Compatibility


Cleanability
Stainless steel
Corrosive resistance (e.g. acids)
Stainless steel

Physical Characteristics


Machine footprint
Not specified
Conveying belt width
1000-1200 mm
Cooling length
3–6 m
Tanks
Insulated,inclined for drainage
Construction material
Stainless steel
Control panel type
PLC-controlled
Discharge method
Conveying belt with upturned sides

Custom Options


Control panel type
PLC-controlled
Cooling time adjustment
Adjustable via PLC
Water temperature regulation
Modulating valve
Water remixing control
Adjustable
Belt height adjustment for cleaning
Automatic multilayer system
Spray system adjustment
Adjustable sprays
