Industrial washing and sterilizing system for ampoules and vials

Ensure the highest hygiene standards in your liquid formulations with this washing and sterilizing system, designed to efficiently cleanse and prepare ampoules and vials for critical applications such as injectable vaccines and nutrient solutions.

Washes and Sterilizes Ampoules and Vials

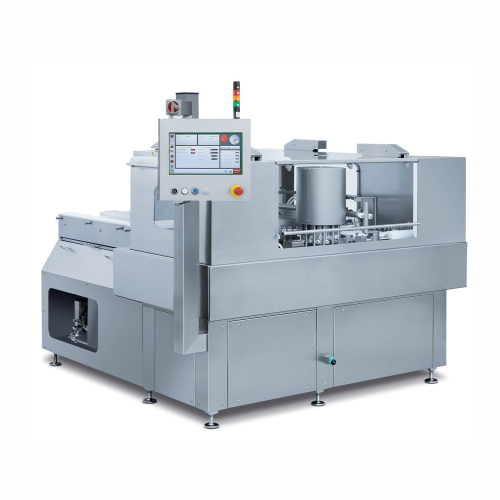

The WR Series from Marchesini Group offers an advanced rotary continuous motion solution for the internal and external washing and sterilizing of ampoules and vials. Specifically engineered for pharmaceutical and biopharmaceutical applications, these machines excel in maintaining sterility for products such as saline solutions, insulin vials, and injectable antibiotics. Featuring a high production capacity of up to 24,000 pieces per hour, the WR Series ensures reliable throughput with minimal human intervention.

Its operation utilizes integrated washing circuits, brushless drives, and fully adjustable washing parameters, allowing precise control over the washing sequence and needle centering. The water recirculation system enhances energy efficiency and minimizes resource usage. Constructed for durability, the WR Series includes mechanical drives shielded from fluid infiltration, promoting longevity and reduced maintenance needs. Compliance with stringent GMP standards guarantees compatibility with the most demanding pharmaceutical environments.

Benefits

  • Ensures high purity levels in sterile products through precise washing and sterilization processes.
  • Increases production efficiency with high-capacity throughput of up to 24,000 units per hour.
  • Minimizes maintenance interventions with fluid-resistant mechanical components.
  • Adapts to various vial and ampoule sizes with quick format changeovers.
  • Maintains operational safety and compliance with GMP standards.

General


Applications
Small volume parenteral,Liquid formulations,Nutraceuticals,Vials,Biopharmaceuticals,Ampoules,Pharmaceuticals
End products
Vitamin b12 ampoules,Insulin vials,Biologic therapies,Essential oils in ampoules,Injectable antibiotics,Nutrient-rich botanical extracts,Hormone therapy vials,Eye drops solutions,Sterile saline solutions,Small volume injectable vaccines
Steps before
Purification,Sorting
Steps after
Sterilization,Packaging
Input ingredients
ampoules,small volume parenteral vials,larger bottles
Output ingredients
washed ampoules,washed vials,washed bottles
Market info
Marchesini is renowned for manufacturing high-quality packaging machinery for the pharmaceutical and cosmetics industries, offering innovative, customized solutions with advanced automation and technology.

Technical Specifications


Machine Type
Rotary continuous motion
Production Capacity
3,000–24,000 pieces/hour
Size Range
Ampoules
Automation
Brushless drives for synchronization
Needle Stroke
Parameterizable according vial/ampoule height
Conveyance Speed
Slow for high production capacity
Washing and Blowing
Internal and external
Washing Sequence
Customizable
Water Recirculation System
Present
Filtration
Present
Pressure Control
Every washing media
Loading Mechanism
Automatic on motorized sanitary-plastic belt
Unloading Mechanism
Automatic on tray or in-line to sterilization tunnel

Operating Characteristics


Working mechanism
Rotary continuous motion
Integrated steps
Internal and external washing
Batch vs. continuous operation
Continuous
Automation level
High,PLC-controlled
Cleaning method
Integrated washing circuits
Changeover time
Quick and simple format change
CIP/SIP
Not specified,assumes CIP integrated
Operator interface
Industrial PC and touch-screen monitor

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Minimal installation space
Control panel type
Industrial PC with touch-screen monitor
Discharge method
Automatic unloading on tray or in-line
Machine drives
Brushless drives
Washing circuits
Complete separation between different washing circuits

Custom Options


Control panel type
Industrial PC and touch-screen monitor
Integration possibilities
Easy in-line connection with other machines
Washing/blowing sequence
Customizable
Needle stroke parameterization
According to vial/ampoule height
Format change flexibility
Quick and simple
