Industrial pasteurizer for efficient bacterial reduction

Ensure your food products are safe with an industrial pasteurizer, which efficiently reduces bacterial presence through controlled steam jetting, enhancing product quality and shelf life.

Reduces Bacteria with Steam Jet Pasteurization

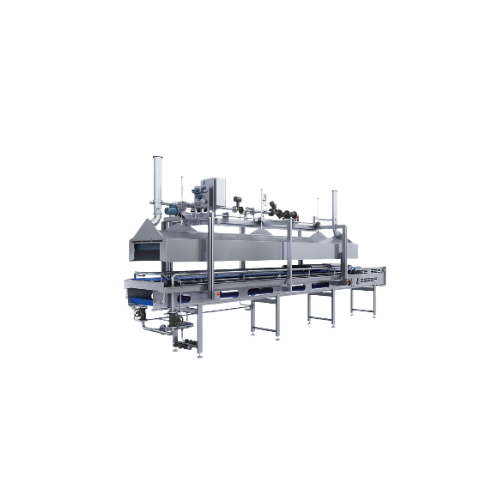

The PV – Pasteurizer Standard and PV HE – Pasteurizer High Efficiency from GEA are designed for effective bacterial reduction in food processing applications. These models operate on a steam jetting principle, using dual ramps to distribute steam across product surfaces. Ideal for fresh pasta, snacks, and breakfast cereals, they ensure hygienic production. The PV models boast a significant reduction in steam wastage, achieving a 50% and 75% decrease, respectively, compared to traditional systems, enhancing energy efficiency. Conveyor belt widths range from 750 to 2000 mm, with pasteurization chamber lengths from 3 to 25 meters, accommodating various production scales. Fully automatic, these systems seamlessly integrate into existing lines, offering PLC controls and efficient steam management. The stainless-steel construction ensures durability and ease of cleaning with easy-access features for maintenance. Optional features like combined hot water and steam jet pre-cooking further customize processing needs.

Benefits

  • Enhances energy efficiency by reducing steam usage by up to 75%.
  • Ensures product safety with effective bacterial reduction.
  • Increases production capacity by 30% with the High Efficiency model.
  • Facilitates easy maintenance and cleaning with openable panels and stainless-steel construction.
  • Integrates seamlessly into production lines with automatic, continuous operation.

General


Applications
Food processing,Breakfast cereals,Fresh pasta,Snacks
End products
Extruded snacks,Cornflakes,Tortilla chips,Breakfast muesli,Potato chips,Granola,Ravioli
Steps before
Product Sorting,Pre-cleaning
Steps after
Cooling,Product Packing,Further Processing
Input ingredients
fresh pasta,snacks,breakfast cereals
Output ingredients
pasteurized product,bacteria-reduced products,precooked product
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Steam Jet Usage
0.5 kg steam/kg
Steam Waste Reduction
50% less compared to other pasteurizers
Steam Emission
0.27 kg steam/kg
Production Capacity Increase
30% increase in High Efficiency model
Belt Usable Width
750-1500-2000 mm
Pasteurizing Chamber Length
3-25 m (Standard),5-25 m (High Efficiency)
Material
Stainless steel
Top Panel Isolation
Stone-wool
Cleaning Method
Completely washable

Operating Characteristics


Working mechanism
Steam jetting system
Steam extraction
Laminar flow hood
Cleaning method
Completely washable,stainless steel
Automation level
Modulating valve controlled
Batch vs. continuous operation
Inline Continuous
Energy efficiency
Steam waste reduced by 50%

Material Compatibility


Cleanability
Stainless-steel structure allows complete washability
Corrosive resistance (e.g. acids)
Stainless steel provides resistance
Biological compatibility
Suitable for food products

Product type Characteristics


Container type
Fresh pasta / Snacks / Breakfast cereals
Product condition
Precooked / Raw
Size
750-2000 mm belt width

Physical Characteristics


Belt usable width
750-1500-2000 mm
Pasteurizing chamber length
3-25 m
Treatment chamber shape
Circular sections
Steam jet system
Progressive ramps
Steam extraction
Vapor hoods
Construction material
Stainless-steel
Top panel insulation
Stone-wool
Bottom panel function
Collects and drains condensed water
Belt material
Modular plastic

Custom Options


Control Panel Type
HMI / PLC
Integration Possibilities
SCADA / MES systems
Belt Width Options
750-1500-2000 mm
Chamber Length Options
3-25 m
Steam Jet Control
Modulating Valve
Steam Jet Emission
0.5 kg steam/kg
Steam Saving Rate
50% Reduction
Material
Stainless Steel
Optional Features
Jet Steaming with Hot Water
Machine Structure
Washable / Stainless Steel
Top Panel Insulation
Stone-Wool
Easy Access Design
Openable Top Panel
Independent Ramp Control
Yes
Steam Extraction System
Laminar Flow Hood
High Efficiency Model
Steam Jet Emission 0.27 kg steam/kg
Production Capacity Increase
30%
Steam Waste Reduction
75% Compared to Others
