Industrial nozzle separator for high solids concentration

Optimize your production with high-performance nozzle separators designed to efficiently handle challenging solid-liquid separations, ensuring purity and consistency across diverse processing lines.

Separates High Solids from Liquids Continuously

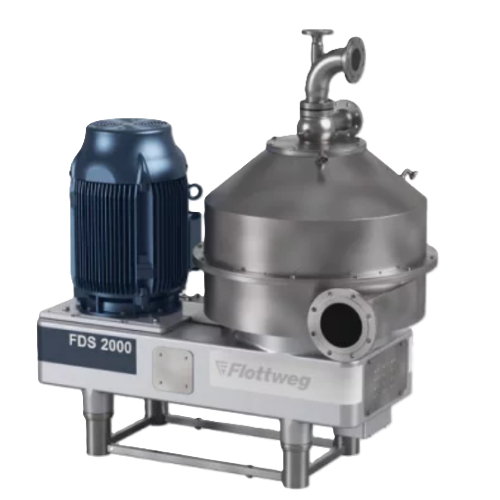

The FDS2000 Nozzle Separator from Flottweg is designed to handle the challenges of separating high solids concentrations in continuous operations. This German-engineered separator employs a specially designed disc stack for efficient clarification, with automatic solid discharge via nozzles. Ideally suited for applications in the starch, pharmaceutical, and biotechnology sectors, it processes end-products like wet starch, yeast extract, and almond milk. With its innovative energy-efficient design, the FDS2000 uses a lightweight bowl, reducing energy consumption significantly. The PLC-controlled system ensures smooth integration into production lines, allowing flexible speed adjustments via a frequency converter. Made from high-quality stainless steel, it meets stringent hygiene standards and features a closed-loop lubrication system for minimized wear and prolonged service life. Enhanced by an easy-maintenance design, including quick nozzle and drive belt replacements, this separator ensures high availability and low operating costs. Additionally, it is compliant with CIP processes for thorough, contamination-free cleaning.

Benefits

  • Maximizes solids separation efficiency with continuous operation for uninterrupted production.
  • Reduces energy costs through lightweight bowl construction and optimized motor control.
  • Ensures high production line compatibility with flexible speed regulation and remote monitoring capability.
  • Minimizes maintenance downtime with fast and easy nozzle and drive belt replacement.
  • Complies with strict hygiene standards, suitable for food and pharmaceutical applications.

General


Applications
Municipal sewage sludge,Industrial waste,Edible fats and oils,Chemicals,Biotechnology,Fermentation broths,Protein oil crops,Starch,Bioplastics,Protein starch crops,Vegetable milk alternatives,Plastics recycling,Fermented dairy products,Pharmaceuticals,Beverages,Biofuels,Beer production,Food residue,Waste paper,Algae
End products
Lactic acid,Biogas,Wastewater effluent,Omega-3 supplements,Wet starch,Butanol,Orange juice,Almond milk,Penicillin,Biodiesel fuel,Wort recovery,Soy protein isolate,Animal feed,Pla (polylactic acid),Canola oil,Recycled polyethylene,Sunflower oil,Kefir,Yeast extract,Recycled corrugated cardboard
Steps before
Product Preparation,Mixing,Fermentation
Steps after
Clarification Phase,Fractionation,Concentration,Filtration
Input ingredients
wet starch,solids,liquids,beer wort,fermentation broths,bioplastics,chemicals,protein,starch crops,vegetable milk alternatives,slaughterhouse by-products,fruit juices,vegetable juices,oil sludge,mineral oils,manure
Output ingredients
clarified liquid,pure solids,fractioned particles,cleaned phase,concentrates,clarified phase
Market info
Flottweg is renowned for manufacturing high-performance centrifuges, separators, and belt presses, specializing in solid-liquid separation technology for various industries. They are known for innovation, quality, and customized solutions meeting specific customer needs.

Technical Specifications


Energy Consumption
Low
Clarification Area
Largest possible
Dimensions
2000x1200x2200 mm / 6.56x3.94x7.22 ft
Weight
2800 kg / 6170 lb
Phase Separator Type
2-phase and 3-phase
Drive System
Three-phase AC motor with belt drive
Lubrication System
Closed-loop lubrication
Bowl Design
Energy-optimized,low-wear
Nozzle Type
Carbide wear protection

Operating Characteristics


Energy Consumption
Low energy consumption
Separation Process
Continuous separation
Clarification Performance
High solids concentration
Hygienic Design
Hygienic and easy cleaning
Operational Mode
2-phase and 3-phase separation
Process Type
Inline Continuous
Bowl Design
Robust and compact
Automation Level
Automated with frequency converter control

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


3A Sanitary Standards
Yes
GMP Compliance
Yes
FDA Materials
Yes
CE marking
Yes
EHEDG certification
Yes

Physical Characteristics


Machine footprint
2000x1200x2200 mm (6.56x3.94x7.22 ft)
Weight
2800 kg (6170 lb)
Design
Robust and compact
Bowl design
Energy-optimized,low-wear
Nozzle separator bowl
Robust construction,easy maintenance
Discharge method
Nozzle discharge
Spindle drive
Compact spindle drive

Custom Options


Compact footprint
Robust and compact design
Control panel type
InGo Visualization
Discharge method
Nozzle discharge
Lubrication system
Closed-loop lubrication system
Nozzle type
Carbide wear protection
