Industrial fruit washing and loading hopper system

Streamline your juice production by ensuring optimal fruit preparation—including selection, washing, and storage—prior to extraction, enhancing both efficiency and product quality.

Selects, Washes, Loads, and Prepares Fruit

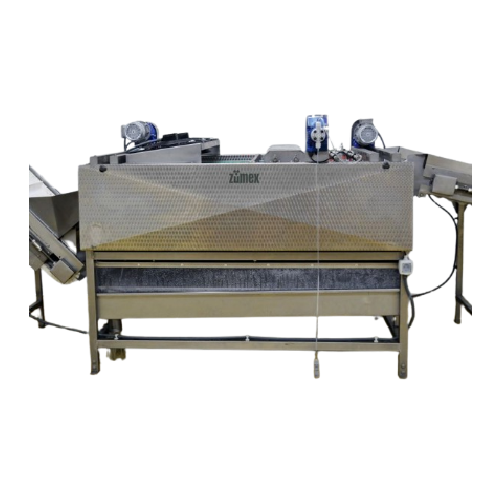

The Selection, Washing, and Loading Hopper Line Z450 from Zumex offers an integrated solution for juice producers and fruit processing companies. This line uniquely combines aluminum roller conveyors for meticulous fruit selection with a programmable IP65 control panel, enabling precise speed regulation to adapt to production demands. Equipped with a brush washer featuring three independent areas—washing, rinsing, and drying—this equipment efficiently handles citrus fruits, vegetables, and multi-fruit inputs for juice and pulp extraction or essential oil production. The system ensures continuous operation with its adjustable unloading belt and fruit level control via photocell. Designed for seamless integration, the Z450 line optimizes upstream stages of juice processing, promoting operational efficiency and consistency in end-product quality.

Benefits

  • Minimizes labor costs with programmable control panels that automate speed adjustments and emergency responses.
  • Enhances juice quality by meticulously selecting and washing fruit before extraction.
  • Increases operational efficiency through continuous, uninterrupted pre-processing capabilities.
  • Reduces water usage with targeted rinse cycles and integrated detergent dispensing.
  • Optimizes space and resource utilization by combining selection, washing, and storage in a single streamlined system.

General


Applications
Citrus juices,Multi-fruit solutions,Vegetable juices,Juice and pulp extraction,Fruit juices,Essential oils
End products
Apple carrot ginger juice,Citrus essential oil,Lemon juice,Orange essential oil,Orange juice,Mixed berry juice,Pulp for fruit purees,Spinach juice,Grapefruit juice,Lemon essential oil,Cold-pressed juice blends,Carrot juice
Steps before
Fruit selection,Fruit unloading,Fruit tipping
Steps after
Juice extraction,Pulp extraction,Bottling,Capping,Labelling,Packing
Input ingredients
fruits,citrus,vegetables,boxes of fruit
Output ingredients
washed fruit,dried fruit,sorted fruit,damaged fruit removed
Market info

Technical Specifications


Control Panel
Programmable IP65 with speed regulator
Brush Washing Areas
Three independent areas
Brush Rows
15 rows of nylon brushes
Shower Lines
4 shower lines (2 for detergent,2 for rinsing)
Drying Fans
2 fans in drying area
Roller Conveyor Material
Aluminium
Fruit Level Control
Via photocell
Speed Adjustment
Speed variator for brushing and selection
Storage Hopper
With adjustable unloading belt

Operating Characteristics


Automation level
Programmable IP65 control panel with speed regulator
Batch vs. continuous operation
Inline Continuous
Cleaning method
CIP (Clean-In-Place)
Integrated steps
Selection,Washing,Drying,Storage
Control system
Luminous and acoustic emergency signals with independent emergency pushbuttons
Speed control
Speed adjustment of roller conveyor and washer via speed variator
Fruit level control
Photocell for fruit level management

Product type Characteristics


Fruit Handling
Fruit Selection,Washing,Storage

Physical Characteristics


Control panel type
Programmable IP65 control panel
Discharge method
Adjustable unloading belt
Brush washer configuration
15 rows of nylon brushes
Roller conveyor material
Aluminum
Fan count for drying
2 fans
Shower lines count
4 lines (2 detergent,2 rinsing)

Custom Options


Control panel type
Programmable IP65 control panel
Speed control
Frequency variators
