Industrial fluid and paste preparation system
Eliminate air bubbles and achieve uniform viscosity in fluids and pastes to ensure precise dosing and seamless integration in complex manufacturing workflows.
Degasses and Homogenizes Viscous Fluids

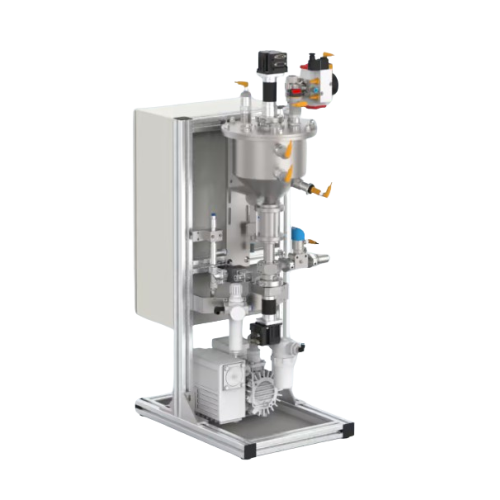

ViscoTec’s ViscoTreat series offers specialized degassing and preparing systems designed for high-viscosity fluid applications across diverse industries such as pharmaceuticals, automotive, and electronics. Utilizing a vacuum-based degassing process, these systems continuously extract air and bubbles to ensure fluid homogeneity, critical for reliable dosing and mixing in manufacturing applications. The ViscoTreat systems support viscosities up to 2,000,000 mPas and are available in various container sizes, from 2.5 liters to 80 liters, accommodating different production scales. Integration into production lines is seamless, thanks to their automated and continuous operation capabilities, which enhance production efficiency. Constructed with high-quality materials for chemical resistance, these systems are compatible with a wide range of fluids, ensuring versatility. Additionally, ViscoTec offers customization and engineering support, allowing for tailored system designs to meet specific production requirements. Whether dealing with resin-based 3D printing or pharmaceutical suspensions, the ViscoTreat ensures optimal material preparation for precise manufacturing outcomes.
Benefits
- Ensures flawless dosing and mixing by eliminating air and bubbles, enhancing product quality.
- Accommodates high-viscosity fluids, extending application range and versatility.
- Reduces production interruptions with automated and continuous processing.
- Supports diverse production scales with customizable container sizes.
- Enhances operational efficiency and fluid compatibility with robust material construction.
- Applications
- Food,Automotive,E-mobility,Consumer goods,Cosmetics,3d printing,Dental,Aerospace,General industry,Medical technology,Electronics,Pharmaceuticals
- End products
- Biomedical implants,Pharmaceutical suspensions,Battery gels,Aerospace sealants,Creams and lotions,Semiconductor encapsulants,Sauces and purees,Toothpaste,Resin-based 3d printed objects,Industrial coatings,Automotive adhesive pastes
- Steps before
- Material Preparation,Mixing,Pre-processing
- Steps after
- Dosing,Packaging,Assembly
- Input ingredients
- fluids,pastes,homogeneous pastes,liquids,high viscosity fluids
- Output ingredients
- degassed product,air-free pastes,air-free liquids,homogeneous pastes,homogeneous liquids
- Market info
- Visco Tec is known for its precision dispensing and dosing technology, specializing in equipment for viscoelastic fluids, offering reliable, high-quality solutions for industries like pharmaceuticals, food, cosmetics, and general manufacturing, renowned for engineering excellence and innovation.
- Cartridge size
- 300 ml to 80 l
- Withdrawal capacity
- max. 810 ml/min
- Viscosity range
- Up to 2,000,000 mPas
- Dosing volume
- ~1.7 to ~13.5 ml/rev
- Volume flow
- 0.4 to 910 ml/min
- Working mechanism
- Endless Piston Principle
- Batch vs. continuous operation
- Continuous
- Integrated steps
- Degassing,Homogenization
- Air incorporation control
- Degassing under vacuum
- Automation level
- Manual / Automatic
- Viscosity handling capability
- 1,000,000 to 2,000,000 mPas
- Changeover time
- 0
- Viscosity range
- 1,000,000 mPas to 2,000,000 mPas
- Bubble elimination
- Yes
- Homogeneity
- Air-free pastes and liquids
- Container size
- 300 ml to 80 l
- Volume flow rate
- 0.4 to 910 ml/min
- Cartridge sizes
- 300 ml to 80 l
- Degassing capability
- Yes
- Container size
- 2.5 l,15 l,25 l,80 l
- Air-free and homogeneous processing
- Yes
- Tank shape
- Cylindrical
- Container size
- 2.5 l,15 l,25 l,80 l
- Discharge method
- Continuous under vacuum
- Control panel type
- HMI / Touchscreen
- Integration possibilities
- PLC / SCADA
- Container size options
- 2.5 l,15 l,25 l,80 l
- Viscosity handling range
- Up to 2,000,000 mPas
- Volume flow options
- 0.4 to 910 ml/min
