Industrial effluent ph neutralization system

Effectively balance effluent pH levels with a system designed to optimize chemical reactions, ensuring your wastewater management meets environmental standards without residual reactions.

Neutralizes and Adjusts pH of Effluent Streams

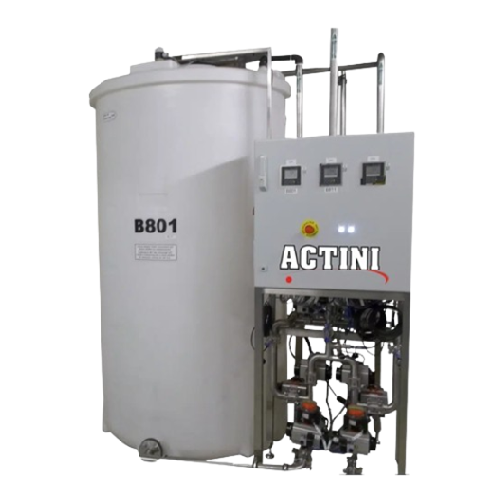

The ACTINI Batch Neutralization System offers robust solutions for managing effluent pH in industries such as biopharmaceuticals, chemical processing, and wastewater treatment. This modular system integrates seamlessly into operations needing precise pH adjustments. Its design features automatic caustic and acid injection for precise neutralization, utilizing a pH probe for real-time monitoring and control within the recirculation loop.

Designed to handle capacities ranging from 1,000 to 16,000 liters per day, it caters to various scale operations with different tank sizes. The polyethylene neutralization tank ensures corrosion resistance, while the high-flow centrifugal pump facilitates efficient mixing and discharge processes, cycling the tank volume more than five times per hour.

Widely applied in the production of protein therapeutics, specialty chemicals, and the neutralization of industrial solvents, this system supports compliance with environmental safety standards. Optional features such as a plate heat exchanger for handling effluents over 60°C, a second redundant tank, and dedicated chemical solution tanks enhance operational flexibility. By including a dedicated electrical cabinet with HMI, the system ensures integration ease and extended monitoring capabilities for operators.

Benefits

  • Enhances environmental compliance by precisely adjusting effluent pH levels.
  • Streamlines operations with automated pH monitoring and control, reducing manual intervention.
  • Increases flexibility with modular design and capacity options tailored to specific requirements.
  • Ensures safe handling of aggressive chemicals with robust, corrosion-resistant polyethylene tanks.
  • Optimizes energy use through efficient recirculation and mixing processes.

General


Applications
Biopharmaceuticals,Effluent management,Fine chemicals,Wastewater treatment
End products
Pharmaceutical effluent,Specialty chemicals,Monoclonal antibodies,Chemical waste neutralization,Industrial solvents,Protein therapeutics
Steps before
Collection of effluents,Decontamination
Steps after
Effluent discharge,Wastewater treatment
Input ingredients
effluent,wastewater,caustic,acid
Output ingredients
neutralized effluent,adjusted pH effluent
Market info
Actini is known for its expertise in manufacturing advanced thermal treatment systems, notably for biowaste decontamination, ensuring biosafety and compliance with rigorous environmental standards. They hold a strong reputation for innovative and reliable engineered-to-order solutions.

Technical Specifications


Capacity
1,000 to 16,000 liters/day
Tank Volume
530 to 4,200 liters
Automation
Automatic pH adjustment
Neutralization Contact Time
30 minutes
PH Control Method
pH probe in recirculation loop
Mixing Rate
More than 5 times tank volume per hour
Dimensions (BNS-300)
1,290 mm x 990 mm x 1,180 mm
Dimensions (BNS-750)
1,500 mm x 1,200 mm x 1,690 mm
Dimensions (BNS-1600)
1,920 mm x 1,470 mm x 2,040 mm
Dimensions (BNS-1600 larger)
2,120 mm x 1,820 mm x 2,390 mm
Chemical Injection
Caustic and acid

Operating Characteristics


Working mechanism
Batch Neutralization
Automation level
Automatic pH Control
Integrated steps
Caustic and acid injection,dilution,mixing,pH adjustment
Batch vs. continuous operation
Batch
Contact time
30 minutes
Cleaning method
Not specified

Material Compatibility


Corrosive resistance (e.g. acids)
Polyethylene
Cleanability
Easy to clean surfaces
Biological compatibility
Suitable for neutralizing effluents
Abrasion resistance
Polyethylene

Physical Characteristics


Tank Size
530 L - 4,200 L
Machine Footprint
BNS-300
BNS-750
1,500 mm x 1,200 mm x 1,690 mm
BNS-1600
1,920 mm x 1,470 mm x 2,040 mm
BNS-1600 Large
2,120 mm x 1,820 mm x 2,390 mm
Tank Shape
Polyethylene
Feed/Discharge Method
Automatic Pumping

Custom Options


Neutralization tank redundancy
Single / Redundant
Control panel type
Dedicated electrical cabinet with HMI
Inlet for connection
Customer’s wastewater connection
Chemical solution tanks
Dedicated
Heating option
Plate heat exchanger for effluents above 60°C
