Industrial effluent decontamination solution

Ensure safe and compliant liquid effluent management with a modular decontamination system that scales with your production needs, optimizing steam energy use and offering seamless integration into your continuous processes.

Decontaminates and Sterilizes Liquid Effluents

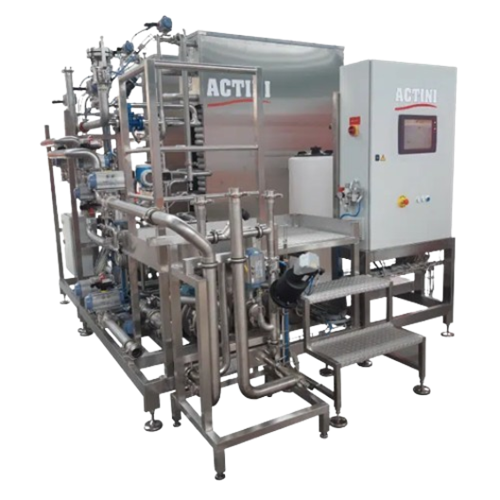

The Ultimate Plus from Actini Group is a modular, continuous decontamination system specifically engineered for the biopharmaceutical and chemical industries. This system excels in handling high-capacity liquid effluent treatment, enabling efficient decontamination and sterilization for compliance with safety and environmental standards. It operates using a continuous flow, utilizing steam and an energy recovery section to preheat and precool effluents, achieving up to 80% thermal energy savings. The Ultimate Plus features a fully automated PLC control with a user-friendly touch screen interface for seamless process management, including decontamination, sterilization, and fluid circulation. Its modular design supports scalability, with a base capacity of 3,000 liters per hour, expandable up to 12,000 liters per hour with additional extensions, making it adaptable to varying production demands. Constructed with all-welded heat exchangers to prevent leakage and cross-contamination, the system is equipped for easy integration into existing processes, requiring no additional automation studies. Compliance with both European and American standards ensures its applicability across global markets, and an optional CIP system facilitates efficient maintenance and cleaning operations.

Benefits

  • Scalable design adapts to production increases, minimizing future investment costs.
  • Reduces energy expenses by 80% with an integrated heat recovery system.
  • Enhances safety through automated, traceable operations, reducing manual oversight.
  • Complies with international standards, facilitating global market integration.
  • Modular configuration supports flexible capacity expansion to meet changing demands.

General


Applications
Fine chemicals,Chemical effluents,Pharmaceutical effluents,Biopharmaceuticals,Liquid effluent treatment
End products
Steps before
Collection of contaminated liquid,Effluent storage
Steps after
Discharge of decontaminated liquid,Effluent cooling,Traceability documentation
Input ingredients
contaminated liquid,liquid effluent,effluent with temperature above 25°C
Output ingredients
decontaminated liquid,preheated effluent,pre-cooled effluent
Market info
Actini is known for its expertise in manufacturing advanced thermal treatment systems, notably for biowaste decontamination, ensuring biosafety and compliance with rigorous environmental standards. They hold a strong reputation for innovative and reliable engineered-to-order solutions.

Technical Specifications


Capacity
16,000 to 192,000 liters/day
Flow Rate
3,000 liters/hour (per module)
Number of Extensions
Up to 3 extensions
Energy Source
Steam
Temperature Range
80°C to 135°C
Operation Time
Up to 16 hours/day
Automation
Fully automated,PLC-controlled
Dimensions (Main Skid)
1,700 x 2,480 mm
Height
2,390 mm
Dimensions (Extension Module)
940 x 2,530 mm
Height
2,390 mm
Energy Recovery
Yes,up to 80% savings
Supervision System
Touch screen control
Cycle Control
Managed by PLC
Pumping System
Doubling option for redundancy
Heating and Flow Rate Control
Independent per exchanger

Operating Characteristics


Working mechanism
Continuous system
Integrated steps
Collection to discharge of decontaminated liquid
CIP/SIP
Direct steam sterilization
Batch vs. continuous operation
Continuous
Automation level
Fully automated,PLC-controlled
Energy efficiency
Energy recovery section for natural preheating and pre-cooling
Cleaning method
Automatic direct steam sterilization
Flow capacity flexibility
Modular,scalable with extensions
Operation control
Control panel and sensors
Temperature range
80°C to 135°C

Physical Characteristics


Machine Footprint (ULT-3000)
1,700 x 2,480 mm
Machine Height (ULT-3000)
2,390 mm
Machine Footprint (EXT-3000)
940 x 2,530 mm per module
Machine Height (EXT-3000)
2,390 mm
Modular Design
Yes,up to 3 extensions
Discharge Method
Automated,via PLC and control panel
Heating,Flow Control
Individual per exchanger
Pumping System
Flow range 3,000 to 12,000 l/h

Custom Options


Control panel type
Touch screen
Integration possibilities
Automation programs
Modules and extensions
3,000-liter/hour modules
Customization of holding times
Adjustable scale
Cooling section
Additional option if effluent temperature is above 25°C
Pumping system
Possible redundancy
Energy recovery section
Natural preheating and precooling
