Industrial dicer for small to intermediate size ranges
Boost your production capacity with a versatile dicing solution that efficiently handles high-speed continuous operations for a variety of snack and confectionery products, enhancing the uniformity of your diced, granulated, and sliced goods.

Processes and Dices Snack and Confectionery Products

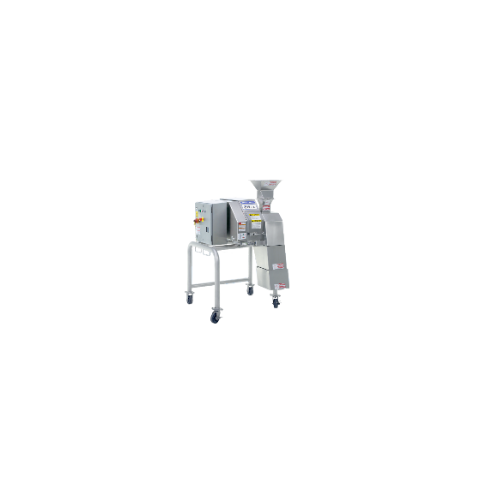

The Affinity CD-L Dicer from Urschel Laboratories is a versatile solution for food processors, designed to enhance efficiency in dicing, granulating, and slicing operations. Combining elements from Urschel’s CD-A and L-A models with the Affinity Integra Dicer’s design, it doubles the processing capacity of Model L-A units. Operating under a continuous, high-speed production mode, this dicer is ideal for creating uniform dices of dried fruits, nuts, and confectionery products. Equipped with a 5 HP motor, it features a sanitary design that separates the food zone from mechanical components, facilitating easy maintenance and washdowns. The optional integrated oil spray system optimizes the processing of sticky products. It supports a range of applications, from processing chocolate covered toffee bars to sugar infused cranberries. With simple push-button operation and easy cleanup features, the Affinity CD-L streamlines integration into existing production lines while maintaining product quality and operational efficiency.
Benefits
- Doubles processing capacity compared to previous models, enhancing efficiency.
- Reduces labor requirements with simple push-button operation and easy maintenance.
- Ensures sanitary processing with complete separation of food and mechanical zones.
- Optimizes sticky product processing with an optional oil spray system.
- Facilitates rapid cleanup and changeovers with hinged access panels.
- Applications
- Nuts,Sweets,Dried fruits,Snacks
- End products
- Sugar infused cranberries,Fruit leather,Chocolate bars,Dried apricots,Cream filled wafer cookies,Chocolate covered toffee bars,Bacon jerky,Dried dates
- Steps before
- Drying,Pre-cutting,Ingredient sorting
- Steps after
- Packaging,Sterilization,Coating
- Input ingredients
- dried fruits,almond,chocolate covered toffee bar,cream filled wafer cookie,pecan,bacon jerky,fruit leather,chocolate bar,dried apricot,dried date,sugar infused cranberry
- Output ingredients
- granulation,dice,strip
- Market info
- Urschel is known for its expertise in precision cutting technology and manufacturing industrial food processing equipment, especially cutting machines. It has a strong reputation for quality and innovation in delivering engineered-to-order solutions for the food processing industry.
- Motor Power
- 5 HP (3.7 kW)
- Maximum Infeed Size
- 1/2” (12.7 mm)
- Product Size Range
- Small to intermediate dices
- Operating Speed
- High/Low speed options
- Hygienic Design
- Sanitary,separate food and mechanical zones
- Dimensions (L x W x H)
- 42.25" x 45.89" x 67.53"
- Net Weight
- 1100 lb (499 kg)
- Cut Types
- Dices/Strips/Granulations
- Knife Cuts
- Circular 1/8" to 2" (3.2 to 50.8 mm),Crosscut 1/8" to 1-1/2" (3.2 to 38.1 mm)
- Operation Type
- Continuous operation
- Optional System
- Integrated oil spray system
- Working mechanism
- Dicing,granulating,and strip cutting
- Automation level
- Manual / Push-button control
- Batch vs. continuous operation
- Continuous
- Cleaning method
- Easy cleanup and maintenance,hinged access panels
- Energy efficiency
- 5 HP (3.7 kW) motor
- Feed system
- Feed spindle,feed drum
- Sanitation design
- Food zone separated from mechanical zone
- Integrated steps
- Integrated oil spray system for sticky products
- Cleanability
- Sanitary design with easy washdown and maintenance
- Corrosion resistance
- Stainless steel product contact parts
- Product compatibility
- Dried fruits,sticky products
- Abrasion resistance
- Durability in dicing processes
- Density/particle size
- Up to 1/2” (12.7 mm) infeed
- Cut size range
- 1/8 to 2" (3.2 to 50.8 mm)
- Maximum infeed size
- 1/2” (12.7 mm)
- Type of cuts
- Dices/Strips/Granulations
- Product compatibility
- Dried fruits,sticky products
- Capacity comparison
- Twice the capacity of Model L-A
- Machine Footprint
- Length
- Net Weight
- 1100 lb (499 kg)
- Motor Power
- 5 HP (3.7 kW)
- Feed/Discharge Method
- Feed spindle,feed drum
- Control panel type
- Push button operation
- Discharge method
- Continuous operation
