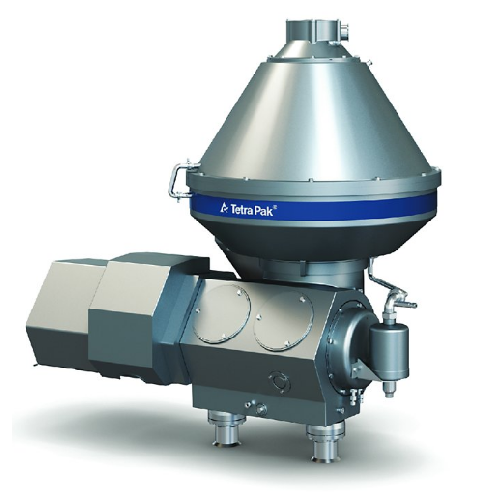

Industrial clarifier for dairy and plant-based products

Optimize your production line with cutting-edge clarification technology designed to enhance beverage purity and consistency, ensuring superior quality across a wide range of dairy, plant-based, and whey products.

Clarifies and Separates Liquids in Continuous Operations

The Tetra Pak® Clarifiers are engineered to optimize the clarification and separation processes in dairy and beverage production lines. Leveraging an AirTight design with hermetic seals, these clarifiers prevent air intake, ensuring superior product integrity. Ideal for applications such as dairy milk, whey, and plant-based beverages, they handle capacities ranging from 15,000 to 70,000 liters per hour. The centrifugal clarifier enhances efficiency by removing impurities like bacteria and somatic cells at controlled temperatures, crucial for maintaining product quality in products like whole milk, Greek yogurt, and soy milk. Automation is integrated through PLC systems, permitting seamless operational control and remote monitoring. Energy efficiency is improved with the implementation of Encapt™ technology, reducing energy usage by up to 40%. Constructed from corrosion-resistant Duplex steel, the clarifiers offer extended longevity and include a CIP system for efficient cleaning. Customization is available to meet specific process demands, supported by comprehensive engineering assistance from Tetra Pak®.

Benefits

  • Maximizes product purity by effectively removing impurities like bacteria and somatic cells.
  • Enhances energy efficiency, cutting consumption by up to 40% with Encapt™ technology.
  • Extends equipment lifespan with corrosion-resistant Duplex steel construction.
  • Minimizes operational disruptions with continuous, high-speed processing.
  • Offers versatility across diverse liquid applications, including dairy and plant-based beverages.

General


Applications
Cream,Plant-based beverages,Dairy milk,Uht milk,Sauces,Cheese,Yoghurt,Pasteurized milk,Fruit preparations,Desserts,Whey,Baby food,Flavored milk
End products
Skimmed milk,Coconut yogurt,Infant formula,Almond milk,Soy milk,Greek yogurt,Cheese sauce,Chocolate mousse,Ricotta cheese,Lactose-free milk,Uht strawberry milk,Gouda cheese,Fruit jam,Espresso-flavored milk,Whole milk
Steps before
Filtration,Heating,Whey collection,Plant-based ingredient preparation
Steps after
Whey separation,Spore removal,Milk skimming,Packaging
Input ingredients
dairy milk,whey,plant-based beverages,raw ingredient
Output ingredients
clarified milk,clarified whey,clarified plant-based beverages
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
15,000 l/hr to 70,000 l/hr
Temperature for Milk Clarification
50–60 °C
Material
Duplex and Super Duplex steel
Energy Efficiency
Up to 40% reduction with Encapt™ technology
Discharge Method
Product discharge pump

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture
Air incorporation control
Hermetic seal to prevent air entry
Changeover time
Minimal due to flexible capacity

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact design
Feed method
Hermetic inlet seals
Discharge method
Product discharge pump
Material
Duplex and Super Duplex steel
Design
AirTight design
Spindle
Hollow spindle
Bowl type
Corrosion resistant bowl

Custom Options


Control panel type
Touchscreen/PLC
Integration possibilities
SCADA/IoT-ready
Automation level
Fully automated/Manual override
