Individually ventilated cage system for Spf rodents
Ensure optimal conditions for your laboratory animals with a cage system that prevents cross-contamination, maintains controlled environmental parameters, and facilitates stringent biological controls.

Controls Environment and Ventilation for Rodent Cages

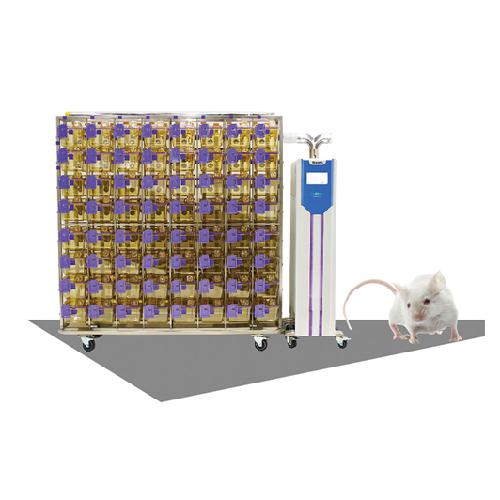

The BCR-I04 series from Shinva provides an optimized solution for managing SPF rodents in laboratory environments. Each individually ventilated cage within the system ensures independent air supply and precise environmental control, significantly reducing the risk of cross-contamination. Ideal for Experimental Animal Centers, Drug Testing Facilities, and Quarantine Agencies, the system handles controlled environment rodents with efficiency.
This system incorporates programmable logic controllers (PLCs) and world-renowned ventilation fans, enabling stable and reliable continuous operation. It supports remote monitoring capabilities for proactive system management and offers energy savings of over 30% by minimizing the ventilation rate needed in the animal room.
Utilizing high-precision wind speed and pressure detection, alongside sensors for temperature and humidity, the BCR-I04 ensures optimal conditions are maintained within each cage, reflecting real conditions rather than ambient room metrics. The unit is constructed from durable SUS304 stainless steel and features PSU/PPSU cage materials that endure high-temperature sterilization, enhancing longevity and reducing maintenance needs.
The design includes a unique, non-intrusive air intake and exhaust valve system to prevent cross-infection between cages. A built-in uninterruptible power supply (UPS) assures continuous operation despite external power interruptions. Certified by authoritative third-party organizations, this system guarantees reliable performance for demanding laboratory needs.
Benefits
- Minimizes cross-contamination risks with independent cage ventilation.
- Cuts animal room energy costs by more than 30% through optimized ventilation.
- Enhances research accuracy with precise environmental condition controls.
- Ensures continuous operation during power outages with UPS support.
- Reduces labor demands with remote monitoring and automatic alarm systems.
- Applications
- Experimental animal centers,Drug testing centers,Centers for disease control,Quarantine agencies
- End products
- Controlled environment rodents,Experimental lab animals,Test animal models,Lab mice,Spf rodents,Lab rats,Biological control specimens,Quarantine rodents
- Steps before
- Animal Quarantine,Pre-cleaning of Cage Components,Preparation of Fodder and Water
- Steps after
- Cleaning and Disinfection,Sterilization of Cages,Data Recording and Monitoring
- Input ingredients
- SPF rodents,air supply,temperature and humidity sensor readings,uninterruptible power supply,HEPA filter,PSU/PPSU materials,drinking bottle,feed box
- Output ingredients
- waste gas,temperature and humidity data,alarm notifications,remote monitoring data
- Market info
- Shinva is known for manufacturing medical equipment, including sterilization and disinfection devices, radiotherapy products, and diagnostic imaging systems, demonstrating expertise in healthcare solutions and a strong reputation for quality in the medical industry.
- Air Exchange Rate
- 90-120 ACH
- Ventilation rate
- Adjustable
- Pressure control
- Positive and Negative
- Temperature detection
- Independent Sensor
- Humidity detection
- Independent Sensor
- Automation
- Programmable Logic Controller (PLC)
- Uninterrupted power supply (UPS)
- Yes
- Filter timing function
- Automatic reminder
- Alarm detection
- Multiple alarms
- Remote monitoring
- Network Interface Enabled
- Cage material
- PSU/PPSU
- Cage sterilization cycles
- PSU
- Cage stacking height
- <50mm
- Exhaust filter
- Quick detachable
- Cage seal
- Double hollow medical silicone ring
- Air intake and exhaust valves
- Non-intrusive structure
- Filter membrane pore size
- 0.2μm
- Temperature accuracy
- High precision
- Humidity accuracy
- High precision
- Energy Saving
- 30%
- Work stability
- Stable and reliable
- Day and Night operation
- Automatic switch
- Programmable Logic Controller (PLC)
- Stable and reliable operation
- Day and night operation mode
- Automatic switching
- Uninterrupted power supply (UPS)
- Ensures continuous fan operation
- Alarm detection
- Multiple alarms for stable operation
- Remote monitoring capability
- Network interface for centralized monitoring
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Material
- PSU/PPSU,SUS304 Stainless Steel
- Stacking height
- Less than 50mm
- Cage seal type
- Double hollow medical silicone ring
- Cage guide rail
- Positioning indicator equipped
- Cage air intake and exhaust valve
- Non-intrusive structure
- Cover buckle type
- Light pressure type lock structure
- Life window filter membrane aperture
- 0.2μm
- Cage positions
- Coordinate mark for recording
- Control panel type
- Programmable Logic Controller (PLC)
- Material Used for Cages
- PSU/PPSU
- Exhaust Filter Type
- Quick Detachable
- Cage Seal Type
- Double Hollow Medical Silicone Ring
- Cover Buckle Design
- Light Pressure Type Lock Structure
- Aperture of Filter Membrane
- 0.2μm
