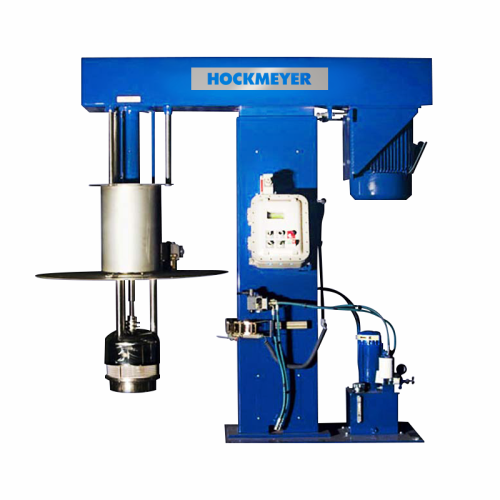

Immersion mill for particle reduction
Achieve streamlined particle size reduction and enhanced mixture homogeneity with immersion milling technology, ensuring consistent quality and rapid processing in liquid formulations.
Processes and Mixes Liquid Formulations Efficiently
The HCP Immersion Mill from Hockmeyer Equipment Corporation revolutionizes particle reduction for chemical and coating industries, utilizing rapid recirculation to achieve uniform particle distribution in liquid formulations. Designed to handle a variety of viscosities, it efficiently processes pigments, emulsions, and polymer suspensions in batch or continuous modes. The mill supports capacities from 250 ml to 800 gallons, seamlessly integrating into existing production lines with its multi-tank capability. Energy-efficient recirculation and variable media sizes minimize solvent use while enhancing color development. Constructed to endure corrosive environments, it offers materials including stainless steel and Hastelloy. Optimized for minimal cross-contamination and ease of cleaning, the system ensures high throughput and reliable performance.
Benefits
- Increases productivity with rapid recirculation, reducing milling time.
- Minimizes raw material loss through high product recovery rates.
- Enhances product quality with precise particle size control and distribution.
- Lowers operational costs by minimizing solvent use and energy consumption.
- Adapts to various production demands with customizable configurations and material options.
- Applications
- Liquid formulations,Coating materials,Fine chemicals
- End products
- Specialty adhesives,Pigment dispersions,Polymer suspensions,Inkjet inks,Emulsions,Lacquer coatings,Varnishes
- Steps before
- Raw Material Preparation,Initial Mixing
- Steps after
- Homogeneous Batch Development,Product Recovery,Cleaning
- Input ingredients
- raw materials,feedstock,slurry
- Output ingredients
- homogeneous batch,smaller particle size,tighter particle distribution,reduced particle size
- Market info
- Hockmeyer Equipment is known for manufacturing high-quality industrial mixing and dispersion equipment. They specialize in ETO solutions for industries like paints, inks, and chemicals, renowned for innovation, reliability, and superior engineering.
- Rapid recirculation speed
- Up to 50 passes per hour
- Batch size (min/max)
- 250 ml / 800 gallons
- Media size
- 0.5 mm to 2 mm
- Particle distribution
- Tight distribution
- Processing time
- Fast
- Material construction
- Various options available
- Particle size reduction
- Smaller sizes achieved
- Contamination risk
- Minimal cross-contamination
- Raw material loss
- High product recovery
- Automation
- High efficiency with small media
- Batch type
- Homogeneous Batch Development
- Working mechanism
- Rapid recirculation milling
- Batch vs. continuous operation
- Batch
- Integrated steps
- Milling and mixing in one tank
- Automation level
- Manual / PLC
- Changeover time
- Minimal
- CIP/SIP
- Easy clean-up
- Particle distribution control
- Tight particle distribution
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Multiple tank positions
- 360º rotation
- Compact footprint
- Yes
- Media size
- 0.5 mm to 2 mm
- Tank shape
- Various capacities
- Discharge method
- Rapid recirculation
- Tank Positions
- Multiple positions with 360º rotation
- Media Size
- 0.5 mm to 2 mm
- Materials of Construction
- Various available
- Batch Size
- 250 ml to 800 gallons (model-dependent)
